[MRCA] PRC-117D Antenna

[Al Klase]

High Mark,

I went back and gauged the threads under magnification.  (Aging
sucks!)   Threads are actually 3/4-16 (UNF).

The inside diameter of the antenna threads should be about 0.670".
That's the minor diameter for 3/4-16 threads.  Hope I got this right,
I'm a hacker, not a professional machinist.

Al

On 9/17/2018 9:59 PM, MilComm Guy wrote:

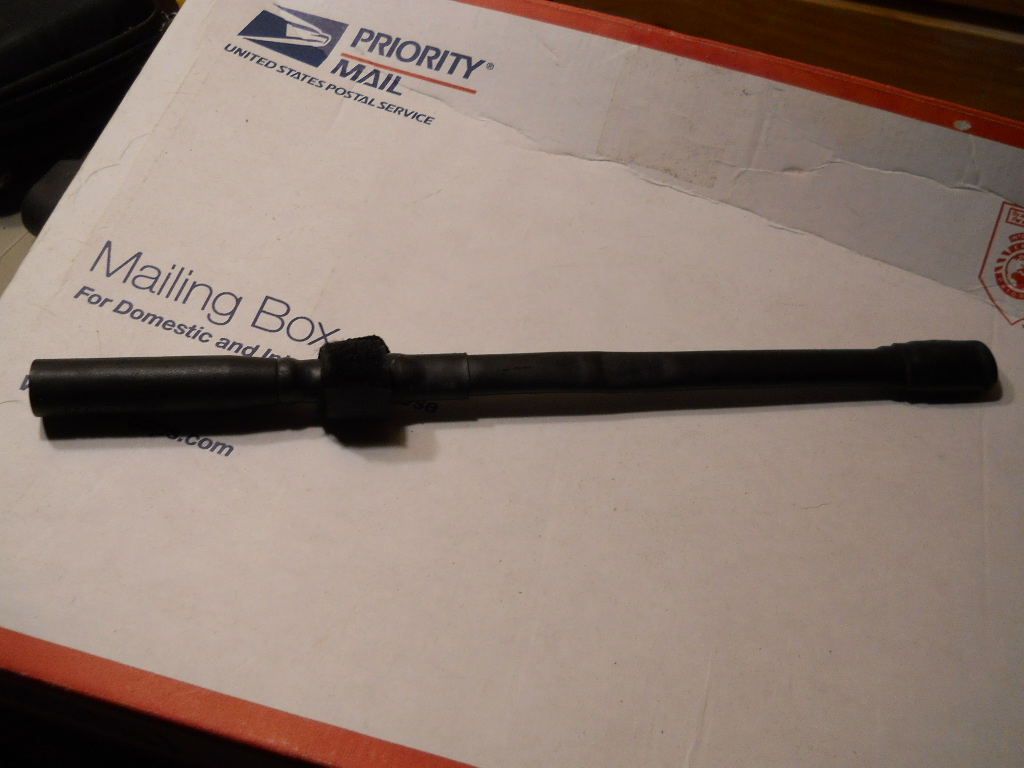

> Al I have a Harris antenna 30-512 MHz it folds in half, it's about 12"
> long, rubber coated marked Harris 12011-2710-01.
>
> DSCN4982.JPG
> DSCN4978.JPG
> Mark
> K1HF
>
> On Mon, Sep 17, 2018 at 9:40 PM Al Klase <ark at ar88.net
> <mailto:ark at ar88.net>> wrote:
>
>     Folks,
>
>     I'm looking for the short "donkey-dick" antenna for this set.
>     Frequency range is 30-90, 118-174 and 225-420.  Mount is similar
>     to Singars (BNC) inside a threaded mount, BUT the threads are
>     smaller, 3/4-14.
>     I'm pretty sure it's a different diameter from the PRC-117F.  Any
>     ideas?
>
>
>
>     Thanks,
>     Al
>
>     --
>     Al Klase – N3FRQ
>     Jersey City, NJ
>     http://www.skywaves.ar88.net/
>
>     ______________________________________________________________
>     MRCA mailing list
>     Home: http://mailman.qth.net/mailman/listinfo/mrca
>     Help: http://mailman.qth.net/mmfaq.htm
>     Post: mailto:MRCA at mailman.qth.net <mailto:MRCA at mailman.qth.net>
>
>     This list hosted by: http://www.qsl.net
>     Please help support this email list: http://www.qsl.net/donate.html
>

--
Al Klase – N3FRQ
Jersey City, NJ
http://www.skywaves.ar88.net/

-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/mrca/attachments/20180918/6d3ddd25/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...

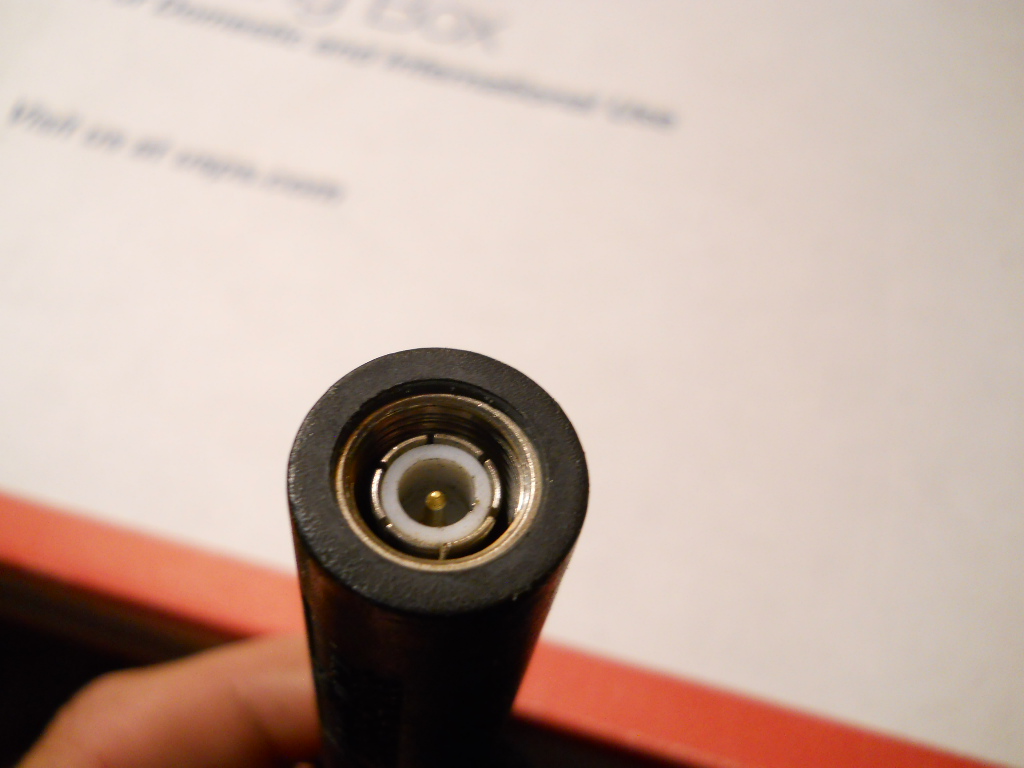

Name: DSCN4982.JPG
