        Well my attempt at checking into the net was a real drill. I was
on  at exactly  net time on 3.570  but could not make out any signals
with my modified QRP transceiver using the simple "Pixie" circuit which
is  crystal controlled on 3.570 Kcs. All I could hear was clicks and I
listened carefully  and realized it was CW keying and that it was Ted's
very strong GRC-19 signal  and the clicks in my audio was being produced
by my "transceivers"   circuit oscillator that was exactly on frequency
thus no audio would be produced by the simple mixer circuit.

          I search my work area for a  a small screw driver  and then
adjusted the crystal frequency slightly and could then pick up Ted and
his transmission now produced a  200 cycle note  in my audio and just in
time to hear the list and that I followed KK1K. I apologize for not
copying the next station K3XXX that I was supposed to hand the net over
to. But Ted picked up on my omission.  KK1K was very strong and  was
slightly off frequency by 100 cycles or so and I easily copied his hand
over to me.

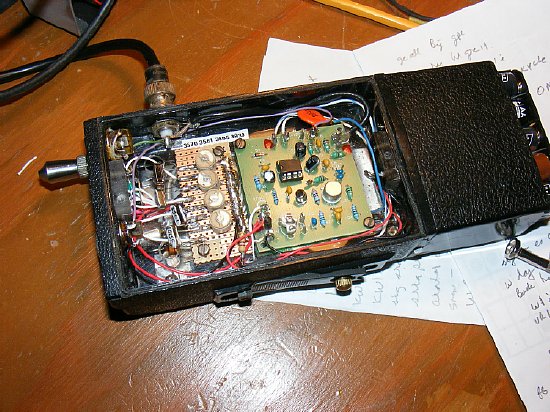

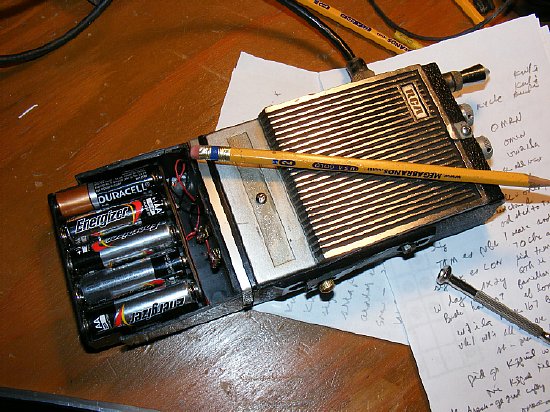

Attached photos (2 ea) , I stuffed an old FM handheld  case and the PTT
on the side was modified to be a CW key. Anyway a check in  to the OMRN
CW net was accomplished running all of 450 mW. Receiver sensitivity is
around 3-5 uV to detect a signal.       :-)

Z
