[MRCA] PRT-4 Battery Rebuild

[B. Smith]

I've been asked about the rebuilding of the PRT-4 battery. When I get a
chance I will try and post photos.

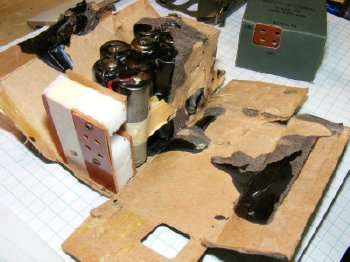

1.  Basically you dissect the original battery and carefully remove the
original cardboard cover and retain the connector  and it styrofoam
mount.  A single edge razor blade comes in handy.

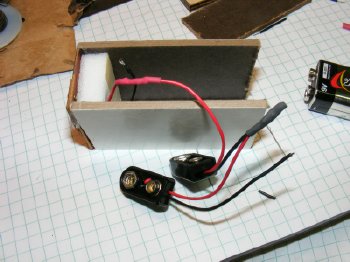

2.  Then build a inner box for strength.

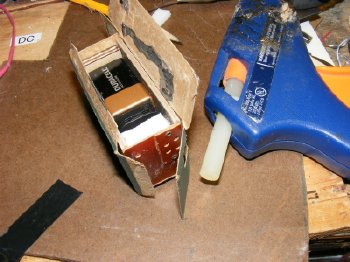

3.  Cover the "inner box" with the original cover, a glue gun comes in
handy.

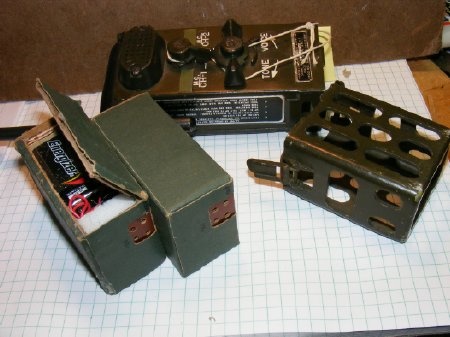

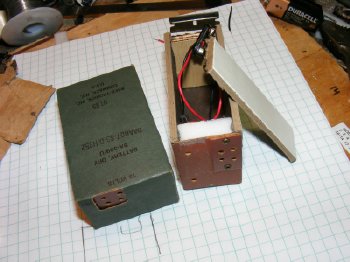

4.  Don't forget to leave a "trap door" for future replacement of the 9 volt
batteries.Its hard to replace batteries when everything is glued tight.

Z
