[MRCA] Moose and Squirrel Net CW Ops

[Al Klase]

Hi Breck,

We'll listen for you, but I'm Morse challenged. I due recognize the
letter E, however.  Also I'll be tied up in another radio event on Saturday.

1500 Hz should be smack in the middle of the passband for most SSB
sets.  The phone company tells us that if you limit the audio bandwidth
to 2000 Hz, intelligibility is impaired by 65%, so 2.7 is about average.

One possible clod in the churn here in Jersey City is that I use a
Timewave audio DSP to try to hear everyone over my S-5 noise level. I'll
have to figure out how to make it not cancel out the steady tones of CW.

Dit-ditty-dit-dit,
Al

On 7/24/2013 7:42 PM, B. Smith wrote:
>
> Lets see if I can get this straight, Thursday and Saturday, I hope
> both days,  I will try and check into the Moose and Squirrel Net using
> slow speed CW. This mode(CW) was authorized with other digitial modes
> in March 2012  with the condition that CW and the new modes be sent on

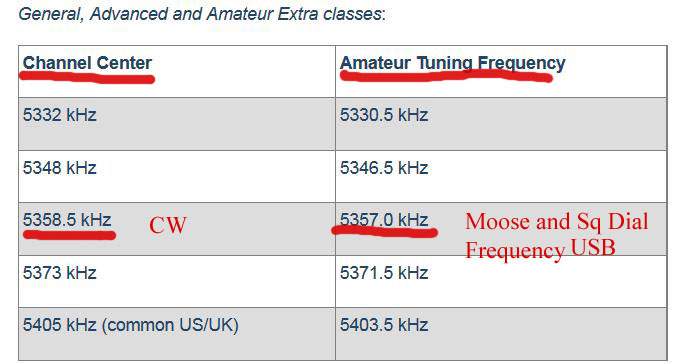

> the "channel center" frequency. Thus for our Moose and Sq channel of
> 5357.0 USB which is the "DIAL" frequency which is off set for audio
> 1.5 Kcs  lower from the  actual "channel center" frequency of 5358.5
> which is the actual  carrier center frequency.
>
> While I am sending CW if you should hear a tone of approx 1500
> cycles.     :-)      As you tune lower  in frequency the  audio pitch
> on your transceiver which is on USB should  increase in frequency.  As
> you tune higher in frequency  the pitch should decrease in frequency.
> Confused yet?
>
> The main  purpose is to see if the 1500 cycle CW signal will be within
> the pass band of the typical military SSB transceiver.
> Z
>
>
>
>
>
>
>
> ______________________________________________________________
> MRCA mailing list
> Home: http://mailman.qth.net/mailman/listinfo/mrca
> Help: http://mailman.qth.net/mmfaq.htm
> Post: mailto:MRCA at mailman.qth.net
>
> This list hosted by: http://www.qsl.net
> Please help support this email list: http://www.qsl.net/donate.html

--
Al Klase - N3FRQ
Jersey City, NJ
http://www.skywaves.ar88.net/
