[Milsurplus] ART 13 mount completed and a parts request

[Michael Hanz]

Very nice job, Charlie!  I don't blame you a bit for making mods to the
sketches at https://aafradio.org/garajmahal/ART-13_mounts.html .
Improvisation is what it's all about for us, 80 years later.

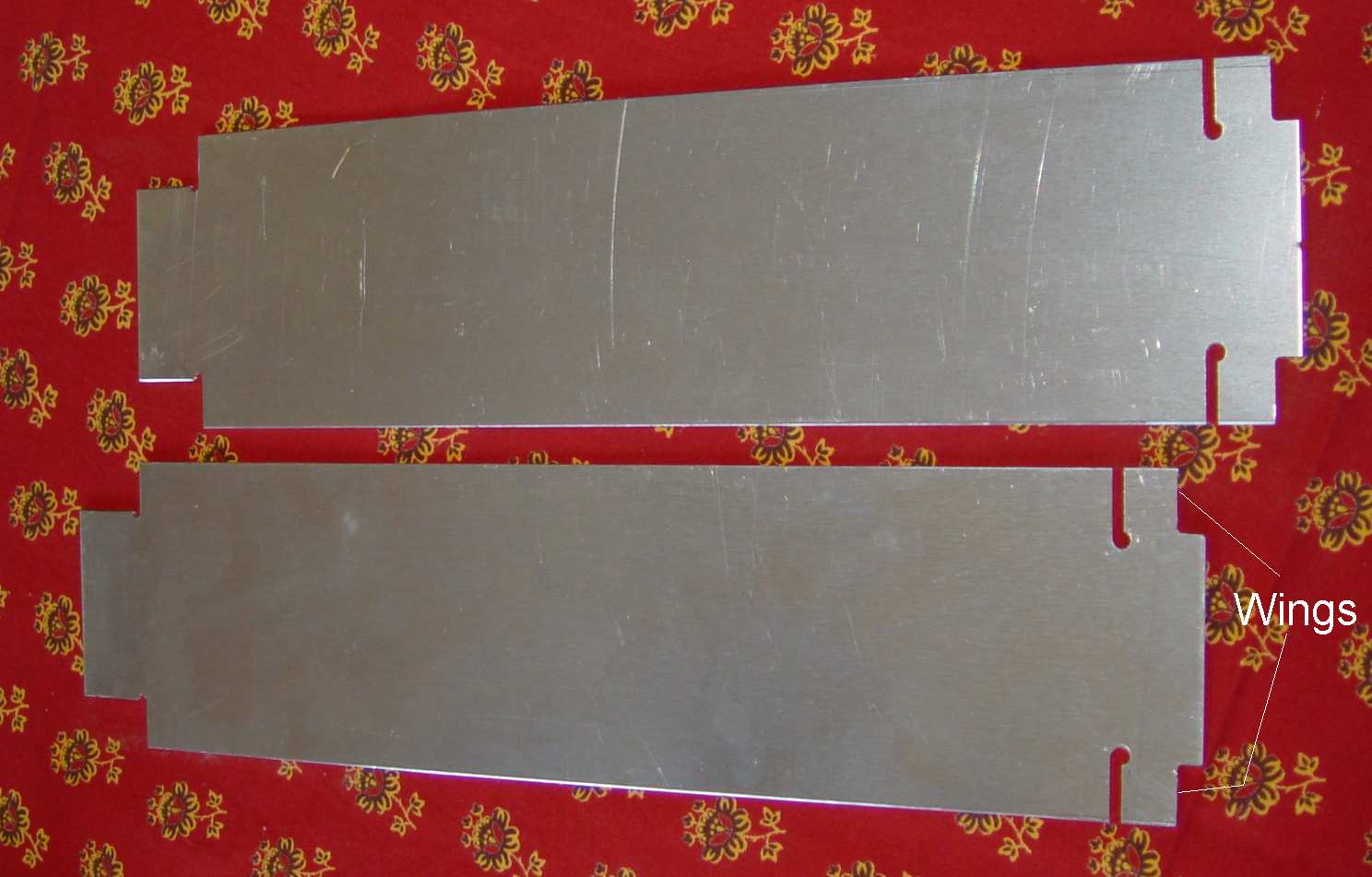

Coincidentally I was reorganizing some of my boxes-o-stuff last week,
and ran across a pair of flat panel layouts I had forgotten that I had
fabricated, using .063" 5052-H32 aluminum.  If anyone can use them, they
can have them for $15 plus postage for 15oz. from 22942.
  (U trim & bend using the second sketch at
https://aafradio.org/garajmahal )/ART-13_mount_fabrication_sketches.html )
    73,
- Mike  KC4TOS



On 10/18/2024 1:17 PM, CL in NC via Milsurplus wrote:
> Does anybody have an intact and nicely labeled front cover panel for
> the ART 13 TU they are willing to part with? Does anybody know of a
> restorer that can redo that part, paint and labels?
>
> I finished my home made mounts for the ART 13, I hope the pix make it,
> and believe the number is MT284. There were 2 mounts I know of, one
> that was a pan with shock mounts, MT198 I think, and one as many have,
> a pan bolted to the bottom of the ART 13, MT283. The MT284's were
> bolted to the aircraft and the ART 13 with its MT283 set on it and was
> secured. Found these plans at AAFRADIO, but cheated. I had purchased a
> few mounts of various kinds from Fair Radio years ago to be able to
> get the hold downs and shock mounts from them for the B17 project when
> needed. So, instead of making my own as in the plans, just retrieved a
> couple that were the proper size. I also did not build the custom pin
> guide for the back out of stainless. This required two parts and to be
> secured by peening over such that it had some play in the hole it was
> mounted in. I have a lot of 1/4 shaft bushings that simpulated that
> just fine and were a perfect fit for the pins. The hardest part was
> bending the .063 aluminum, neither my brake nor my sons would do it,
> but I did get the bends started, and finished up using 3" X 1/4" thick
> angle iron pieces to finish them up. So, I am ready now for any
> flights or earthquakes.
>
> Charlie
