Howdy,

I'm going by memory here, and it's about 45 years since I last did
this.  However, I think the procedure you want isn't in the T-195
manual, but rather the -35 manual for the AN/GRC-46, which
unfortunately, I no longer have.  But I recall it was pretty obvious

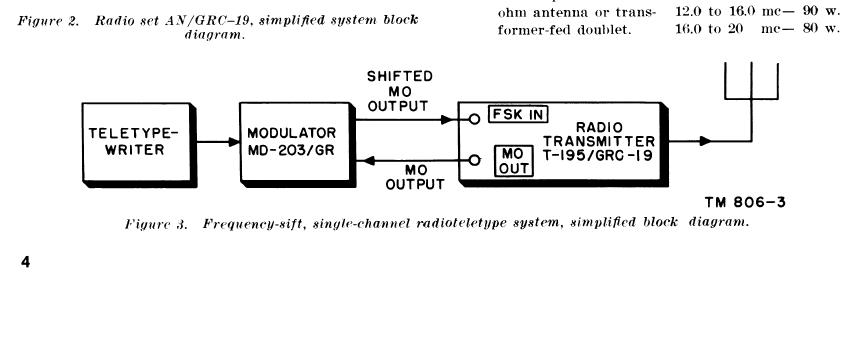

once you get inside the transmitter.   Two internal T-195 cables are
swapped to route the MO output to the front panel MO OUTPUT, and route
the front panel FSK IN jack back to the exciter/multiplier RF input.
One cable is in a stowage position, linking the FSK IN jack to the MO
OUT jack for non-FSK operation.  You just disconnect and reroute one end
of this cable to the exciter RF input, and connect the exciter end of
the MO output cable to the  "stowage" connector on front panel main
frame, thus routing the MO to the front panel.

We can deduce the procedure by looking at the T-195 manual, TM11
5820-335-35 (available on-line).  Referring to schematic, Fig. 2-82.1,
and Subchassis Interconnection Cabling Diagram, Fig.  2-81:

1. Locate stowed cable running from FSK IN connector J613 to main frame
connector J620 and disconnect P601 from J620.

2.  Disconnect MO output cable connector P801 from exciter chassis RF
input connector J101.

3.  Reroute cable to connect P601 to J101.  This routes FSK from the
MD-203 back to the exciter input.

4.  Reroute MO output cable to connect P801 to J620 at the main frame.
This routes MO output to the MD-203.

Hope this helps.

73,

John K9WT

On 3/7/2023 9:30 AM, B. Smith wrote:
> Is there a procedure in the manual for internal cable connections for
> the  FSK and MO connectors  on the front of the T-195? These
> connections are needed to activate the FSK and MO BNCs on the front.
> I don't see any spare internal cables in my T-195.
> k4che
>
>
>
