Here for the archive of anyone who might care to save them, are photos of
the output transformer for the RCA AR-8503, Navy type RAZ  vlf-lf receiver.
Photos of this thing are not seen in the manual, altho the use of such
transformer is discussed. I was rather surprised at the impedance transformation
ratio.
-Hue Miller
-------------- next part --------------
A non-text attachment was scrubbed...

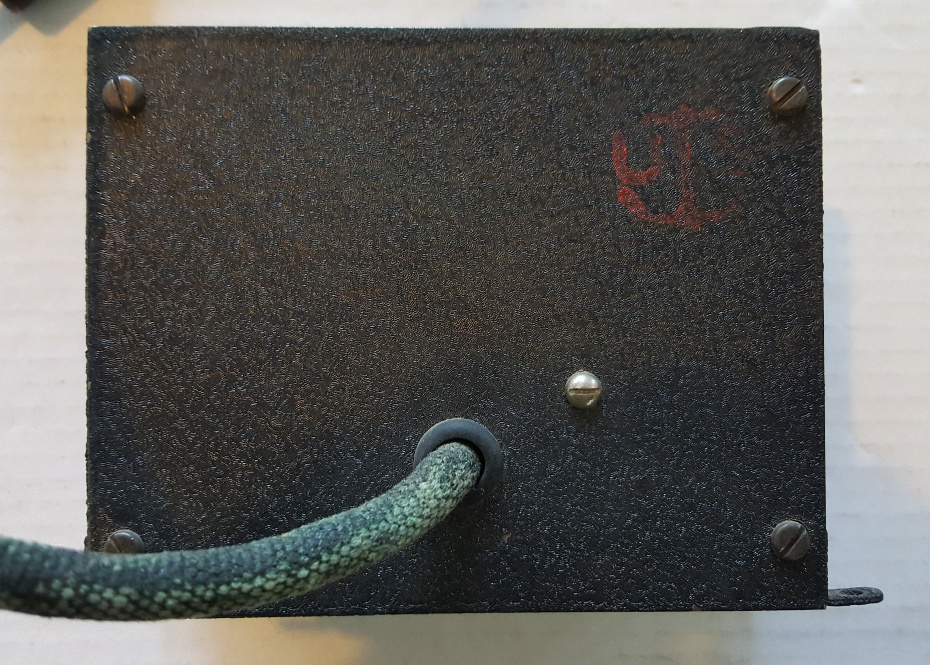

Name: back with Navy stamp.jpg
Type: image/jpeg
Size: 301635 bytes
Desc: back with Navy stamp.jpg
URL: <http://mailman.qth.net/pipermail/milsurplus/attachments/20230418/08374fe2/attachment-0003.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...

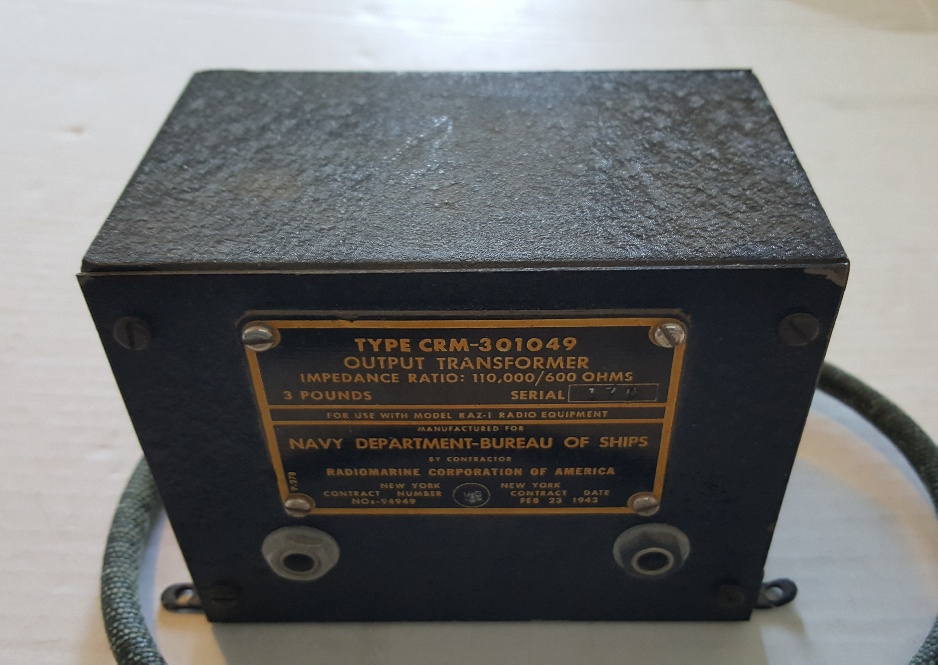

Name: RAZ ouitput transformer overall .jpg
Type: image/jpeg
Size: 188032 bytes
Desc: RAZ ouitput transformer overall .jpg
URL: <http://mailman.qth.net/pipermail/milsurplus/attachments/20230418/08374fe2/attachment-0004.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...

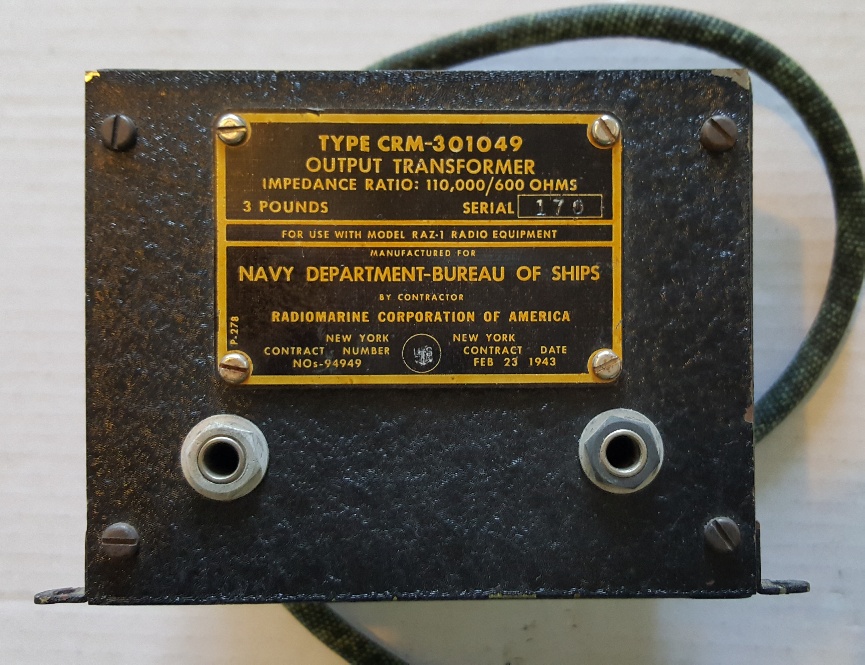

Name: RAZ transformer front with nameplate .jpg
