[Milsurplus] ART-13 Mystery Resistor

[Michael Hanz]

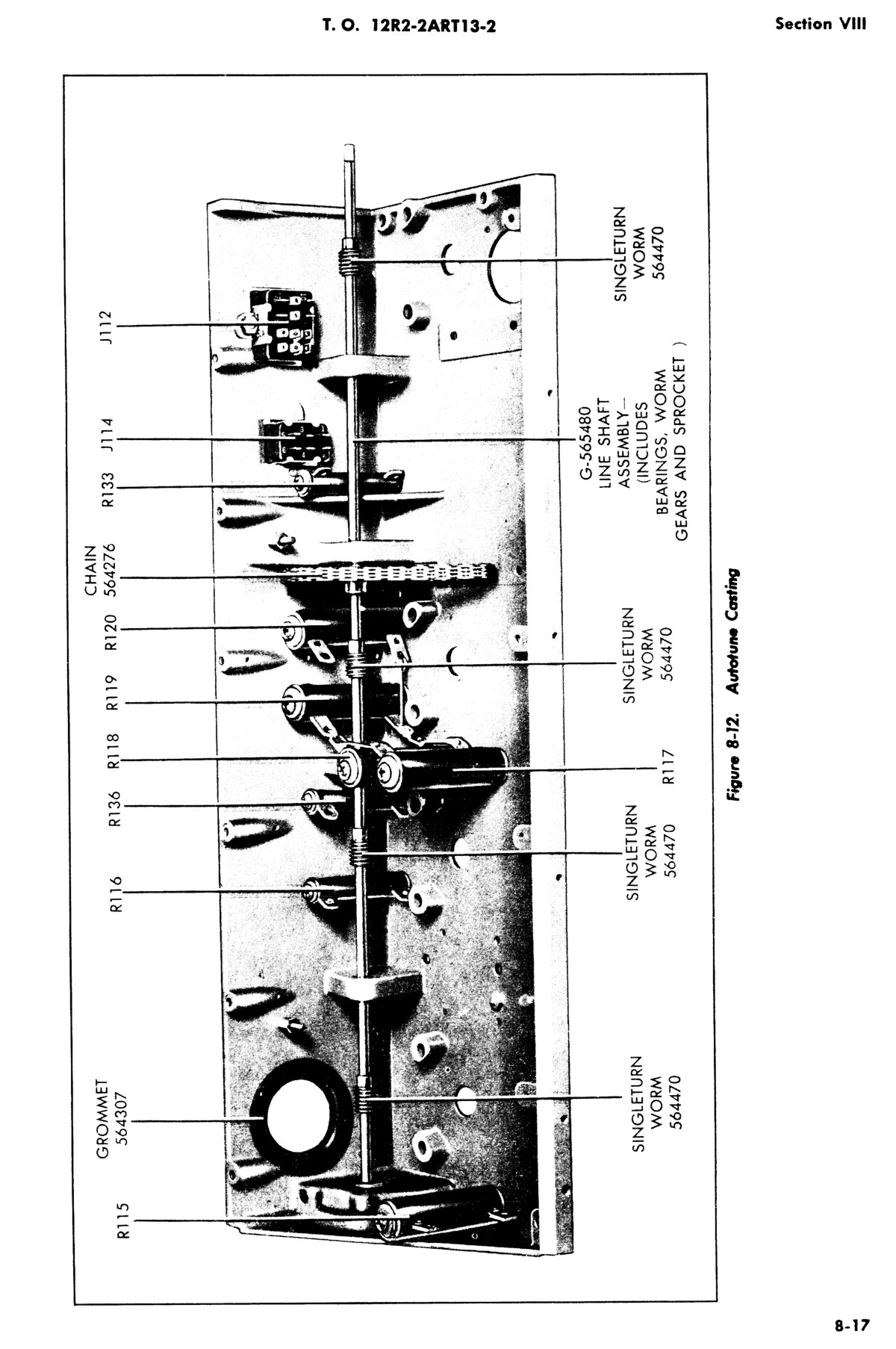

Page attached.
- Mike  KC4TOS

On 4/14/2021 4:00 PM, B. Smith wrote:

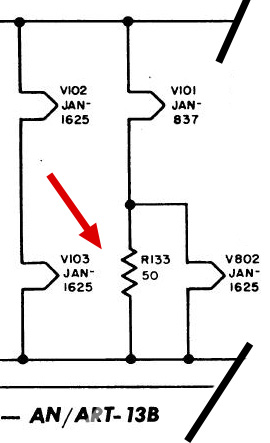

> Can anyone advise me of  the physical location of resistor R-133 on
> the chassis.  It is used in the filament chain of the oscillator and
> multiplier of the ART-13. Listed as a 10 watt filament  resistor.  And
> yes I am aware of the  chassis views published in the -2 and -5.
> Perhaps I need a  better set of glasses.
> k4che
>
