[Milsurplus] ART-13 Mystery Resistor

[Mike Feher]

Pull out V101 and V802 and put 10 or so volts on pins 1 & 7 of V802. That should dissipate 2 watts in R133, and you should be able to feel which resistor. 73 – Mike  gets hot.



Mike B. Feher, N4FS

89 Arnold Blvd.

Howell NJ 07731

848-245-9115



From: milsurplus-bounces at mailman.qth.net <milsurplus-bounces at mailman.qth.net> On Behalf Of B. Smith
Sent: Wednesday, April 14, 2021 4:01 PM
To: Milsurplus <milsurplus at mailman.qth.net>
Subject: [Milsurplus] ART-13 Mystery Resistor

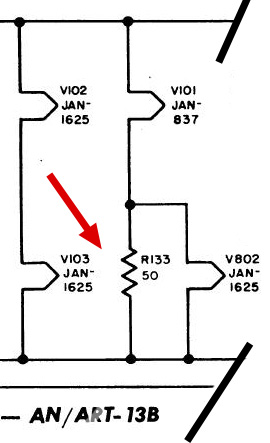

Can anyone advise me of  the physical location of resistor R-133 on the chassis.  It is used in the filament chain of the oscillator and multiplier of the ART-13. Listed as a 10 watt filament  resistor.  And yes I am aware of the  chassis views published in the -2 and -5. Perhaps I need a  better set of glasses.
k4che
