[Milsurplus] One more for the GRC-9

[jphutch60bj]

try this no bending needed:

https://www.grainger.com/product/39P458?gclid=EAIaIQobChMI3Je8tu6r7QIVrYFaBR3X4AWvEAQYBCABEgIctfD_BwE&cm_mmc=PPC:+Google+PLA&ef_id=EAIaIQobChMI3Je8tu6r7QIVrYFaBR3X4AWvEAQYBCABEgIctfD_BwE:G:s&s_kwcid=AL!2966!3!281698275483!!!g!469738748142!&gucid=N:N:PS:Paid:GGL:CSM-2295:4P7A1P:20501231

  * Item Miniature LED Lamp
  * Overall Bulb Shape T
  * Bulb Shape T3-1/4
  * Overall Bulb Base Type Miniature Bayonet
  * Bulb Base Type Miniature Bayonet (BA9s)
  * Light Technology LED
  * Lumens 10
  * Wattage Equivalency 0.3W INC
  * Watts 0.3W  <--
  * Voltage 6V AC <--
  * Trade Number L1006MB-W
  * Bulb Primary Application General Purpose
  * Bulb Type Miniature
  * Light Appearance 5000K and Above, Daylight
  * Indoor/Outdoor Usage Indoor Only
  * Dimmable No
  * Light Color White
  * Bulb Housing Glass
  * Bulb Dia. 7/16 in
  * Overall Length 1 13/64 in
  * Rated Life 20,000 hr
  * Amps 12mA
  * Bulb Power Source Direct Wired
  * For Enclosed Fixtures No
  * Green Environmental Attribute Product Contributes To Reducing Energy
    Consumption



On 11/28/2020 9:19 PM, Hubert Miller wrote:
>
> I was putting away things tonight including some LEDs when it occurred
> to me, I just
>
> have to try this. The GRC-9 lamp is bayonet socket. You can buy an LED
> bulb in similar
>
> size but screw base. If you take needle pliers and bend the top tab of
> the bayonet holder,
>
> that tab just above the two nibs on the bayonet bulb, bend this tab
> ever so slightly in,
>
> the LED bulb can force fit into the socket, even without using its
> threads. This lamp
>
> delivers a warm white light, much better than the original feeble #49
> bulb, and draws
>

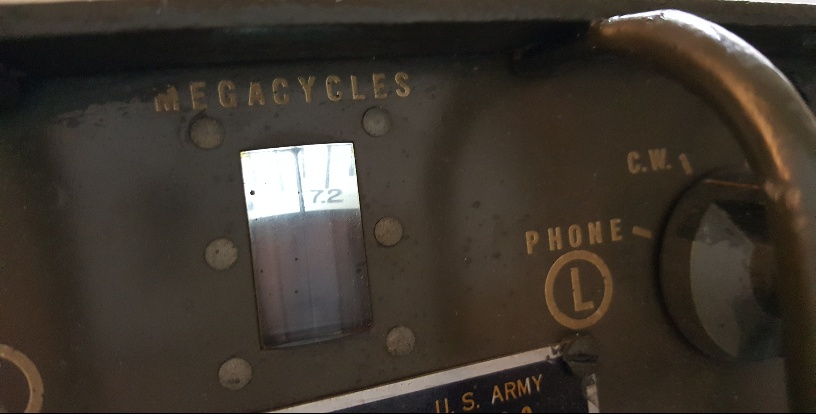

> 80 mA.  This photo was done in darkness. Recommended for rear – area
> usage only.
>
> -Hue Miller
>
> A picture containing car, sitting, meter, close Description
> automatically generated
>
>
