[Milsurplus] Unknown Transceiver

[MICHAEL BITTNER]

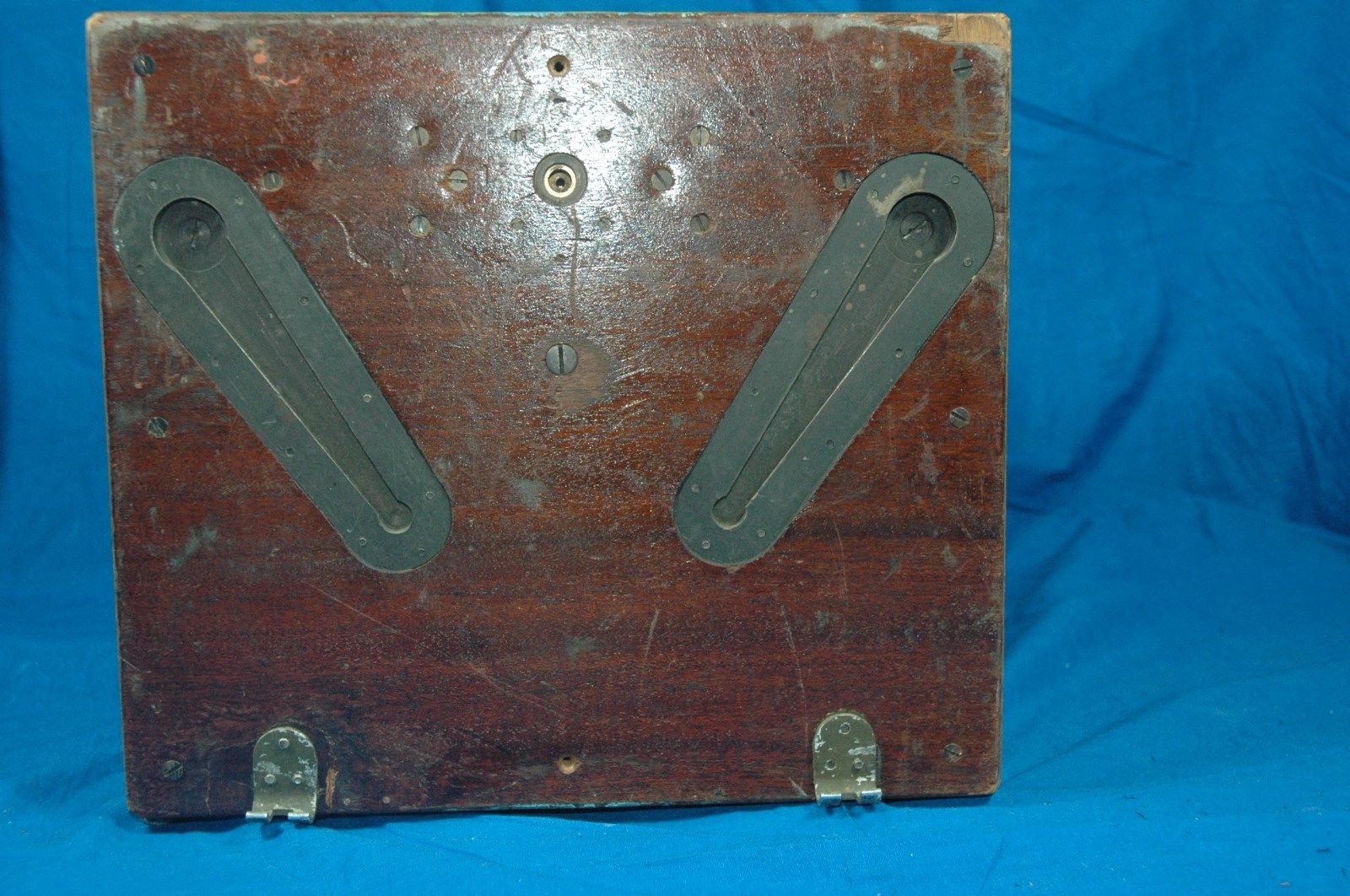

Upon closer examination, the set in the truck photo appears to be the same as the one in the manual from Radionerds and is a BC-9.  Note the relatively shallow angle at which the angled portions of the loop project from the back of the cabinet.  Note the much steeper angle of the loop attachment slots in the attached photo of the back of a BC-9-A. None of the specs show an actual photo or drawing of the actual antenna for a BC-9-A, only the BC-9.  Mike, W6MAB


> On December 14, 2020 at 2:09 PM Mike Morrow <kk5f at earthlink.net> wrote:
>
>
> To me, that truck BC-9-A appears configured exactly like the photo of the set as shown in the SCR-77-B Instruction Book (Radio Communications Pamphlet 43, April 1925).
>
> The earlier SCR-77-A used the BC-9 (not -A) that has very significant technical differences, but it uses the same loop type LP-2 as the BC-9-A
>
> I am missing what detail in the truck photo violates the standard set configuration.
>
> Mike / KK5F
>
> -----Original Message-----
> >From: mmab <mmab at cox.net>
> >Sent: Dec 14, 2020 11:19 AM
> >
> >Thanks to those who responded to my question about the attached photo.
> >Yes, it must be a BC-9A and the loop sections that attach to the back of
> >the set must be bent downward to fit in the slots provided there.  I
> >have searched the internet and found many photos of the BC-9A box, but
> >except for the attached photo, I have found none showing the antenna.
> >Does anyone know of a reference that shows the exact dimensions and
> >construction of the antenna?
-------------- next part --------------
A non-text attachment was scrubbed...
Name: BC-9A.jpg
Type: image/jpeg
Size: 284438 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/milsurplus/attachments/20201214/69e916d4/attachment-0001.jpg>
