[Milsurplus] Change M-1 for BC-347-A ?

[Michael Hanz]

On 2/12/2019 3:49 AM, Hubert Miller wrote:
>
> So what is the Change 1 ? Is it the 4 drain holes added to the back ?
> This stamp seen on 2 units; one with same holes does not have the stamp.
>

All the BC-347-* amps I have ever seen have holes in the back, Hue. Some
even have a couple of holes in the front edges as well.

The difference between BC-347-A and BC-347-A (Modified) can be seen in
the schematics below - the change is in the grid resistor

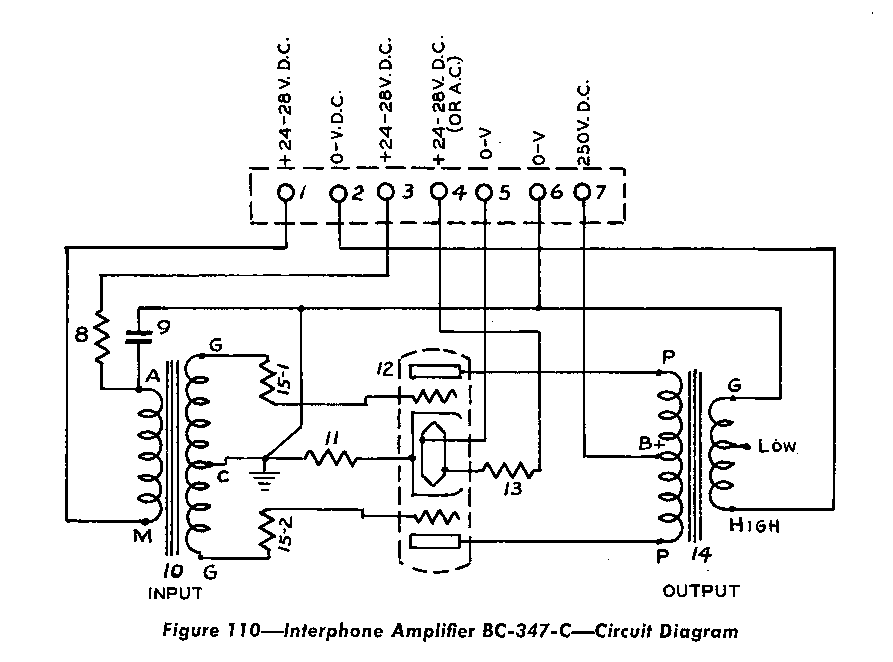

configuration.  For contrast the BC-347-C is also shown at the bottom,
with yet a different grid resistor approach.  The BC-347-A (modified)
was considered functionally equivalent to the BC-347-C.







-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/milsurplus/attachments/20190212/24988ae4/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...

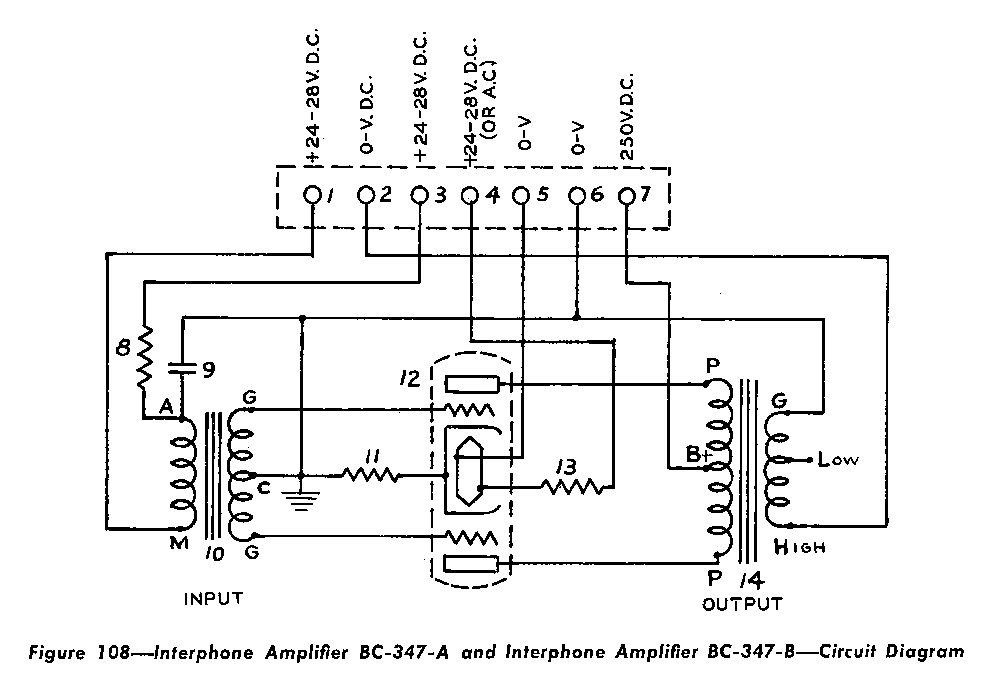

Name: BC-347-A Unmodified.png
Type: image/png
Size: 17691 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/milsurplus/attachments/20190212/24988ae4/attachment-0003.png>
-------------- next part --------------
A non-text attachment was scrubbed...

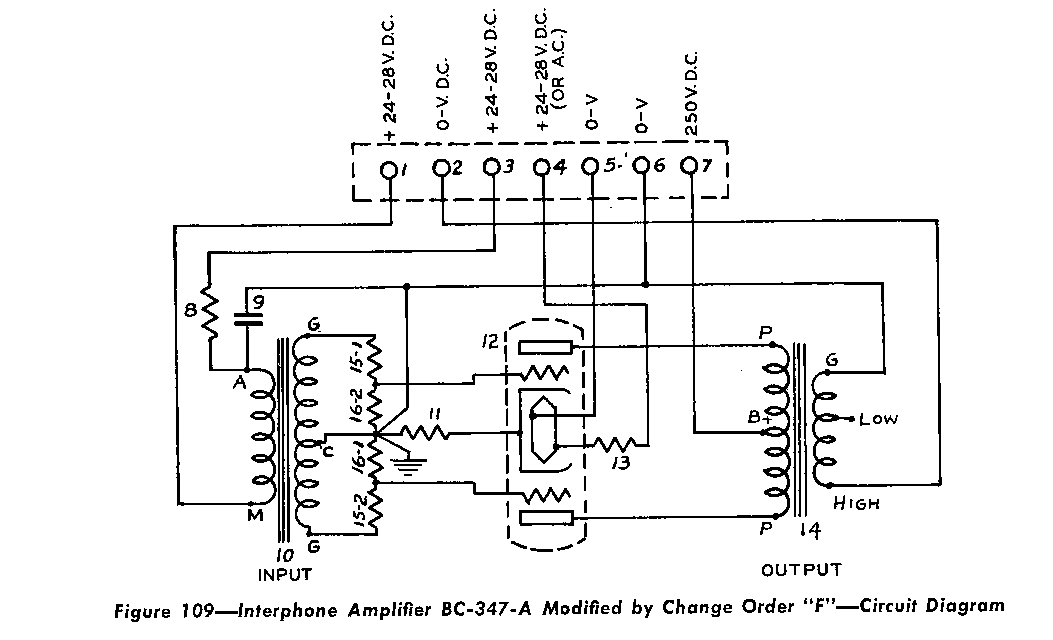

Name: BC-347-A Modified.png
