[Milsurplus] 2-pin German headphone plug source ?

[Al Klase]

Hue,

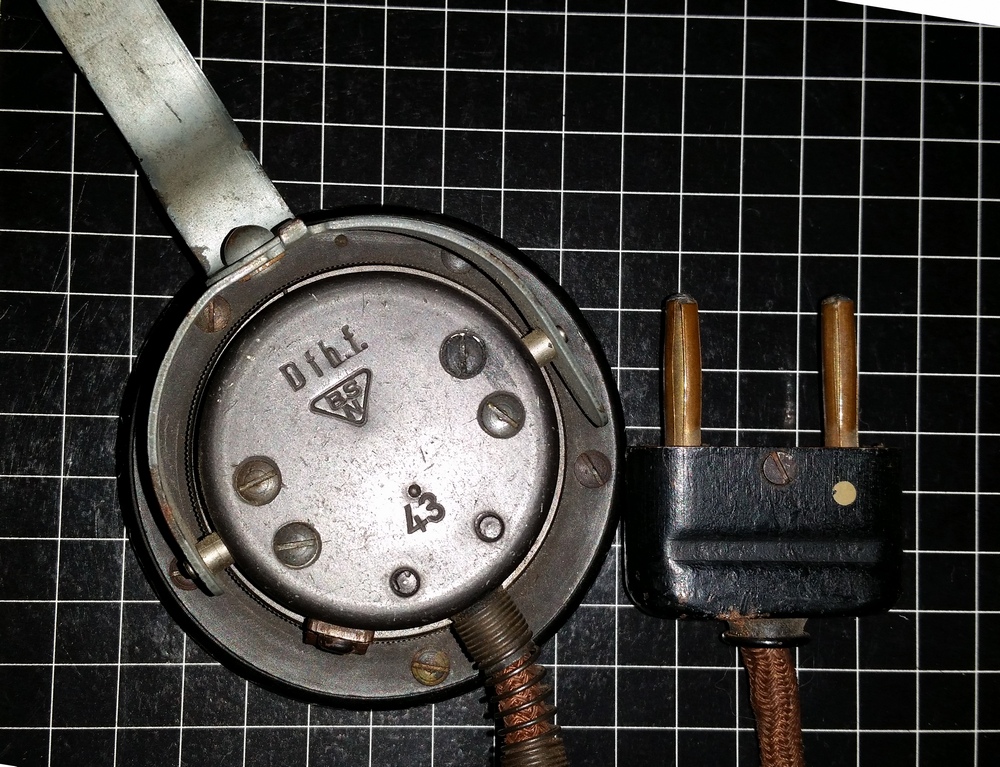

I have this, presumably German, headset in my collection.



The plug is stamped "3/3" between the pins.  It can't be a coincidence
that the pins are on 19 mm centers.  A standard dual-banana plug is a
pretty good fit in the jacks on my Torn.E.b.

VY 73,
Al

On 9/27/2017 7:17 PM, Hubert Miller wrote:
> Heinz - thanks for your considerate offer, but, truthfully, I need more than one, maybe about 8 to start with, so I'm happy to buy these, if I can find a source.
> Also, I mention that I often see WW2 German headphones on Epay where the last owner cut off the original connector, which severely drags down the sale
> value. So there is a market, I'm sure, for a continued supply of these, if we can find one.
> I do have several old German radio receivers so I would prefer to use the original connector on my headphones altho  one can use alligator clips or some
> other workaround.
> I was thinking maybe old USSR - East Bloc used the same 2-pin connector?  If so - that would be a source ?
> Wenn ich diesen Teil suchen will, wie sol ich den nennen? Wie heisst er ?
>
>
> To: Hubert Miller
> Subject: Re: [Glowbugs] Jones Push-Pull Transmitter?
>
> Hello Hubert,
> the headphone connector you are looking for has two 4mm banana plugs 19mm apart (center to center).
> I seem to remember that these were made by Hirschmann and probably other manufacturers as well and were quite common about 50 years ago.
> I will check if I have one.
>
> vy 73 Heinz DH2FA, KM5VT
>
> Von meinem iPhone gesendet
>
> Am 27.09.2017 um 22:56 schrieb Hubert Miller <mailto:Kargo_cult at msn.com>:
> 143 lbs. is a about 2x my threshold of pain. I do have a German KWEa and LWEa receivers which are around 80 lbs but no more
> heavy sets are coming here.  I do understand the attraction though. If the emotional  delight-factor is great enough, the
> formula  ( Delight factor ) /( weight )   ratio  is still favorable.
>
> When I was up in Seattle area last month I was going to bring back an RAL to sell. But when I looked at it, the grey wrinkle finish
> looked so good I decided, I have to keep this one! It is big, but kind of a 'creampuff', lots of air inside and it doesn't hurt to lift it
> at all.
>
> Cris – or anyone – who knows of a source for the ( German? European standard ? ) 2-banana pin headphone connector ? It is very
> common with old German headphones, that an American owner removed the 2-pin plug and replaced with a ¼ inch phone plug,
> or no plug at all, just bare wires.
> -Hue
> ______________________________________________________________
> Milsurplus mailing list
> Home: http://mailman.qth.net/mailman/listinfo/milsurplus
> Help: http://mailman.qth.net/mmfaq.htm
> Post: mailto:Milsurplus at mailman.qth.net
>
> This list hosted by: http://www.qsl.net
> Please help support this email list: http://www.qsl.net/donate.html

--
Al Klase – N3FRQ
Jersey City, NJ
http://www.skywaves.ar88.net/
