[Milsurplus] T-24-D Microphone

[Al Klase]

Hue,

My set ran 14 9-volters for B+, 2 D-cells for filaments, and 9
double-A's for bias and relay.

Yes, radiation from the super-regen detector is substantial.  Frank C.
Jones would be proud.  Our maximum range was just beyond shouting distance.

*The Original Walkie-Talkie*
A Fort Monmouth Development



- SCR-194/BC-222 - 27.7-52.2 MC (Artillery)
- SCR-195/BC-322 - 52.8 - 65.8 MC (Infantry)

- Proposed: 23 June 1932
- Tested: 1934
- Authorized: 18 January 1937
- Used in major maneuvers 1939.

- Weight: 25 pounds

- Range:  Up to 5 miles

- Back-pack and Vehicular Configurations

- Two Vacuum Tubes

- Armstrong Super-Regennerative Receiver

- Q:  Is it AM or FM?   A:  Yes.



Do visit our museum when in NJ: http://www.rtm.ar88.net/


Al Klase – N3FRQ
Jersey City, NJ
http://www.skywaves.ar88.net/

On 10/5/2016 12:29 AM, Hubert Miller wrote:
>
> The set uses a bunch of inconvenient voltages. How did you power them up?
>
> BTW, did you notice where it says in the manual about a SCR-194/195
> “network” being limited to only 1 other set; if >2, they
>
> interfere with each other.
>
> tnx-
>
> Hue
>
> >We managed a QSO between two SCR-195 at the recent MRCA meet in
> Gilbert, Pa.  These were the original "walkie-talkies."
> Al
>
> Al Klase – N3FRQ
> Jersey City, NJ
> http://www.skywaves.ar88.net/
>
>
> ______________________________________________________________
> Milsurplus mailing list
> Home:http://mailman.qth.net/mailman/listinfo/milsurplus
> Help:http://mailman.qth.net/mmfaq.htm
> Post:mailto:Milsurplus at mailman.qth.net
>
> This list hosted by:http://www.qsl.net
> Please help support this email list:http://www.qsl.net/donate.html

-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/milsurplus/attachments/20161005/df851aa4/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: SCR194.JPG
Type: image/jpeg
Size: 39218 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/milsurplus/attachments/20161005/df851aa4/attachment-0001.jpe>
-------------- next part --------------
A non-text attachment was scrubbed...

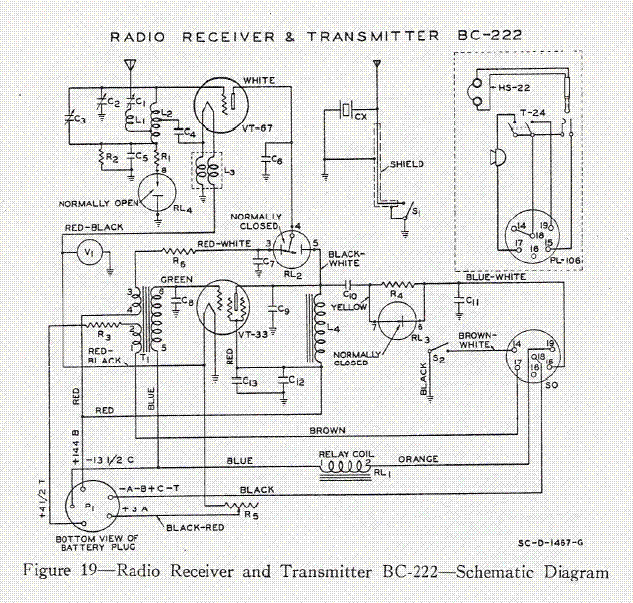

Name: Schematic.GIF
