Ah yes, having to achieve a level match that way sounds like a recipe for
fuzzy audio.  Volume controls at their extreme lowest position are
notoriously unstable with regard to the level they pass.

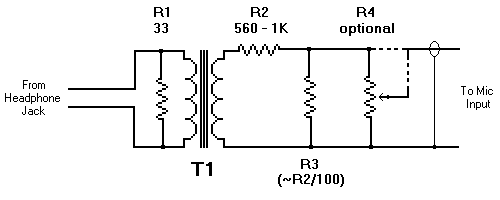

The R.S. isolation transformer is a good thing to have, and just a few
resistors should be enough to do the trick (see attached).  A 33 ohm in
parallel with the computer side of the transformer will provide a reasonable
match so far as the sound card is concerned, since a lot of devices nowadays
accomodate 32 ohm phones.  On the radio side of the transformer, a 560 to
1000 ohm resistor in series with one of about 1/100th of that resistance
would provide enough attenuation (40 dB) to get you into the ballpark for
mic level.  You can play with R3 if you need more or less level.  An audio
taper pot or even just a trimmer pot of 1K to 10K across the small resistor
would give you even more adjustment range...but it probably wouldn't be a
necessity since you have the means to adjust both the soundcard output and
the transceiver input gain.

John
