[Lowfer] Daytime lowfers MP and EAR - eprobe vs 10ft loop

[Garry Hess]

This morning was relatively quiet, despite local rain and both MP and
EAR were received reasonably well, via both an e-probe and a 10'

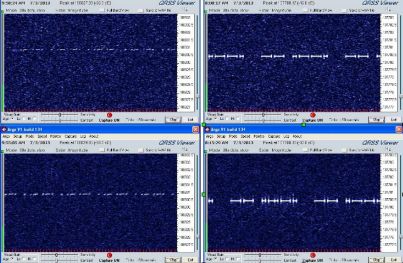

shielded loop. The attached file is very compressed, with the e-probe
cases on top, taken with SDR-IQ #1 and a Dell E521. 10' shielded loop
results are on the bottom, taken with SDR-IQ #2 and a laptop. EAR
results on the left; MP results are on the right. The capture times are
fairly well matched but the sensitivity/contrast is lower by one "tick"
for the 10' loop. I'll look into adding a full-size image to the LWCA
"Reception & Loggings" community forum.
--
73, Garry, K3SIW, EN52ta, Elgin, IL
-------------- next part --------------
A non-text attachment was scrubbed...
Name: capt1_resize.jpg
Type: image/jpeg
Size: 32414 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/lowfer/attachments/20130703/43d334ab/attachment.jpg>
