[K3VOA] 40 Meter Beam Plots

[Ken Claerbout]

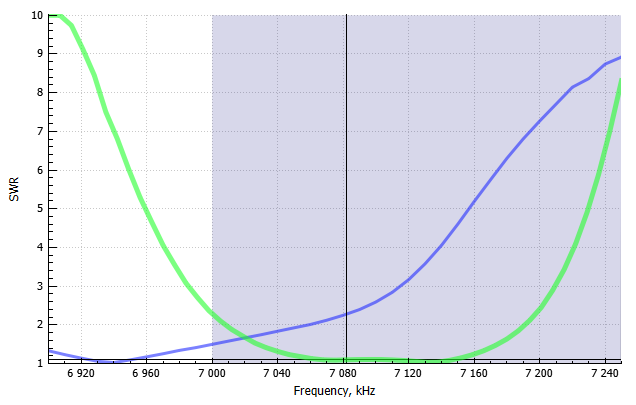

Martyn asked how the SWR curves looked with the beam about 5' off the ground vs. at 45'.  The graph is attached.

The Blue graph is at 5'.  The green at 45'.
