[GreenKeys] Another Museum Piece-Parts Needed

Thu Nov 6 19:31:20 EST 2025

Duncan. That's it! The two pieces on top of the 0-120 scale that are
held by the two rear screws on my unit are missing, however. Not a
big deal. If I can't find a replacement, I think I can make up pieces to
reattach the scale.

Mystery solved. The difficult part is now to replace the bent/broken
studs on the selector that holds the mechanism. Lots of tiny pieces to
not drop.
73, John W1AN.

On 05-Nov-25 20:45, Duncan Brown wrote:
> John,
>
> My pictures are of a M14BA unit and my not be quite the same as your
> M14BR, but here are a couple.
>
> Have you looked for a manual at https://navy-radio.com/manuals-ttycorp.htm?
>
> Good luck,
>
> Duncan
> K2OEQ
>
>
> On 11/5/2025 7:45 PM, John Spigel wrote:
>> Duncan, unfortunately the mounting ends of the scales cast piece are
>> broken off and missing. Also I can't tell where the screws in the
>> middle of the cast piece attach. If you have pics, that may help
>> answer the questions.
>>
>> 73, John W1AN
>>
>> On 05-Nov-25 15:47, Duncan Brown wrote:
>>> John,
>>>
>>> The M 14BA & BR tape printers with external Range control were
>>> typically used in telephone company TTY test boards, so that they
>>> could easily test for distortion on the line.
>>>
>>> Do you have the full cast aluminum scale that is broken?  If not, I
>>> have some pictures of similar units that might help in reproducing
>>> the scale.
>>>
>>> 73, & have fun,
>>>
>>> Duncan Brown, K2OEQ
>>> USASA    31J30
>>>
>>> Antique Wireless Association
>>>   Communication Technologies Museum
>>>     Asst. Curator, Commercial Equipment
>>> (also chief TTY op & repairman)
>>>
>>> i-Telex: 212503
>>>
>>> www.antiquewireless.org
>>>
>>> Virtual AWA Museum TTY Tour: https://www.youtube.com/watch?v=TpB6jM90VV8
>>>
>>>
>>>
>>> On 11/5/2025 3:13 PM, John Spigel wrote:

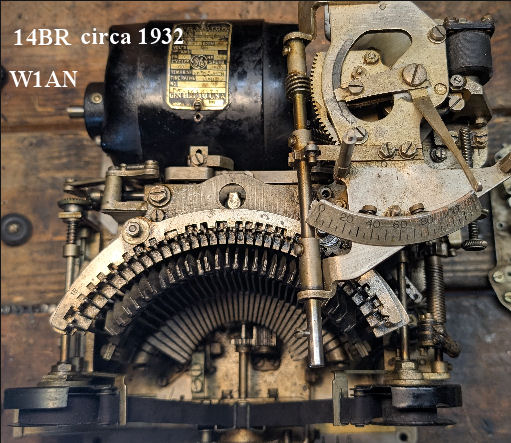

>>>> I have another Teletype Corp museum piece on the bench. It's a 14
>>>> style tape printer with financial pallets and KB. It uses 3/8" tape.
>>>> Probably from a stock broker. The pinion gear has no stamp but
>>>> appears identical to another I have for 60WPM. The cabinet has a
>>>> wood grain finish although in tough shape.It has a 1932 date stamp.
>>>> Switches for 20/60 ma loop and polar/local are brought out nicely to
>>>> the front as is a "knob" for adjusting the range. The range control
>>>> is elegantly geared and there is a cast aluminum scale and pointer
>>>> at the front of the cabinet. Along with a few other parts, some
>>>> missing por broken on the selector mechanism the cast aluminum scale
>>>> is also broken. This can be seen in the photo here:
>>>>
>>>> https://w1an.com/photos/equipment/14BR-newsm.jpg
>>>>
>>>> I'm sure I can get this working without the scale but best would be
>>>> to have the 14BR parts manual and a bit of luck. Some 3/8" tape
>>>> would be nice to have also.
>>>>
>>>> Thanks!
>>>> 73, John W1AN
