[GreenKeys] Model 28 ticker notes

[John Spigel]

Good document for the 28 stock ticker from our reliable source:

https://www.navy-radio.com/manuals/tty/jh/ttyman3/TeletypeManuals/model28/573-140-100TC.pdf

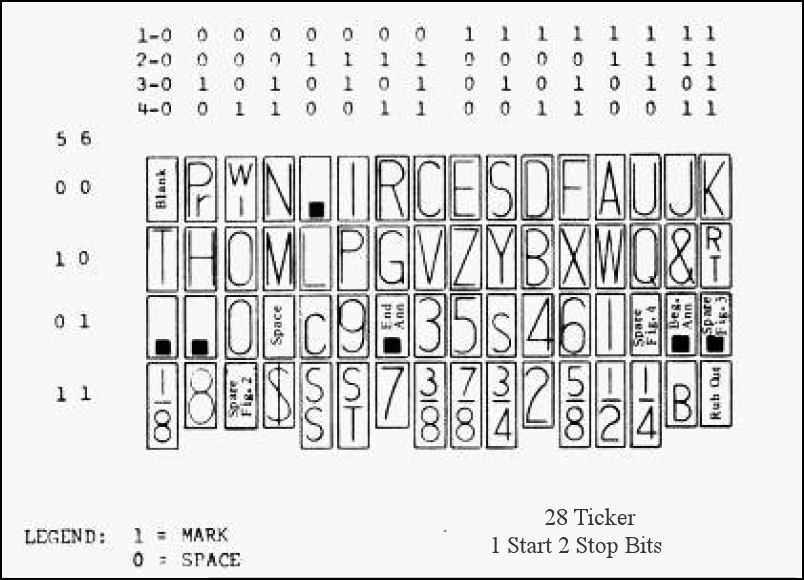

Has the pallet arrangement and also codes for the typebox and confirms 1
start, two stop bits.


On 22-May-25 12:54, Peter Gottlieb wrote:
> There is a holder for a roll of paper tape and then a feed which is a
> driven knurled roller with another one spring loaded on the other side
> of the tape.  The only way to run this backwards would be to modify it
> mechanically to go in the opposite direction (could be very challenging)
> and then use an external holder for the paper roll.  Somewhat
> impractical and I want to keep the unit as original as I can but be able
> to demo it.  Someone responded that they may have a specific type block
> for me but will have to search for it.
>
>
> On 5/22/2025 12:22 PM, John Spigel wrote:
>> Just a silly thought... How is tape fed? Friction rollers? If the tape
>> would feed in opposite direction your characters would be in the
>> correct order. Yes? Can you post some closeup pics?
>>
>> On 22-May-25 11:02, Peter Gottlieb wrote:
>>> John W1AN sent me this link:
>>> https://forum.arduino.cc/t/ascii-to-6-bit-lookup-table/387455
>>>
>>> I had not seen that and simultaneously realized the character
>>> positions in the type block are not in any standard order.
>>>
>>> Before I realized that I rearranged the standard model 28 type block
>>> into an ordered one for the ticker which has letters in two rows and
>>> figures in the other two rows.  Since I have to print upside down due
>>> to the differences in the chirality of the fonts between standard and
>>> ticker, I also have the interesting problem of printing in backwards
>>> order.  So if I want to print ABCD I have to send DCBA to the printer
>>> and also send the value (also in reverse order) before that.  With a
>>> microprocessor sending data this is not a big deal.
>>>
>>> I sent a string of increasing codes (0 through 63) to the printer and
>>> have remaining problems (see attached):
>>> 1)  The print spacing is very uneven
>>> 2)  Repeating characters, such as the 1
>>>
>>> Next step will be to try and send characters to match mechanical
>>> movement...
>>>
>>> ______________________________________________________________
>>> GreenKeys mailing list
>>> Home: http://mailman.qth.net/mailman/listinfo/greenkeys
>>> Help: http://mailman.qth.net/mmfaq.htm
>>> Post: mailto:GreenKeys at mailman.qth.net
>>>
>>>>>> Jordan Spencer Cunningham's GreenKeys Search Tool: https://
>>>>>> teletype.net/gksearch
>>>>>> 2002-to-present greenkeys archive: http://mailman.qth.net/
>>>>>> pipermail/greenkeys/
>>>>>> 1998-to-2001 greenkeys archive: http://mailman.qth.net/archive/
>>>>>> greenkeys/greenkeys.html
>>>>>> Randy Guttery's 2001-to-2009 GreenKeys Search Tool: http://
>>>>>> comcents.com/tty/greenkeyssearch.html
>>>
>>> This list hosted by: http://www.qsl.net
>>> Please help support this email list: http://www.qsl.net/donate.html
>>> Message delivered to w1an.dxusa at gmail.com
>>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: 28 Ticker.jpg
Type: image/jpeg
Size: 89208 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20250522/1f814290/attachment.jpg>
