[GreenKeys] Model 33 Typewheel.

[Eric Moore]

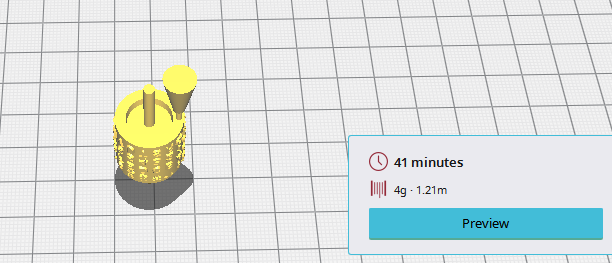

I went ahead and sliced the STL from thingiverse in creality to doublecheck.

As you can see in the image, it sliced fine. The cone is to aid in casting
in a harder material, again, my friend used JB weld to cast which was very
effective but difficult to work with and degas.

What problem did you run into with your slicer?

-Eric

[image: image.png]

On Thu, Jun 29, 2023 at 4:27 PM Tomas Larsson <Tomas at tlec.se> wrote:

> Well, it is impossible to print with an FDM-printer, the model is not
> sliceable with any current slicer.
>
>
>
>
>
> With best regards
>
> Tomas Larsson
>
> Borås
>
> Sweden
>
>
>
> *Från:* Eric Moore <mooreericnyc at gmail.com>
> *Skickat:* den 29 juni 2023 23:25
> *Till:* Tomas Larsson <Tomas at tlec.se>
> *Kopia:* WAYNE <teletypeparts at comcast.net>; Greenkeys <
> GreenKeys at mailman.qth.net>
> *Ämne:* Re: [GreenKeys] Model 33 Typewheel.
>
>
>
> https://www.thingiverse.com/thing:4159598
>
>
>
> We built a model a couple years back. Works great, my friend cast it with
> JB weld and I used it in my 33.
>
>
>
> -Eric
>
>
>
>
>
>
>
> On Thu, Jun 29, 2023, 4:21 PM Tomas Larsson <Tomas at tlec.se> wrote:
>
> Yepp that was the glyph I was looking for.
>
> I am in the progress of doing a Cad-model of the typewheel, so they easily
> can be reproduced.
>
> Unfortunately it is impossible to print them with an ordinary FDM-printer,
> so they have to be printed with an SLA/DLP printer, with a wax medium,
> casted in aluminum with the lost wax method, or milled in a descent
> aluminum alloy.
>
> Now a friend of mine would like to test his milling machine and try to
> create a typewheel for me, when it is done, I will post the results here.
> (need to sort out some sort of camera for my microscope though).
>
>
>
> With best regards
>
> Tomas Larsson
>
> Borås
>
> Sweden
>
>
>
> *Från:* WAYNE <teletypeparts at comcast.net>
> *Skickat:* den 29 juni 2023 23:10
> *Till:* Tomas Larsson <Tomas at tlec.se>; GreenKeys at mailman.qth.net
> *Ämne:* Re: [GreenKeys] Model 33 Typewheel.
>
>
>
> Tomas,
>
>
>
> Its likely the style of typewheel you are referring to.
>
>
>
> The common ones were MA, ME and PS.
>
>
>
> See chart attached.  There are more but wanted to keep the file small.
>
>
>
> 73,
>
>
>
> Wayne
>
> KB1FDW
>
> On 06/29/2023 4:20 PM EDT Tomas Larsson <tomas at tlec.se> wrote:
>
>
>
>
>
> Hi group.
>
> I am in the process to duplicate the standard TypeWheel for the model 33,
> however there is one glyph on the typewheel that I cannot understand nor
> decode, it looks like a superscript M with something below.
>
> It is located on the upper row, between the exclamation mark and the
> paranthesis, in the same column as G 0 and P
>
>
>
> With best regards
>
> Tomas Larsson
>
> Borås
>
> Sweden
>
>
>
