[GreenKeys] 28 Stunt Box Auto CR/LF

[John, W9DDD]

Yes, I did have a typo on the part number, but only just now realize it.
Should have been 157973, so I deserve 30 lashes as well.

---
----
You said "tomorrow" yesterday.

The above comments or recommendations are SWAG. Use at your own risk.
John, W9DDD

On 1/14/2023 2:31 PM, John, W9DDD wrote:
>
> OK, I may have part of that backwards, I probably have spare CR
> function bars as well.  I haven't run my compact enough yet to realize
> I probably have the same function box issues.
>
> ---
> ----
> You said "tomorrow" yesterday.
>
> The above comments or recommendations are SWAG. Use at your own risk.
> John, W9DDD
> On 1/14/2023 2:26 PM, John, W9DDD wrote:
>>

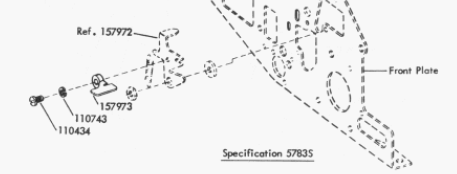

>> I think that might be 2 separate functions.  The auto CR/LF is
>> triggered from the spacing drum and can be defeated by either
>> removing part number 157972.
>>
>>
>> Or adjusting it to trigger on a higher number of spaces (80?)
>> There's a ring on the back side of spacing drum with a tab that
>> sticks out to the back that hits 157972.
>>
>>
>> The LF on CR was originally a Navy (?) modification, which does
>> involve the stunt box.  I think it basically did just put a CR
>> function bar in the LF slot, but for some reason I'm thinking it
>> might be a little more to it than that.  I believe there's a
>> specification that explains installing, so do a reverse?
>>
>> I probably have spare LF function bars.
>>
>> ---
>> ----
>> You said "tomorrow" yesterday.
>>
>> The above comments or recommendations are SWAG. Use at your own risk.
>> John, W9DDD
>> On 1/14/2023 2:08 PM, Daniel Jones wrote:
>>> So I have been working on a 28 Compact KSR.  It auto line feeds on a
>>> carriage return and when it reaches the end of the platen.  The
>>> issue is that when printing pictures from ITTY its adding spaces
>>> ect… as it prints it also won’t overstrike.  Now I have been reading
>>> some old RTTY Journals (Specificly Feb/June 1970) where it says that
>>> if you want Auto CR/LF you remove the normal CR function bar from
>>> slot 5 and insert a LF function bar in its place.  Does that mean I
>>> need to find a CR function bar to put back in slot 5 to get rid of
>>> this feature?
>>>
>>> Daniel
>>>
>>>
>>> Daniel Jones (K6YIC)
>>> DJones at k6yic.com <mailto:DJones at k6yic.com>
>>> http://K6YIC.com
>>> HH Phone #11973
>>>
>>>
>>>
>>>
