[GreenKeys] 28 Stunt Box Auto CR/LF

[John, W9DDD]

OK, I may have part of that backwards, I probably have spare CR function
bars as well.  I haven't run my compact enough yet to realize I probably
have the same function box issues.

---
----
You said "tomorrow" yesterday.

The above comments or recommendations are SWAG. Use at your own risk.
John, W9DDD

On 1/14/2023 2:26 PM, John, W9DDD wrote:
>

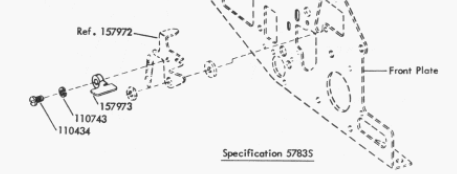

> I think that might be 2 separate functions.  The auto CR/LF is
> triggered from the spacing drum and can be defeated by either removing
> part number 157972.
>
>
> Or adjusting it to trigger on a higher number of spaces (80?) There's
> a ring on the back side of spacing drum with a tab that sticks out to
> the back that hits 157972.
>
>
> The LF on CR was originally a Navy (?) modification, which does
> involve the stunt box.  I think it basically did just put a CR
> function bar in the LF slot, but for some reason I'm thinking it might
> be a little more to it than that.  I believe there's a specification
> that explains installing, so do a reverse?
>
> I probably have spare LF function bars.
>
> ---
> ----
> You said "tomorrow" yesterday.
>
> The above comments or recommendations are SWAG. Use at your own risk.
> John, W9DDD
> On 1/14/2023 2:08 PM, Daniel Jones wrote:
>> So I have been working on a 28 Compact KSR.  It auto line feeds on a
>> carriage return and when it reaches the end of the platen.  The issue
>> is that when printing pictures from ITTY its adding spaces ect… as it
>> prints it also won’t overstrike.  Now I have been reading some old
>> RTTY Journals (Specificly Feb/June 1970) where it says that if you
>> want Auto CR/LF you remove the normal CR function bar from slot 5 and
>> insert a LF function bar in its place.  Does that mean I need to find
>> a CR function bar to put back in slot 5 to get rid of this feature?
>>
>> Daniel
>>
>>
>> Daniel Jones (K6YIC)
>> DJones at k6yic.com <mailto:DJones at k6yic.com>
>> http://K6YIC.com
>> HH Phone #11973
>>
>>
>>
>>
