[GreenKeys] ROTR lever?

[Nick England]

AHA! EUREKA! ETC.
This handle and arm are part of modification kit 174457 (maybe see 5889S
which I don't have).
50151S alludes to this -
"The 195271 Modification Kit provides a replacement tape guide for the
159953 Tape Guide on LRC200 Covers when the 174457 Modification Kit is not
desired. (The 174457 Modification Kit provides facilities for external
manual tape feed-out for self-contained Model 28 Typing Reperforators and
includes a replacement tape guide)."

So there are three tape guides for the ROTR cabinet.
159953 - original - no handle
177404 - used with the 177405 handle via 177457 modification (like Eugene's
photo)
195181 - replaces 159953 - looks like 177404, but mounts with adhesive

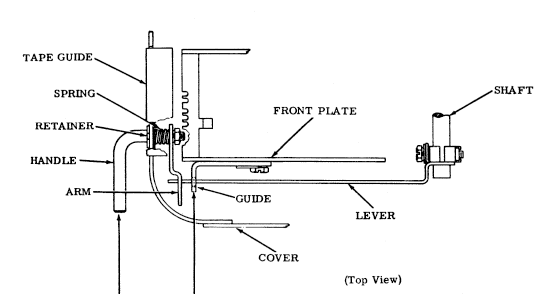

EUREKA! After following these clues I eventually found the 573-118-700
adjustment procedure (page 133 of issue 8) that shows this handle and arm -
it evidently bears against the manual LTRS feed-out lever inside the
cabinet. If your reperf doesn't have that internal manual feed-out lever
modification, there's nothing for the external handle to actuate and you
will be properly mystified as to what the heck it does.

[image: image.png]


references
https://www.navy-radio.com/manuals/tty/jc/50151S-1SS1-6311.pdf
https://www.navy-radio.com/manuals/tty/1167B-ch7.pdf
https://www.navy-radio.com/manuals/tty/573-135-800-7008.pdf
https://www.navy-radio.com/manuals/tty/573-118-700TC-iss8-7211.pdf

Golly, following Teletype trivia down ratholes provides endless
entertainment,
Cheers,
Nick England K4NYW
www.navy-radio.com
