[GreenKeys] CV-2455 Update

[Duncan Brown]

Mark,

Test Points J6 & 7 are for reading the loop current. If it reads 0V
between J6 & 7, that says the loop is open, which is why the Mite is
running open.  This could be due to a problem in the CV-2455, or in
configuration of the Mite.

Short the loop connection at the Mite and read the voltage at J6 & 7.
If OK, the problem is in the Mite. If no voltage at J6 & 7, then the
problem is in the CV-2455.

(I have a PRC-47 & CV-2455, but never fired it up.)

Good luck,

Duncan Brown, K2OEQ
USASA    31J30

Antique Wireless Assoc. Museum,
   Asst. Curator, Commercial Equipment
(also chief TTY op & repairman)

i-Telex: 212503

www.antiquewireless.org
AWA Youtube channel:
https://www.youtube.com/channel/UCX55peBhzeX1qps_VYXdLBA





On 02-Dec-23 09:55, MilComm Guy wrote:
>  I looked in the manual and part of the initial use says the test
> points J6 and J7 should show 0.2 VDC if not adjust R45, well I have
> zero volts with no change in adjusting R45 so I would say I have an
> issue.

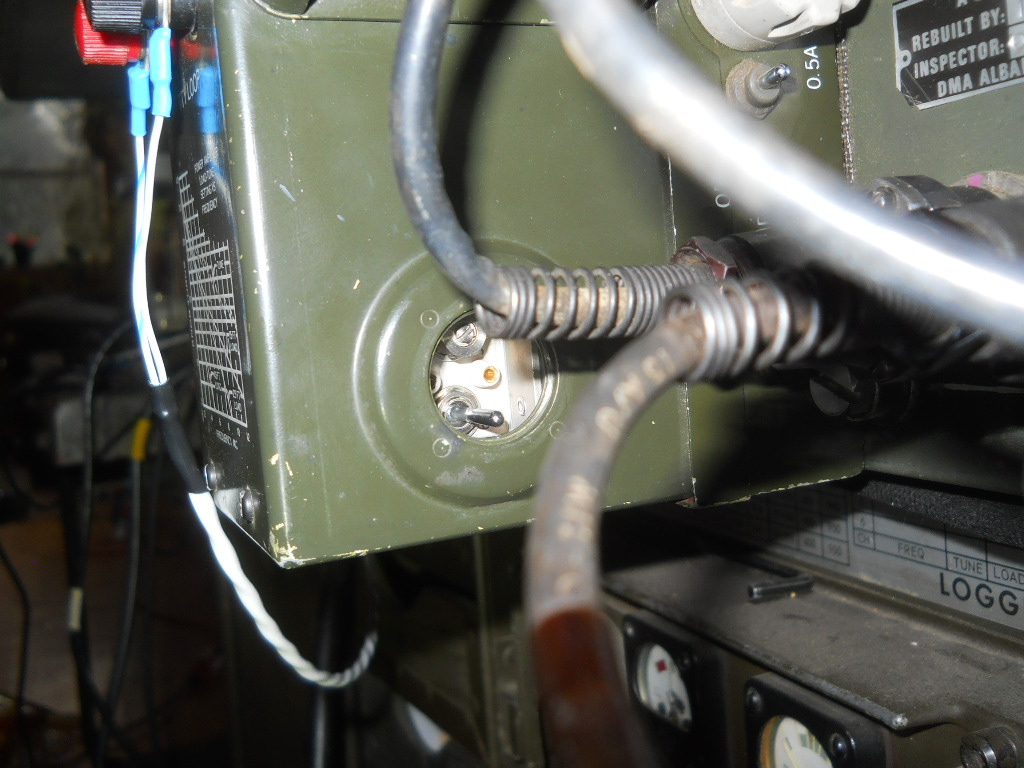

> DSCN0301.JPG
>
> Mark K1HF
>
