MANY thanks for this!
Andrea
Mar 20, 2022 17:12:52 greenkeys-request at mailman.qth.net:
> Send GreenKeys mailing list submissions to
> greenkeys at mailman.qth.net
>
> To subscribe or unsubscribe via the World Wide Web, visit
> http://mailman.qth.net/mailman/listinfo/greenkeys
> or, via email, send a message with subject or body 'help' to
> greenkeys-request at mailman.qth.net
>
> You can reach the person managing the list at
> greenkeys-owner at mailman.qth.net
>
> When replying, please edit your Subject line so it is more specific
> than "Re: Contents of GreenKeys digest..."
>
>
> When replying, please enter correct subject line, and delete all digest text except the portion related to subject.
>
> Today's Topics:
>
> 1. Typing News Articles from the Beginning (Tom Hunter)
> 2. Re: 28 LPR/ROTR (W2HX)
> 3. Fwd: Long over due M-600 Manual (Nick England)
> 4. Houston - 28 ASR and 28 ROTR available (Kevin H. Phillips)
>
>
> ----------------------------------------------------------------------
>
> Message: 1
> Date: Sat, 19 Mar 2022 19:20:52 -0400
> From: Tom Hunter <tomhenryhunter at gmail.com>
> To: GreenKeys at mailman.qth.net
> Subject: [GreenKeys] Typing News Articles from the Beginning
> Message-ID:
> <CAJK8690yBRR02J4b_gHciMH91oUwaKtcpEf8MnMR8Kg_BuXq=Q at mail.gmail.com>
> Content-Type: text/plain; charset="utf-8"
>
> I just made some fairly accurate measurements from RttyApp
> by running my news tones into Cool Edit Pro and highlighting
> the three things separating articles so I could give you this
> hint with real numbers. Judging from the vanes on my model
> 15 the diddles are Letters characters.
>
> This applies to ITTY and to my streams.
>
> I hate to start printing in the middle of anything.
>
> When I want to catch any file from the beginning, I listen
> to the chatter of my selector magnets with the motor off.
> Sometimes I have to rotate the motor a little by hand
> until the selector is loudest.
>
> A random chatter means something is still printing.
> At some point there will be about four seconds of a
> steady tick-tick-tick. That is the diddle signifying the end
> of the current article. Then the selector will go quiet for
> seven seconds of steady mark.That is when I turn on
> my motor switch. After the steady mark there will be
> seven seconds of letters characters, then printing will
> resume at the beginning of the next article.
>
> It looks so much neater and there is less wasted paper
>
> I hope this may help somebody.
>
>
> Tom N3CRK
> -------------- next part --------------
> An HTML attachment was scrubbed...
> URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20220319/6d4e8765/attachment-0001.html>
>
> ------------------------------
>
> Message: 2
> Date: Sun, 20 Mar 2022 00:48:46 +0000
> From: W2HX <w2hx at w2hx.com>
> To: W2HX <w2hx at w2hx.com>, "GreenKeys at mailman.qth.net"
> <GreenKeys at mailman.qth.net>
> Subject: Re: [GreenKeys] 28 LPR/ROTR
> Message-ID:
> <b376b4ecb61048538f108de93843ee4c at EXBE014SV3.NA02.MSEXCHANGEOUTLOOK.COM>
>
> Content-Type: text/plain; charset="us-ascii"
>
> Well, that wasn't so bad after all. I put a lot of oil (Starrett 1620) in the 4 oilways on the motor, rotated it by hand for a while then turn the motor on for 5 seconds or so. Then kept working it and working it and now it is as smooth as a baby's bottom. Spent another hour or two lubricating whatever I could see that pivots or moves in the reperf mechanism itself. I have to find my grease which I have not yet used but will once I locate it. And here is the result:
>
> https://youtu.be/1RH6fGVnIlk
>
> There is one problem with it, namely the ratchet gear that moves the right ink ribbon wheel is quite bent. So it gets caught at a point in its rotation and moves no further.
> I did learn (from W9DDD) that this reperf is not usable in the 28 on the keyboard. So I still think I have to locate one of those otherwise I'll never have a properly working reperf..
>
> Thanks for everyone's help on this!
>
>
> 73 Eugene W2HX
> Subscribe to my Youtube Channel: https://www.youtube.com/c/w2hx-channel/videos
>
> From: greenkeys-bounces at mailman.qth.net <greenkeys-bounces at mailman.qth.net> On Behalf Of W2HX
> Sent: Saturday, March 19, 2022 4:28 PM
> To: GreenKeys at mailman.qth.net
> Subject: [GreenKeys] 28 LPR/ROTR
>
> Hi all,
>
> In my effort to fix my typing reperf in my 28ASR, I remembered I had this ROTR in the closet. I thought I could replace my LPR with the LPR from this unit as my LPR is definitely missing a part. Funny how age affects the memory. I had completely forgot that about 10 years ago I discovered that my LPR was not working correctly (see previous emails on this subject) and even went through the trouble of finding the problem. I never did solve it, but I did find the problem. Anyone who wants to see a page I created like 10 years ago on this subject and I forgot about you can see it here:
> https://w2hx.com/x/TTY/28-LPR%20Issue/ResetBail-test.htm
> It is kinda long, so the TL;DR is I am missing part number 159880. And even if I obtained this part, I think installing it would likely drive me crazy.
>
> So back to the ROTR. After some digging, I was able to unearth it from the closet. Pix here (pix from when I original acquired it):
>
> Before I fired it up, I thought it best to try to rotate the motor by hand and it was stuck. But after a little bit of torque it freed up but still felt like it was dragging. Certainly didn't move as freely as the motors on my two other machines even when those machines are connected to their drivetrains and this one is disconnected from anything else.
>
> This has a 3 speed transmission (maybe the all do?) and with the gear shift in a neutral position, the top section of gears also feels like there are some little detents here and there, not smooth as I would expect. The LPR mechanism itself seems to be well lubricated as I can get everything moving with ease (I have removed the belt between the gear shift mechanism and the LPR mechanism.
>
> Here is a short video on it (2:18) :
> https://youtu.be/843RPEWP-7c
>
> I have a bunch of manuals for these things very confusing (and intimidating) for a novice. I see that the motor has 4 nipples for lubrication. What kind of tool is needed to press the ball bearing down while lubing this? I'll have to read up whether it needs grease or oil. I am hoping I don't have to dismantle the motor to get this going.
>
> Advice (or admonitions) welcome.
>
>
> 73 Eugene W2HX
> Subscribe to my Youtube Channel: https://www.youtube.com/c/w2hx-channel/videos
>
>
>
> -------------- next part --------------
> An HTML attachment was scrubbed...
> URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20220320/8246c725/attachment-0001.html>
>
> ------------------------------
>
> Message: 3
> Date: Sun, 20 Mar 2022 12:02:37 -0400
> From: Nick England <navy.radio at gmail.com>
> To: Greenkeys <greenkeys at mailman.qth.net>
> Subject: [GreenKeys] Fwd: Long over due M-600 Manual
> Message-ID:
> <CAB55hNfSSW7BORixVOyVokd8DhJNNiOoM=nGC+e3z_aVZ_FCNw at mail.gmail.com>
> Content-Type: text/plain; charset="utf-8"
>
> I've added Steve's Info-Tech M-600 manual at
> https://www.navy-radio.com/rtty/info-tech/
>
> Nick K4NYW
>
> ---------- Forwarded message ---------
> From: Steve <kd3ht at epix.net>
> Date: Sun, Mar 20, 2022 at 11:38 AM
> Subject: Long over due M-600 Manual
> To: Jeff W1aea <jeffw1aea at gmail.com>, <navy.radio at gmail.com>, Military
> Surplus Mail List <milsurplus at mailman.qth.net>
>
>
> Hi Guys,
>
> Finally found everything and had a few moments.
>
> It is all readable and makes a nice package at 300 dpi.
>
> If we need any pages higher than 300 dpi, Let me know.
>
>
>
> Steve, kd3ht
> -------------- next part --------------
> An HTML attachment was scrubbed...
> URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20220320/18f711e4/attachment-0001.html>
>
> ------------------------------
>
> Message: 4
> Date: Sun, 20 Mar 2022 11:10:29 -0500
> From: "Kevin H. Phillips" <kh-phillips at 9-5usa.org>
> To: Greenkeys <greenkeys at mailman.qth.net>
> Subject: [GreenKeys] Houston - 28 ASR and 28 ROTR available
> Message-ID: <7fe02c15-ac33-b64b-7c62-d0030a8d5e66 at 9-5usa.org>
> Content-Type: text/plain; charset="utf-8"; Format="flowed"
>

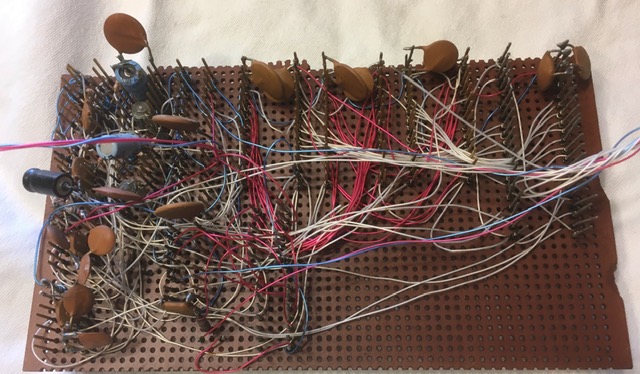

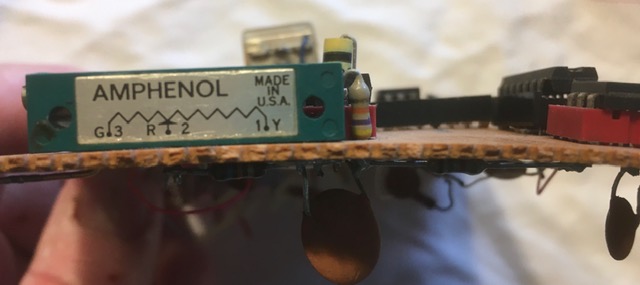

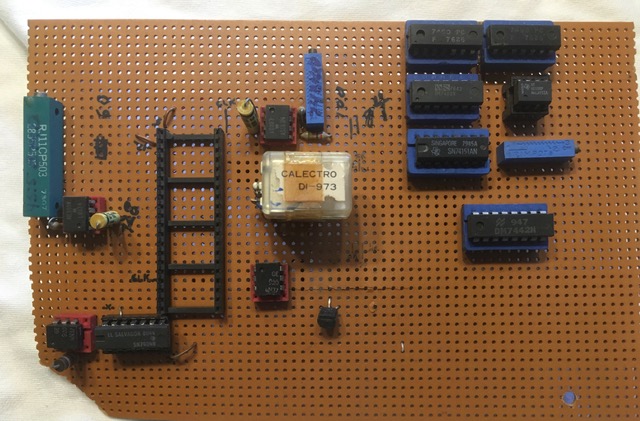

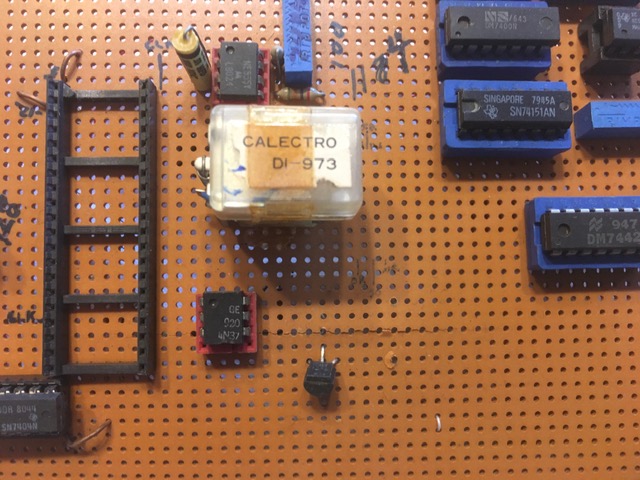

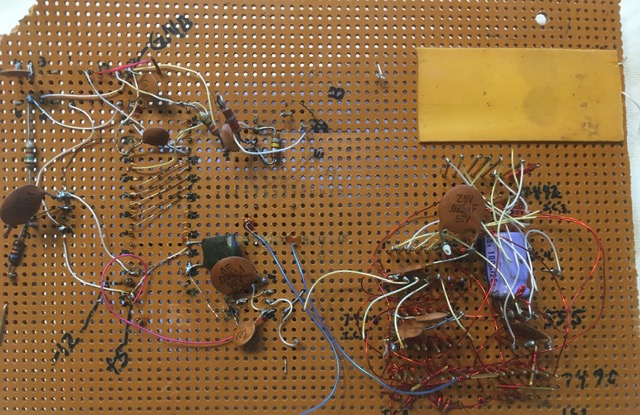

> Here are some additional photos of the boards that were under the hood
> of this 28ASR.? There does appear to be one UART or IC missing.? I
> gently unsoldered the boards from their connecting wires.? They are
> really interesting but they were already damaged and I can't think of a
> reason I "need" them or want them in the machine.
>
>
> 73
>
>
> Kevin
>
>
>
>
>
>
> --
> This email has been checked for viruses by AVG.
> https://www.avg.com
> -------------- next part --------------
> A non-text attachment was scrubbed...
> Name: IMG_5262.jpg
> Type: image/jpeg
> Size: 139660 bytes
> Desc: not available
> URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20220320/83a9ce2c/attachment.jpg>
> -------------- next part --------------
> A non-text attachment was scrubbed...
> Name: IMG_5261.jpg
> Type: image/jpeg
> Size: 119846 bytes
> Desc: not available
> URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20220320/83a9ce2c/attachment-0001.jpg>
> -------------- next part --------------
> A non-text attachment was scrubbed...
> Name: IMG_5260.jpg
> Type: image/jpeg
> Size: 35542 bytes
> Desc: not available
> URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20220320/83a9ce2c/attachment-0002.jpg>
> -------------- next part --------------
> A non-text attachment was scrubbed...
> Name: IMG_5259.jpg
> Type: image/jpeg
> Size: 116514 bytes
> Desc: not available
> URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20220320/83a9ce2c/attachment-0003.jpg>
> -------------- next part --------------
> A non-text attachment was scrubbed...
> Name: IMG_5258.jpg
> Type: image/jpeg
> Size: 106315 bytes
> Desc: not available
> URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20220320/83a9ce2c/attachment-0004.jpg>
>
> ------------------------------
>
