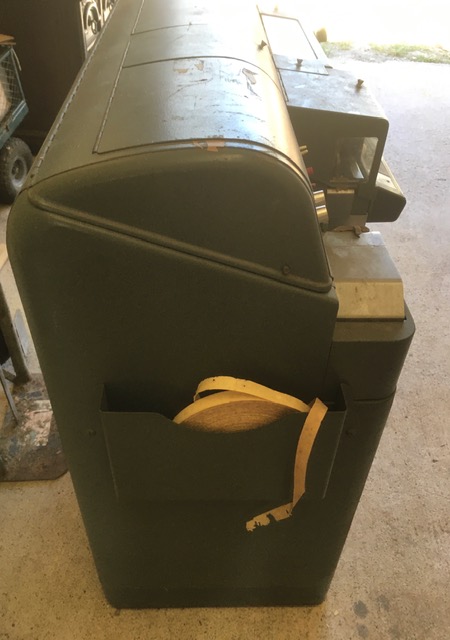

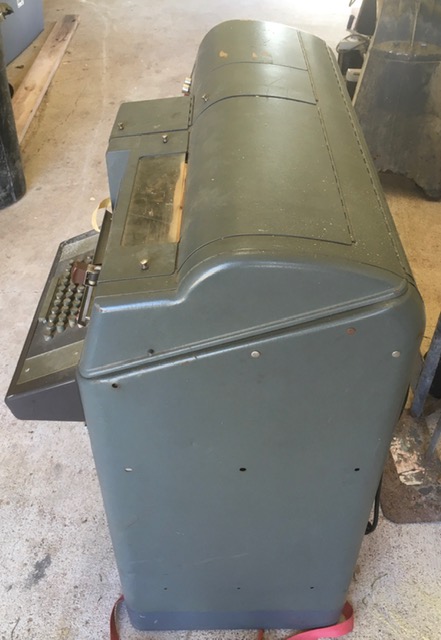

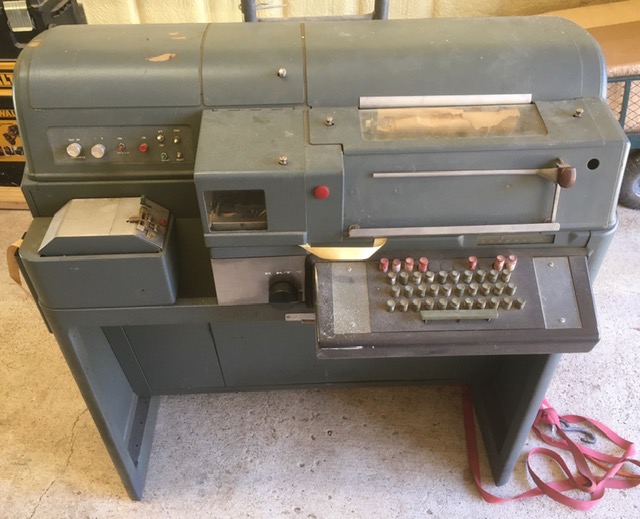

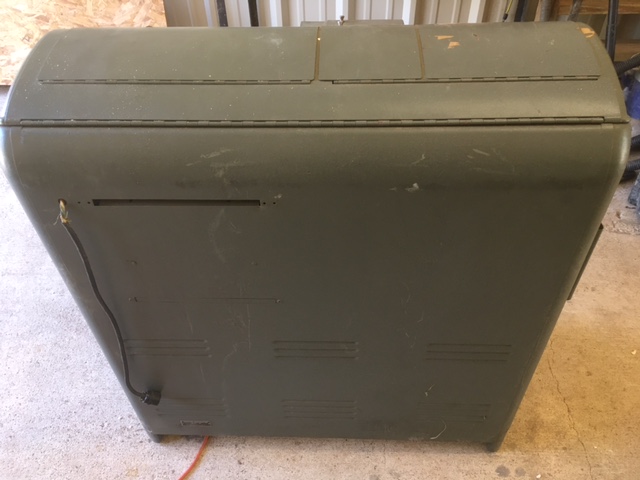

Here are some photos of the outside of the machine.  There are no
markings or logos of any kind, inside or out, that I have found.


I was "almost" right about it being plug-n-play.  I had turned the motor
by hand to determined it moved freely.  I plugged it in and it ran just
fine; no magic smoke escaped from anything.  There were a number of
cables in the cabinet which had been connected to the boards.  I removed
them one by one and isolated which one was probably the loop
connection.  I connected that to the loop on an ST-6 and the machine ran
closed.  If there is provision for an internal loop supply, it is not
working.


The printer does not operate when the keys are typed.  The punch works
just fine.  It is a chadless punch.  I ran through several cycles of
RY's and the punch appeared to work well.  The character counter works.
The reader does not work with the switch activated.  It will pull tape
through if I depress the armature of the magnet with a screwdriver.
There is a second connector to the the side of the printer.  I will post
additional pictures where it can be seen.  I will try connecting it and
then power up the machine and see if this changes any of the above
observations.


73


Kevin






--
