[GreenKeys] Quick help w model 32

[Jeffrey Golas]

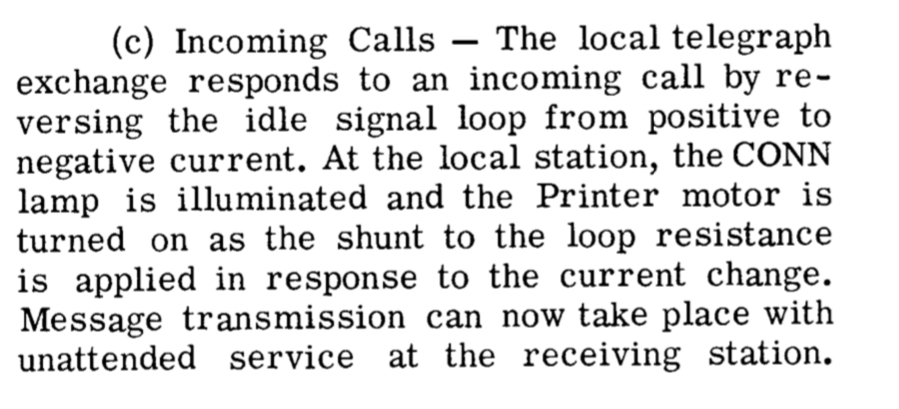

To answer my question, its probably polarity. Looked at the manual for the Telex CCU, and it seems the switch would reverse and hold polarity for an incoming call, so I probably just need to reverse the loop wires.

Mine at home just works, so its wired to think its getting a call.



Jeff KC3GJX

> On Jun 25, 2022, at 10:40 PM, Paul Heller <paul0926 at comcast.net> wrote:
>
> Are you sure it is a 60WPM (45 baud) machine? Most 32s were set up for telex operation at 66wpm. Right now the Europe channel might work because it is 50 baud but the ST-6 probably cannot be tuned to the European frequencies: 1275 mark and 1445 space. If you want to test things, I could set the frequencies for the Europenchannel to 2125/2295 temporarily as long as we warn the European users (if there are any) of the pending change because their machines won’t work.
>
> Let me know if you want to try that test or if you think you can receive 1275/1445
>
> Paul
> W2TTY
>
> ITTY: 		HTTP://INTERNET-TTY.NET:8000/ITTY
> ITTY100: 	HTTP://INTERNET-TTY.NET:8010/ITTY100
> AUTOSTART: HTTP://INTERNET-TTY.NET:8030/AUTOSTART
> EUROPE: 	HTTP://INTERNET-TTY.NET:8040/EUROPE
>
>>> On Jun 25, 2022, at 8:06 PM, Jeffrey Golas <jeffg at junknet.net> wrote:
>>>
>> I have a model 32 connected to a Hal st-6 TU. When connected im only seeing space on the Tu while feeding it ITTY. If I unplug the loop, I see both signals on the Tu. Anyone have quick ideas?
>>
>> If I reset the machine it shuts off. So i need to get it in online mode. Its a western union telex machine with 4 buttons.
>>
>> Jeff KC3GJX
