[GreenKeys] Associated Press DIY - Changing gears on your Model 15

[Jerry Murphy]

The AP was fortunate that Teletype changed the design of the M15 mainshaft sometime
in the 1930s.  The original design of the mainshaft had the speed change gear between
the two support ball bearings.  This meant that the mainshaft had to be removed in order
to replace the speed change gear.  Removing a M15 mainshaft is not a DIY kind of job.
Pictures of the early design and late design mainshafts are attached.  Note the location
of the speed change gear on the early design mainshaft.  The later design mainshaft
swapped the locations of the big bearing and the speed change gear.

     Jerry Murphy

-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20220719/88aa2505/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...

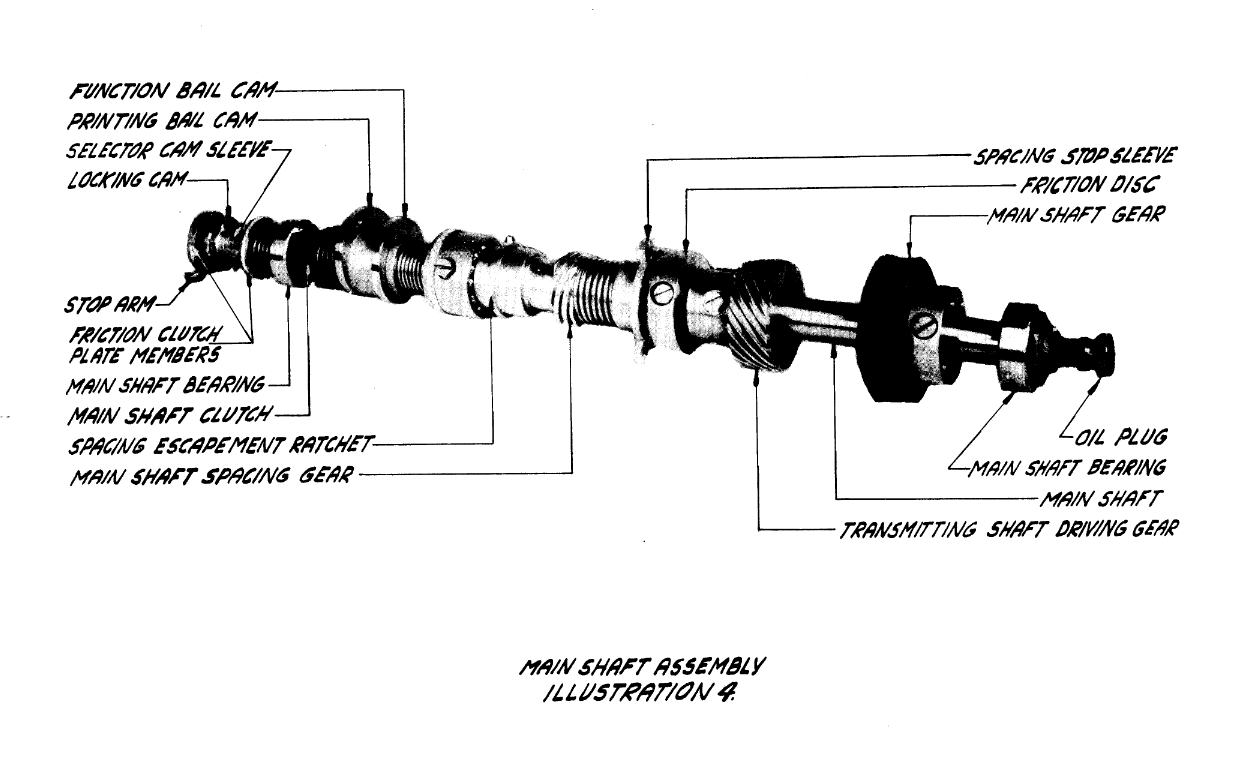

Name: Teletype - M15 mainshaft - early design 1931.jpg
Type: image/jpeg
Size: 143716 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20220719/88aa2505/attachment-0002.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...

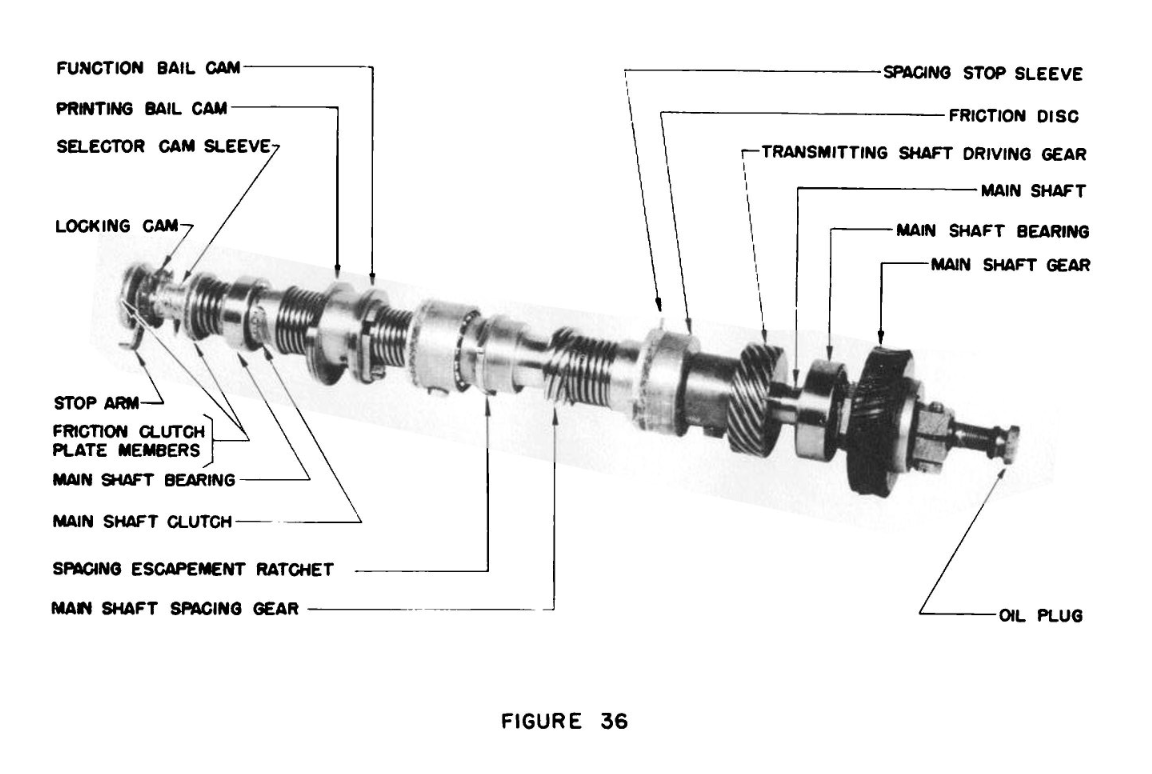

Name: Teletype - M15 mainshaft - late design.jpg
Type: image/jpeg
Size: 315106 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20220719/88aa2505/attachment-0003.jpg>
