[GreenKeys] What is going on here?

[Daniel Jones]

I have the backspace in a KTR and a 192a and for the life of me can’t figure out what is is good for.   If you back space a punched set it just shoves the partial chads back through.  When run through a TD it usually records what ever was punched originally regardless of the back space.

Daniel

www.K6YIC.com
DJones at K6YIC.com
HH#11973

> On Jul 16, 2022, at 17:05, Nick England <navy.radio at gmail.com> wrote:
>
>
> It has always mystified me that, in an ASR, the backspace solenoid wiring is soldered in and you have to cut the wiring or unsolder in order to remove the perf/reperf from the LAK base.
> Everything else in Teletype-land has plug-in or terminal strip connections…..
>
>
>> On Sat, Jul 16, 2022 at 7:03 PM John, W9DDD <w9ddd at tapr.org> wrote:
>> Hi Paul,
>>

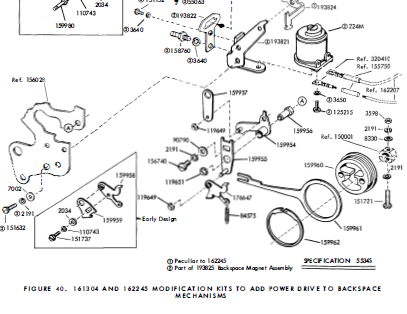

>> Actually I'm sitting here looking at a ROTR that has the power backspace
>>
>>
>>
>> I've not hooked up a switch to it, because I can't really see it being too useful.
>>
>> You are likely correct that the switch is either blank or figures tape feed out since that would be more useful particularly for auxiliary mounted reperf.
>>
>> ---
>> ----
>> You said "tomorrow" yesterday.
>>
>> The above comments or recommendations are SWAG. Use at your own risk.
>> John, W9DDD
>> On 7/16/2022 5:31 PM, Paul Heller wrote:
>>> Tom, are you sure that is a backspace button and not a tape feed button on your panel? A reperf does not run backwards, and a tape feed is important.
>>>
>>>
>>>
>>> Paul
>>> W2TTY
>>> i-Telex: 80003 or 468466
>>>
>>> ITTY:  		HTTP://INTERNET-TTY.NET:8000/ITTY
>>> ITTY100:  	HTTP://INTERNET-TTY.NET:8010/ITTY100
>>> AUTOSTART:  HTTP://INTERNET-TTY.NET:8030/AUTOSTART
>>> EUROPE: 	HTTP://INTERNET-TTY.NET:8040/EUROPE
>>>
>>>
>>>> On Jul 16, 2022, at 12:09 PM, Tom Hunter <tomhenryhunter at gmail.com> wrote:
>>>>
>>>> I am surprised at you Nick.  The hole on the right side of that panel is the tip-off. That is where the tape emerges from a dome reperf. It is a reperf control panel. Although my panel, besides the hole, only has two controls - a power switch and a backspace button (which does not work.)
>>>>
>>>>
>>>> Tom   N3CRK
