[GreenKeys] M28 TD rubber isolators?

[W2HX]

Yes thanks everyone. Nick helped me ID the part. Here is a good look at it. It's the part above and below the "G".
I sent an email to Paul, Mr. RTTY. If he doesn't have it, Ken KD2GFM suggested just some gromets. I am not too worried about vibration isolation, but I just want the nut to tighten down enough so the TD base doesn't move around

[cid:image001.png at 01D91953.BDA6B760]


73 Eugene W2HX
Subscribe to my Youtube Channel: https://www.youtube.com/@w2hx/videos

From: greenkeys-bounces at mailman.qth.net <greenkeys-bounces at mailman.qth.net> On Behalf Of John, W9DDD
Sent: Monday, December 26, 2022 6:33 PM
To: greenkeys at mailman.qth.net
Subject: Re: [GreenKeys] M28 TD rubber isolators?

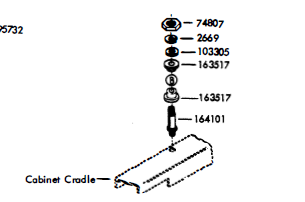

[cid:image002.png at 01D9195C.13BCDB90]From page 2 of section 573-128-800TC or page 184 of 1169B

---

----

You said "tomorrow" yesterday.



The above comments or recommendations are SWAG. Use at your own risk.

John, W9DDD
On 12/26/2022 5:12 PM, John W9DDD wrote:
Looks like you need some 163517 rubber bushings.

Thisspecification which covers a whole bunch of noise reduction modification.
https://www.navy-radio.com/manuals/tty/pc/5941S-iss6-6305.pdf

I thought I had seen something strictly on the TD base, but don't find it.  It may be covered with the ASR cabinet parts?
John, W9DDD


On Dec 26, 2022, at 2:24 PM, W2HX <w2hx at w2hx.com<mailto:w2hx at w2hx.com>> wrote:
Hi all,

While I'm in the ASR doing "stuff" I noticed the TD is very loose on its base. I figured it was just a matter of tightening some nuts. But I realized that the nuts could not tighten any further and there was still movement. I looked at the other screws and saw one had a rubber isolator and the other two did not. Surely this is my issue as the rubber takes up some of the space needed to tighten against the nuts.

Anyone have 2? Or is this a job for Mr. RTTY? I'd have to figure out the part number (these TTY part breakdowns give me a headache!).

https://w2hx.com/x/TTY/misc/20221226_145700.jpg
https://w2hx.com/x/TTY/misc/20221226_145705.jpg (showing the one isolator)
https://w2hx.com/x/TTY/misc/20221226_145710.jpg (nut removed for photo)
https://w2hx.com/x/TTY/misc/20221226_145726.jpg (showing the lack of an isolator).

Thanks all

73 Eugene W2HX
Subscribe to my Youtube Channel: https://www.youtube.com/@w2hx/videos
