Hi all,

While I'm in the ASR doing "stuff" I noticed the TD is very loose on its base. I figured it was just a matter of tightening some nuts. But I realized that the nuts could not tighten any further and there was still movement. I looked at the other screws and saw one had a rubber isolator and the other two did not. Surely this is my issue as the rubber takes up some of the space needed to tighten against the nuts.

Anyone have 2? Or is this a job for Mr. RTTY? I'd have to figure out the part number (these TTY part breakdowns give me a headache!).

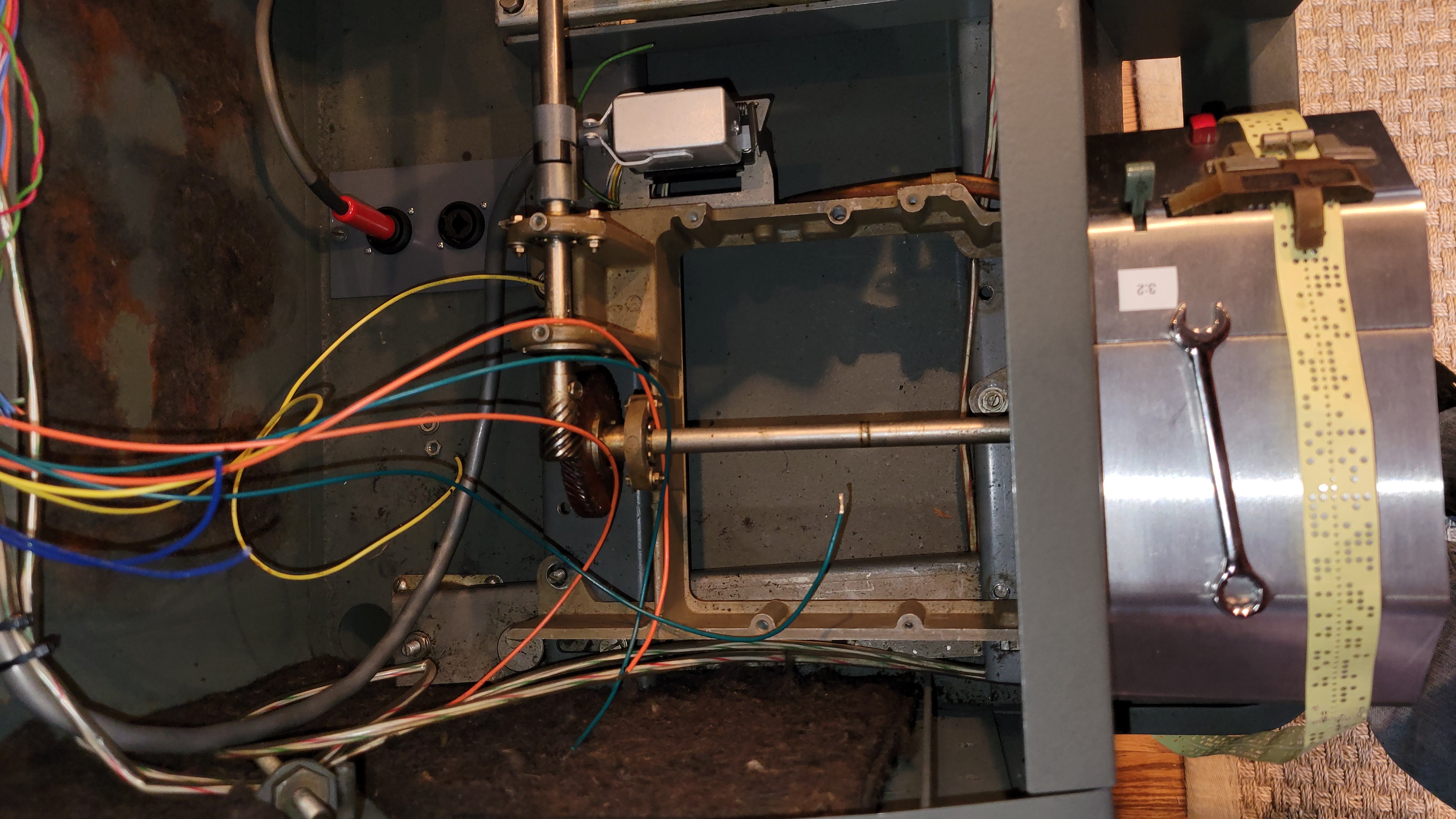

https://w2hx.com/x/TTY/misc/20221226_145700.jpg

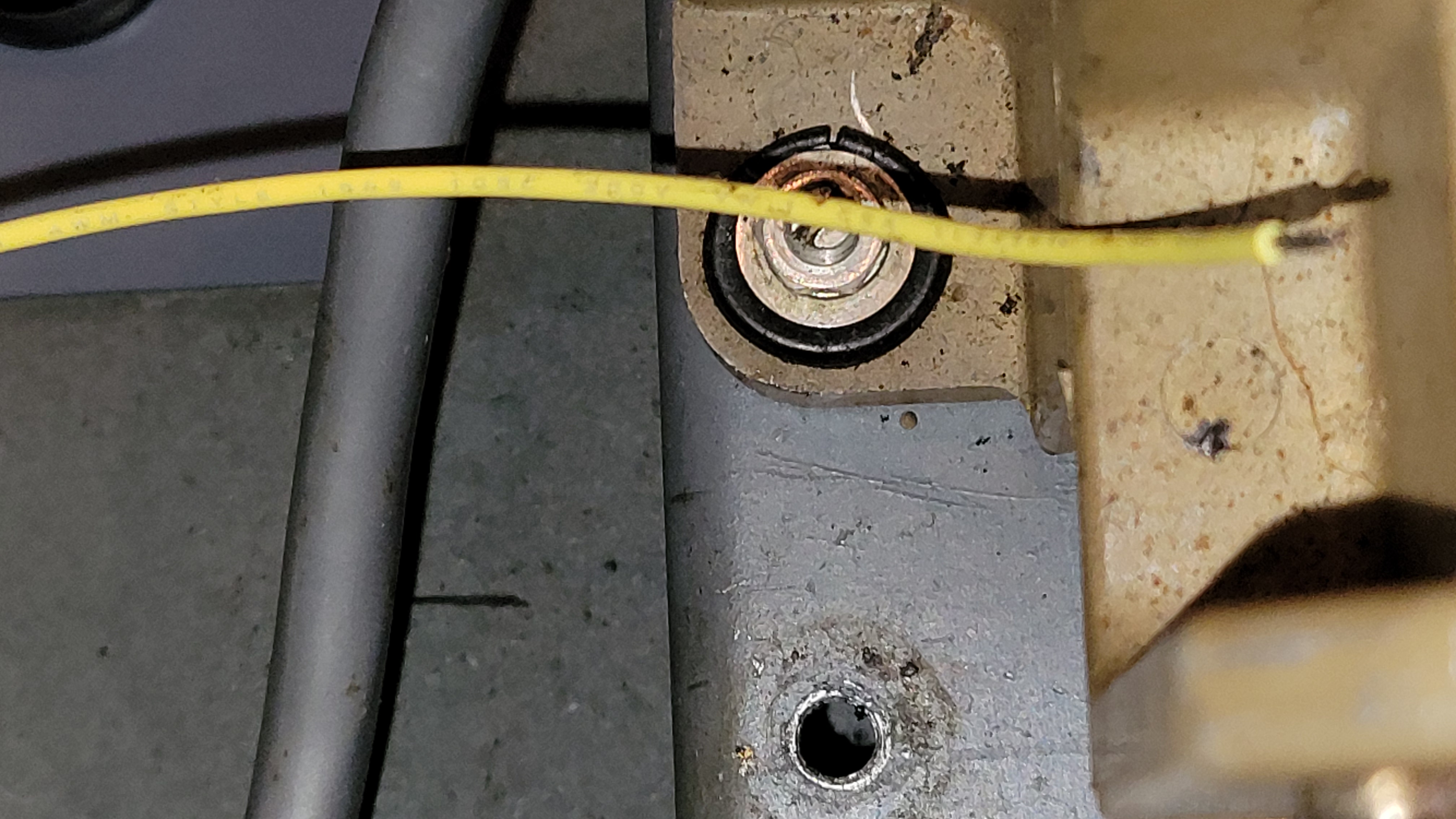

https://w2hx.com/x/TTY/misc/20221226_145705.jpg (showing the one isolator)

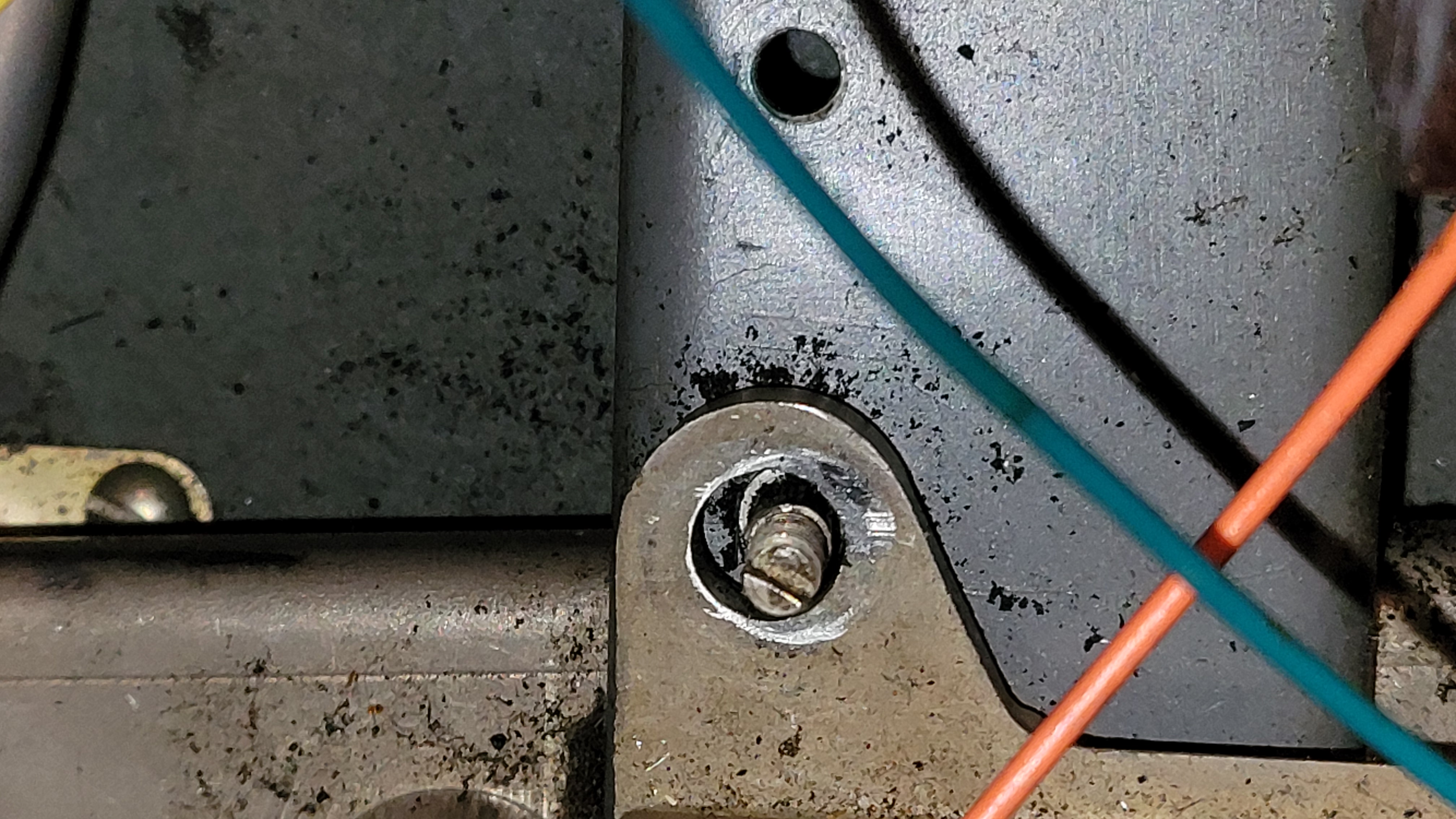

https://w2hx.com/x/TTY/misc/20221226_145710.jpg (nut removed for photo)

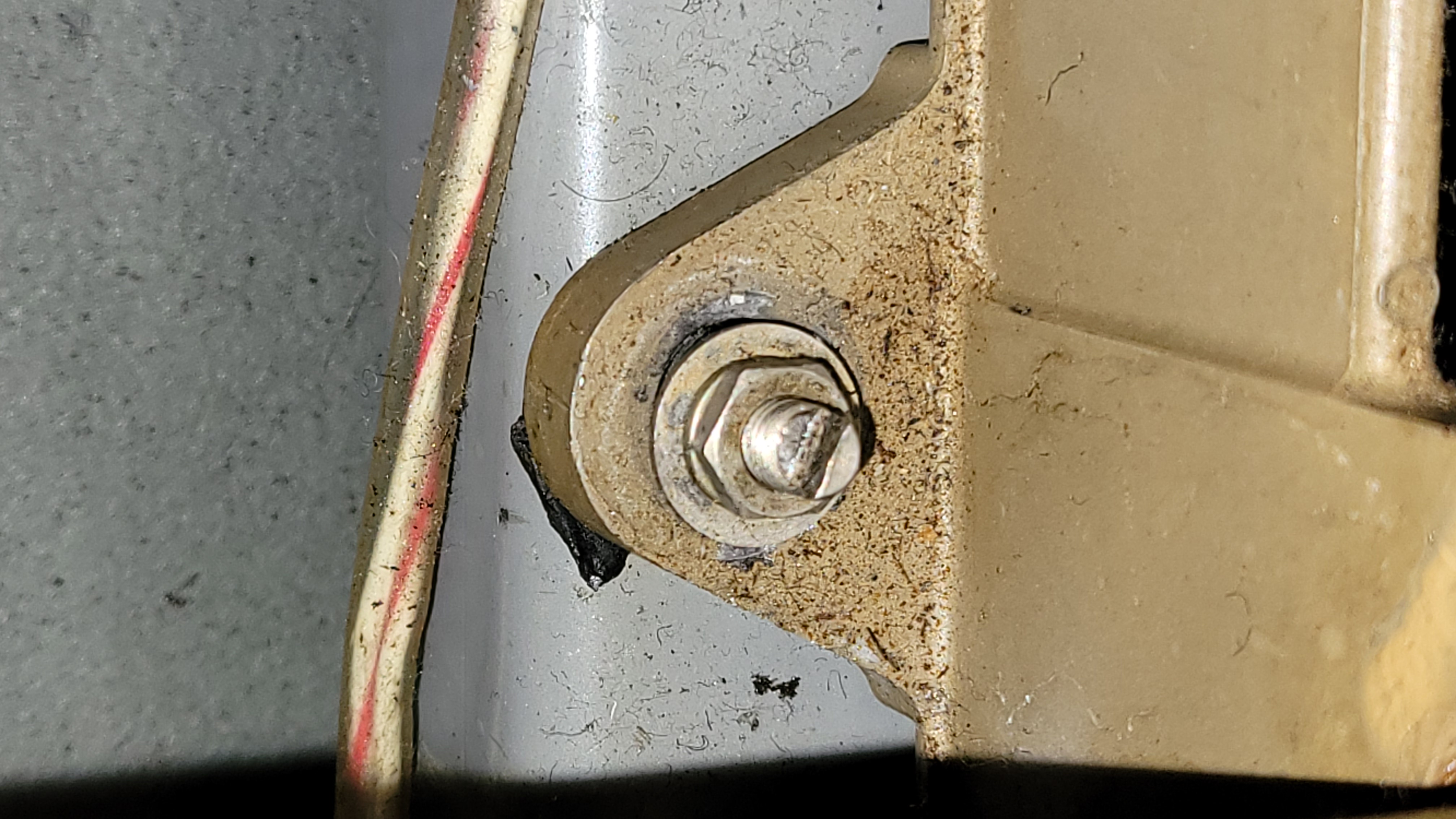

https://w2hx.com/x/TTY/misc/20221226_145726.jpg (showing the lack of an isolator).

Thanks all

73 Eugene W2HX
