[GreenKeys] ASR33 Print Cylinder damage photos

[John]

Greetings Greenkeys!

My venerable ASR33 accumulated a list of Things to Do - the power supply
went bad, the ribbon needed replacing, the I/O needed a bit of work, the
type cylinder got hammered (literally) - so today turned out to be
auspicious for TeleTypewriterTLC(tm).

The power supply's filter capacitor had dried up and was open; it got
replaced with a nice new part about 1/4 of the original size. (250uf @
75 volts)

Replaced the ribbon, reseated contacts, cleaned, oiled, etc - and
replaced the type cylinder which had gotten thrashed when the hammer
element flew off in the middle of a listing while I was in the other
room....    so I replaced and re-aligned it.

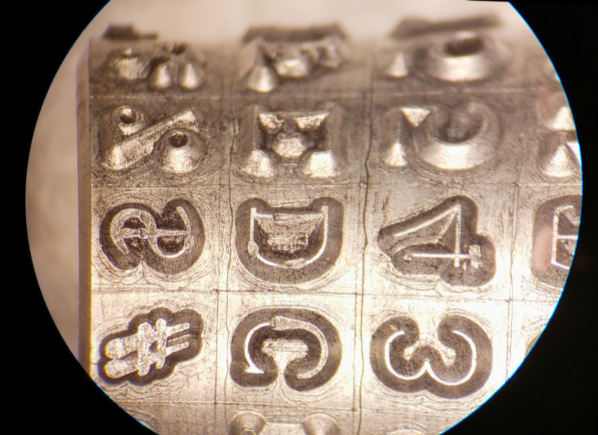

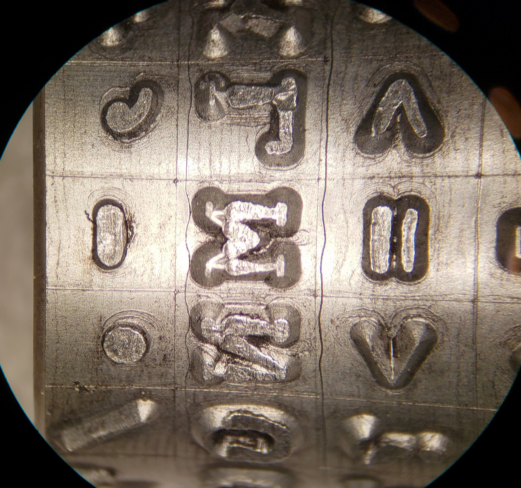

As a cautionary tale, I took a few photos of the damaged cylinder at
about 8X magnification.  It's interesting to see what happened in about
30 seconds of running minus the rubber part on the hammer. It has
certainly wrecked the type cylinder, and of course no fixing it.  I had
a spare, so it's on the machine and working well.


I'll send these in 2 separate posts so as not to stress the signal lines.

Photos 1 and 2 of 4 are attached.


Cheers

John KB6SCO

Carson City
