[GreenKeys] PC board work.

[Jeffrey Angus]

This is what I do in my spare time now that I'm retired.
I use Express PCB software.

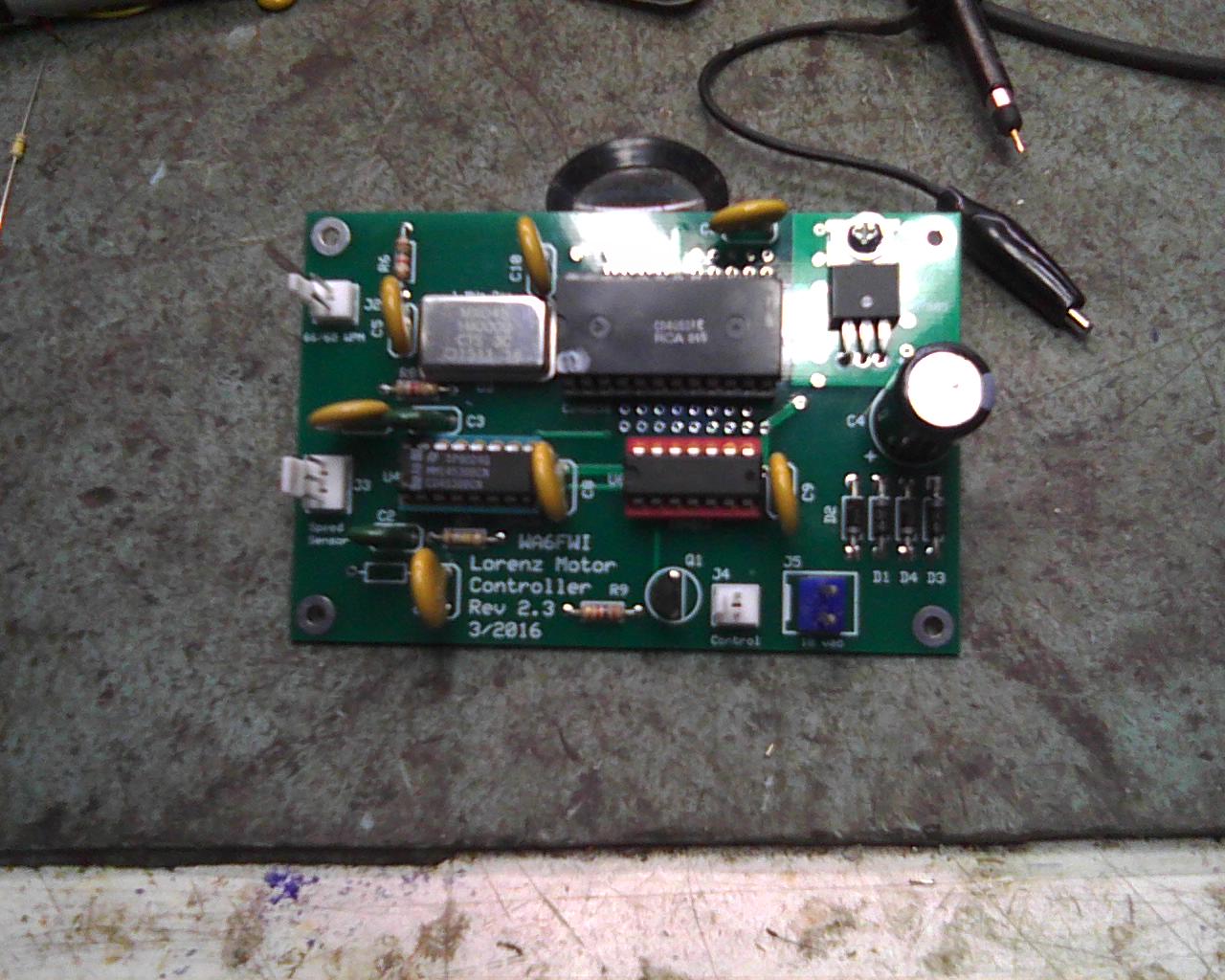

A few years back I designed a two speed motor controller
for my Lorenz Lo-15c.

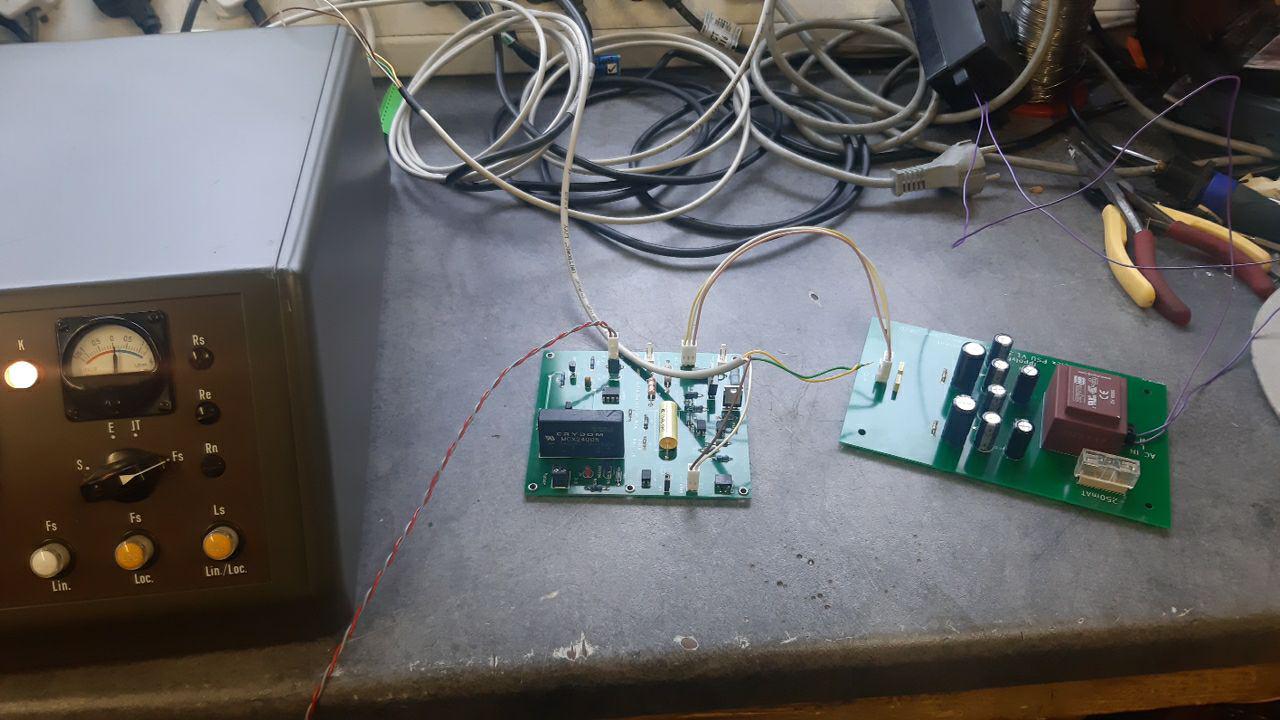

Last year I did a signal converter for Sen Williams to go
from on/off keying to bi-polar for his Creed TTYs.

All I need is a schematic.
And you get the PC Board schematic redrawn for ExpressPCB
and the PC Board layouts.

And no, I don't charge for this.
Although, I'm not too proud to accept donations, if you're
feeling guilty about it.

--
"I am a river to my people."
Jeff-1.0
WA6FWI
www.foxsmercantile.com

-------------- next part --------------
A non-text attachment was scrubbed...
Name: Motor speed controller PCB-1.jpg
Type: image/jpeg
Size: 202769 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20210124/5f94bce9/attachment.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: bi-polar converter.jpg
Type: image/jpeg
Size: 123896 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20210124/5f94bce9/attachment-0001.jpg>
