I scanned the Model 33 nameplate I have and placed the images in this
folder:
https://drive.google.com/drive/folders/1nhXSkJs2X0nzf5m1BakSeGMC_6FMpk0i
They were scanned at 600dpi in "True Gray".

Hopefully this will help with letter sizing and placement.
My $15 caliper says the thickness is between 1/32 and 3/64 inches or 0.95 mm

---
Mike A

On Wed, Feb 12, 2020 at 12:17 PM mike <m.zahorik at sbcglobal.net> wrote:

> Thanks for the pictures. I'm sure I can make something that will fit and
> maybe I can print off TELETYPE like the original and glue it on for the
> time being.
>
>
>
> Sure I can help with connecting the 33 to the PDP8E. I'll have to look at
> the drawings I made a few years ago and let you know. But 1st, do you have
> the UART M8650 in your PDP8? There are two different kinds. One will do 110
> baud and the other will not. Don't remember exactly right now, but I'll
> look and get back. Thanks again for the pictures.
>
>
>
> Mike Zahorik
> (414) 254-6768
> ------------------------------
>
> *From:* Paul Heller [mailto:paul0926 at comcast.net]
> *Sent:* Wednesday, February 12, 2020 12:01 PM
> *To:* mike
> *Cc:* Greenkeys
> *Subject:* Re: [GreenKeys] 33ASR Nameplate
>
>
>
> Hi Mike,
>
>
>
> I don’t have the ability to measure the thickness at the moment, but here

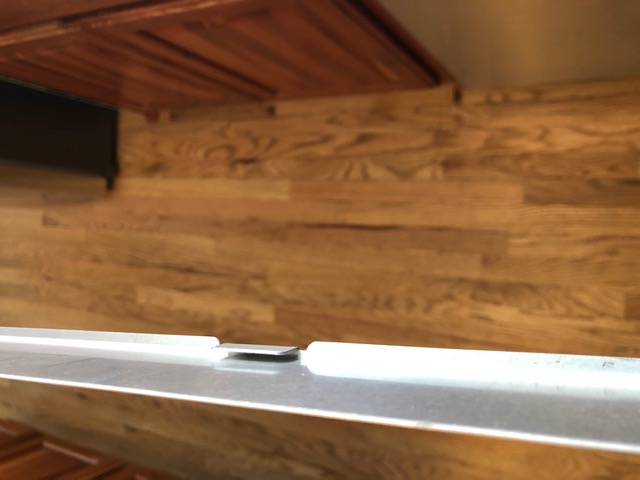

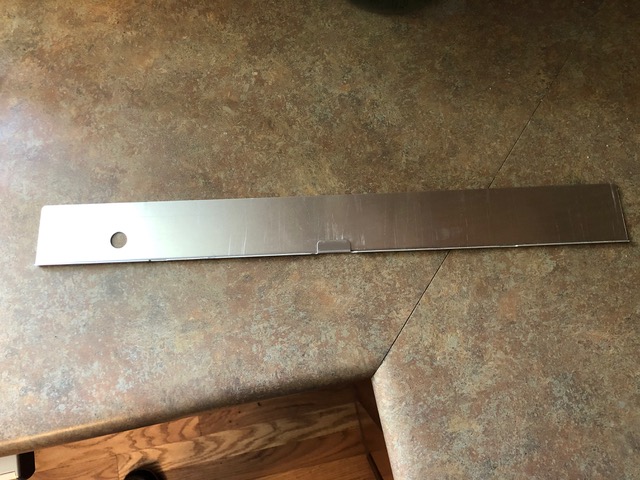

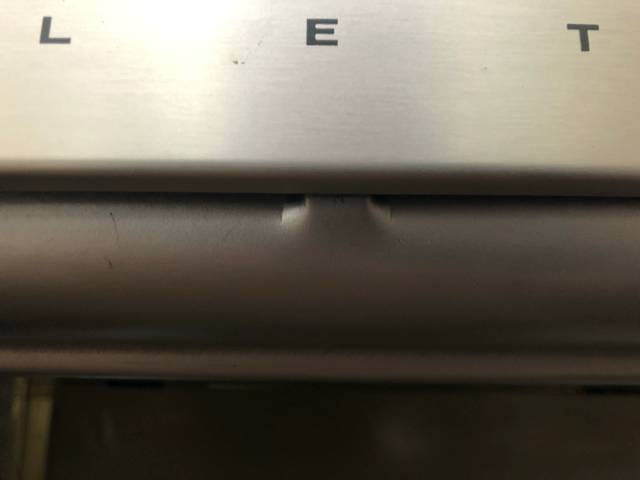

> are a couple of photos.  There is not much to it. There is a lip on the
> bottom that fits over the two protrusions on the machine (see photo), and
> there is a tab bent up in the middle. That’s what holds it.
>
>
>
> Question on how you hook it to the PDP-8E. My PDP-8E has the right card in
> it with a flat molex connector with 8 or so connectors.  But he wiring and
> colors have me stumped. Could you share some info on how to wire things up?
> I assume four wires, TX and RX. But which is which? Not sure about the
> punch control.
>
>
>
>
>
> Paul
> W2TTY
>
> i-Telex: 80003
>
> ITTY:                     HTTP://INTERNET-TTY.NET:8000/ITTY
> <HTTP://internet-tty.net:8000/ITTY>
>
> ITTY100:        HTTP://INTERNET-TTY.NET:8010/ITTY100
> <HTTP://internet-tty.net:8010/ITTY100>
> AUTOSTART:  HTTP://INTERNET-TTY.NET:8030/AUTOSTART
>
> EUROPE:        HTTP://INTERNET-TTY.NET:8040/EUROPE
> <HTTP://internet-tty.net:8040/EUROPE>
>
>
>
>
>
>
>
>
>
> On Feb 11, 2020, at 5:48 PM, Gil Smith <gil at baudot.net> wrote:
>
>
>
> This was caught by the greenkeys system as a bounce for some reason -- I
> am forwarding this on.
>
>
>
> gil
>
>
>
> gil smith, AF7EZ
> greenkeys moderator
> gil at baudot.net
>
>
>
> -------- Original Message --------
> Subject: 33ASR Nameplate
> From: "mike" <m.zahorik at sbcglobal.net>
> Date: Mon, February 10, 2020 1:08 pm
> To: "'GreenKeys'" <greenkeys-bounces at mailman.qth.net>
>
> I have a 33ASR that I use with my DEC PDP8E computer. It is a rescue from
> the dumpster. It toke me a year or so to get it to work and have been using
> it for a few years. I do not have the front nameplate and thought that I'd
> like to add one to make it look a little better, but have not been able to
> find one. I thought of making my own from some sheet aluminum. I'm not
> sure of how it mounts. There doesn't seem to be any mounting screws. Could
> it fit in the slots at the bottom and get pinched in somehow? How thick is
> the original nameplate? Thanks
>
> Mike Zahorik
>
> (414) 254-6768
>
