Hi Mike,

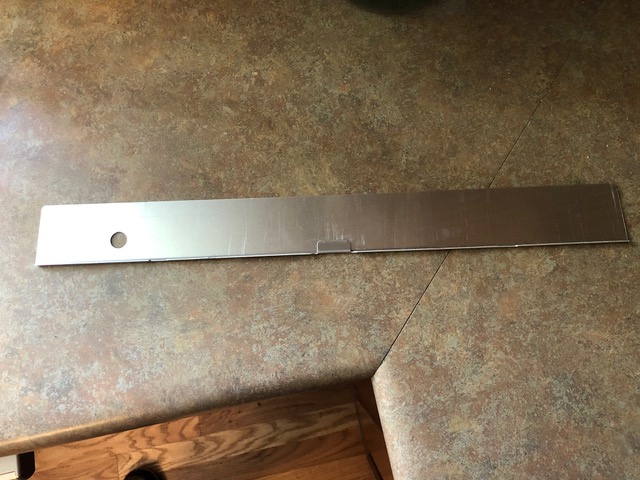

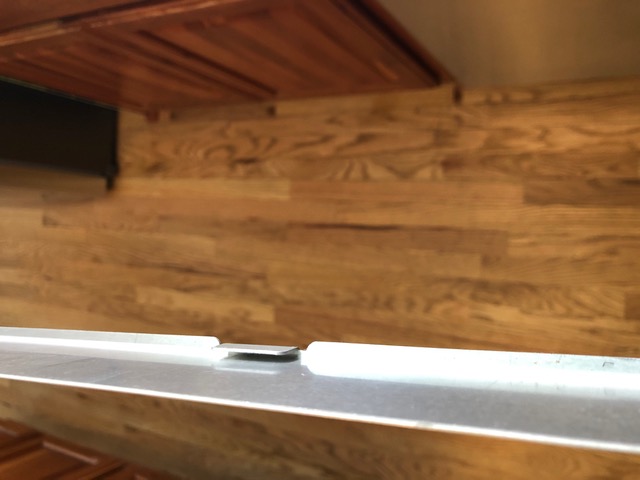

I don’t have the ability to measure the thickness at the moment, but here are a couple of photos.  There is not much to it. There is a lip on the bottom that fits over the two protrusions on the machine (see photo), and there is a tab bent up in the middle. That’s what holds it.

Question on how you hook it to the PDP-8E. My PDP-8E has the right card in it with a flat molex connector with 8 or so connectors.  But he wiring and colors have me stumped. Could you share some info on how to wire things up? I assume four wires, TX and RX. But which is which? Not sure about the punch control.


Paul
W2TTY
i-Telex: 80003

ITTY:  		HTTP://INTERNET-TTY.NET:8000/ITTY
ITTY100:  	HTTP://INTERNET-TTY.NET:8010/ITTY100
AUTOSTART:  HTTP://INTERNET-TTY.NET:8030/AUTOSTART
EUROPE: 	HTTP://INTERNET-TTY.NET:8040/EUROPE








> On Feb 11, 2020, at 5:48 PM, Gil Smith <gil at baudot.net> wrote:
>
> This was caught by the greenkeys system as a bounce for some reason -- I am forwarding this on.
>
> gil
>
> gil smith, AF7EZ
> greenkeys moderator
> gil at baudot.net <mailto:gil at baudot.net>
>
>
> -------- Original Message --------
> Subject: 33ASR Nameplate
> From: "mike" <m.zahorik at sbcglobal.net <mailto:m.zahorik at sbcglobal.net>>
> Date: Mon, February 10, 2020 1:08 pm
> To: "'GreenKeys'" <greenkeys-bounces at mailman.qth.net <mailto:greenkeys-bounces at mailman.qth.net>>
>
> I have a 33ASR that I use with my DEC PDP8E computer. It is a rescue from the dumpster. It toke me a year or so to get it to work and have been using it for a few years. I do not have the front nameplate and thought that I'd like to add one to make it look a little better, but have not been able to find one. I thought of making my own from some sheet aluminum. I'm not sure of how it mounts. There doesn't seem to be any mounting screws. Could it fit in the slots at the bottom and get pinched in somehow? How thick is the original nameplate? Thanks
> Mike Zahorik <>
> (414) 254-6768
> ______________________________________________________________
> GreenKeys mailing list
> Home: http://mailman.qth.net/mailman/listinfo/greenkeys
> Help: http://mailman.qth.net/mmfaq.htm
> Post: mailto:GreenKeys at mailman.qth.net
>
> 2002-to-present greenkeys archive: http://mailman.qth.net/pipermail/greenkeys/
> 1998-to-2001 greenkeys archive: http://mailman.qth.net/archive/greenkeys/greenkeys.html
> Randy Guttery's 2001-to-2009 GreenKeys Search Tool: http://comcents.com/tty/greenkeyssearch.html
>
> This list hosted by: http://www.qsl.net
> Please help support this email list: http://www.qsl.net/donate.html
> Message delivered to paul0926 at comcast.net
