[GreenKeys] Mite in Orange, CT - $50

[Ethan Blanton]

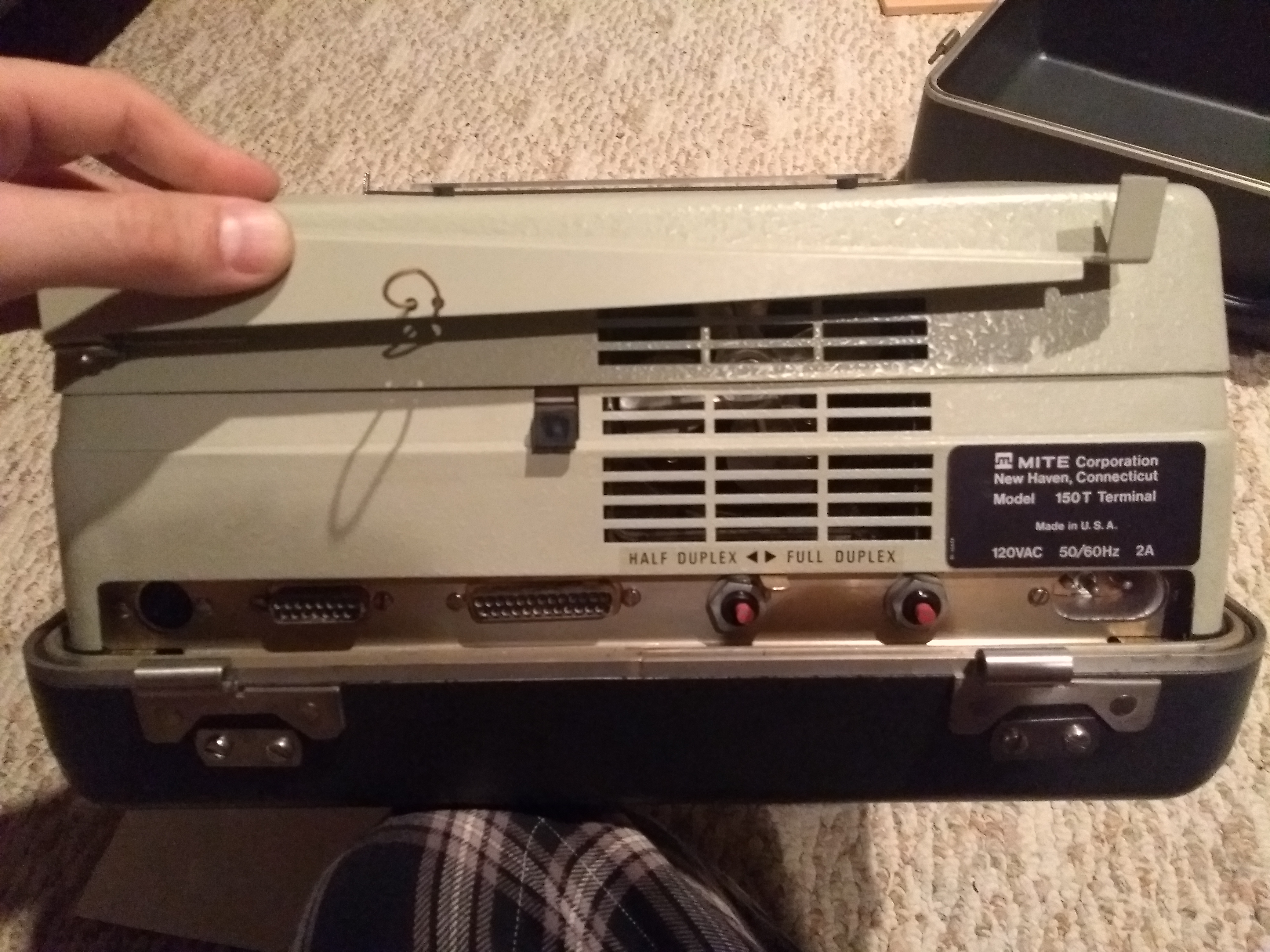

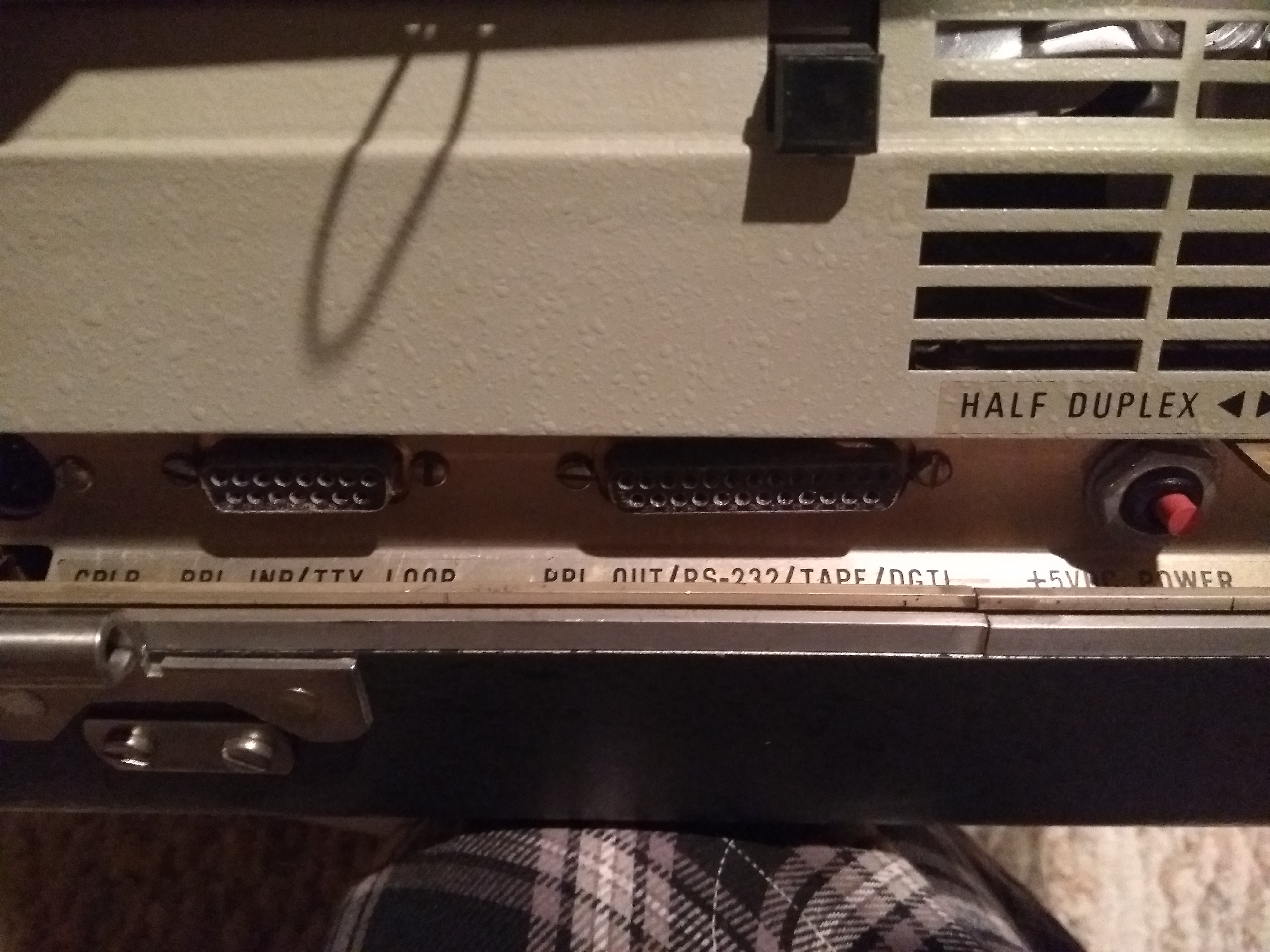

Here are some shots of the back of the unit with the name plate and connectors.  The DIN connector on the far left goes to a telephone audio coupler that stores in the lid of the case.  The power cord is the old rounded-end Belden connector like used on HP test equipment (and I stole the power cord from my 606).  The two other data connectors are standard D-Sub 15 and 25 pin, but I don't know their pinouts.

Ethan

On August 29, 2020 10:04:23 PM EDT, Jim Haynes <jhhaynes at earthlink.net> wrote:
>On Sat, 29 Aug 2020, Ethan Blanton wrote:
>
>> If anyone has manuals or documentation, or knows where to find
>tractor
>> feed paper that's somewhat narrower than standard printer paper, or
>> knows anything about the connector pinouts, I'd love to hear from
>you.
>>
>The narrower paper is standard for pinfeed Teletype as well.  the paper
>is 8 1/2" wide including the margins with the holes.  Some people on
>this list from time to time have published sources of this kind of
>paper,
>and I seem to recall one that is fairly recent.  The modern pinfeed
>printers use paper that is 9 1/2" wide so the strips with the feed
>holes
>can be torn off, leaving 8 1/2 x 11 inch paper.
>
>If only we had a time machine and could go back and whisper in Sterling
>Morton's ear when he was designing the Model 15 printer, "Make the
>platen
>an inch wider!"  Teletype did come up with a mod kit for Model 35 to
>accomodate the wider paper.
>
>As for the other questions, others on the list are more Mite-savvy than
>I am, but I'm unfamiliar with any version having a DB-25 connector and
>those options you mention.  The two military versions I know a little
>about are the TGC-14 and the UGC-41.  You can google for those and
>probably come up with complete or partial manuals.  Wonder if yours is
>yet another military version, or if it was specially modified by
>somebody else for some other purpose.  Anything on the nameplate that
>would suggest a model number or something?

--
Sent from my Android device with K-9 Mail. Please excuse my brevity.
