[GreenKeys] Model 28 Keyboard arrangement

[til128 at juno.com]

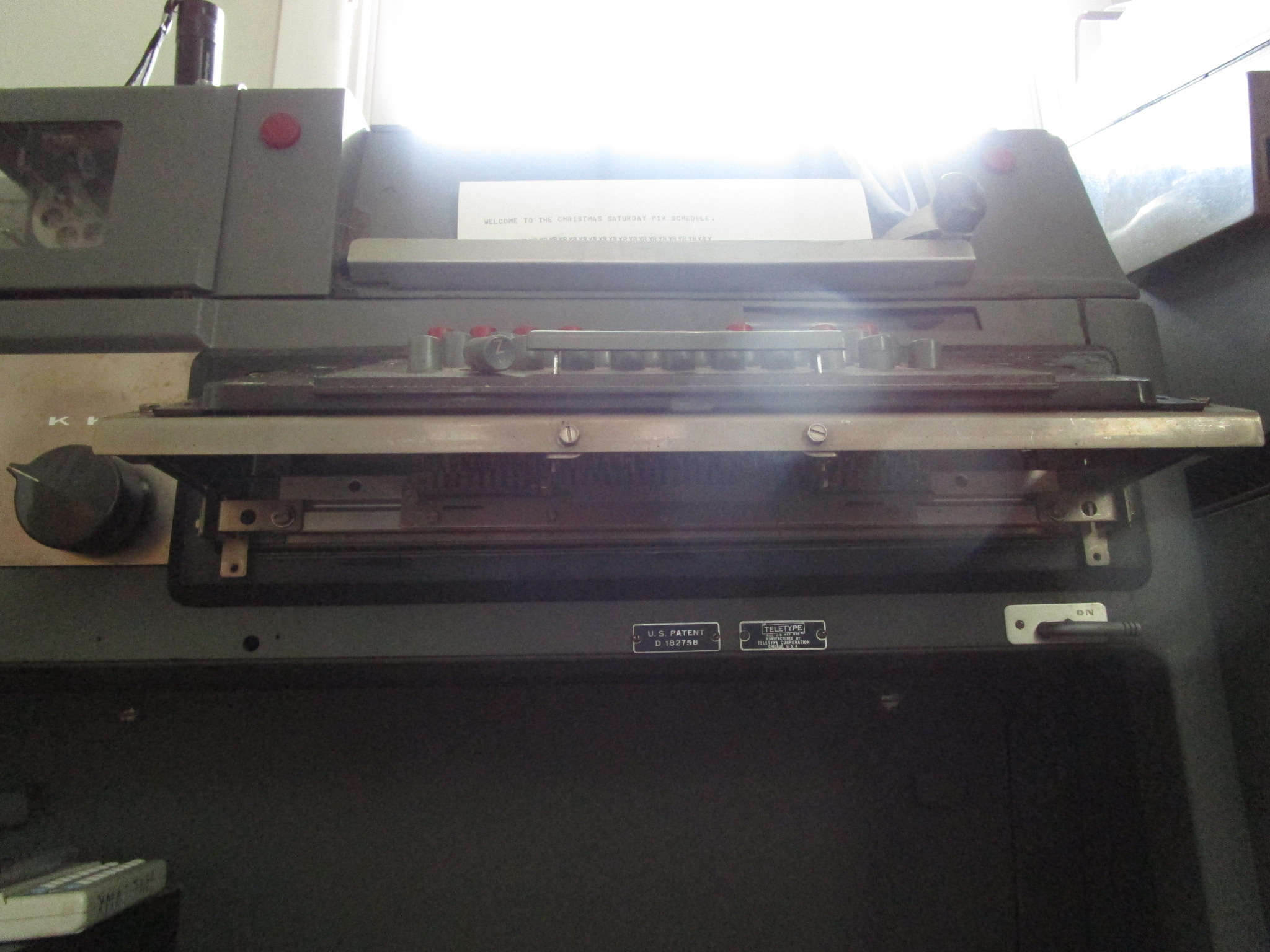

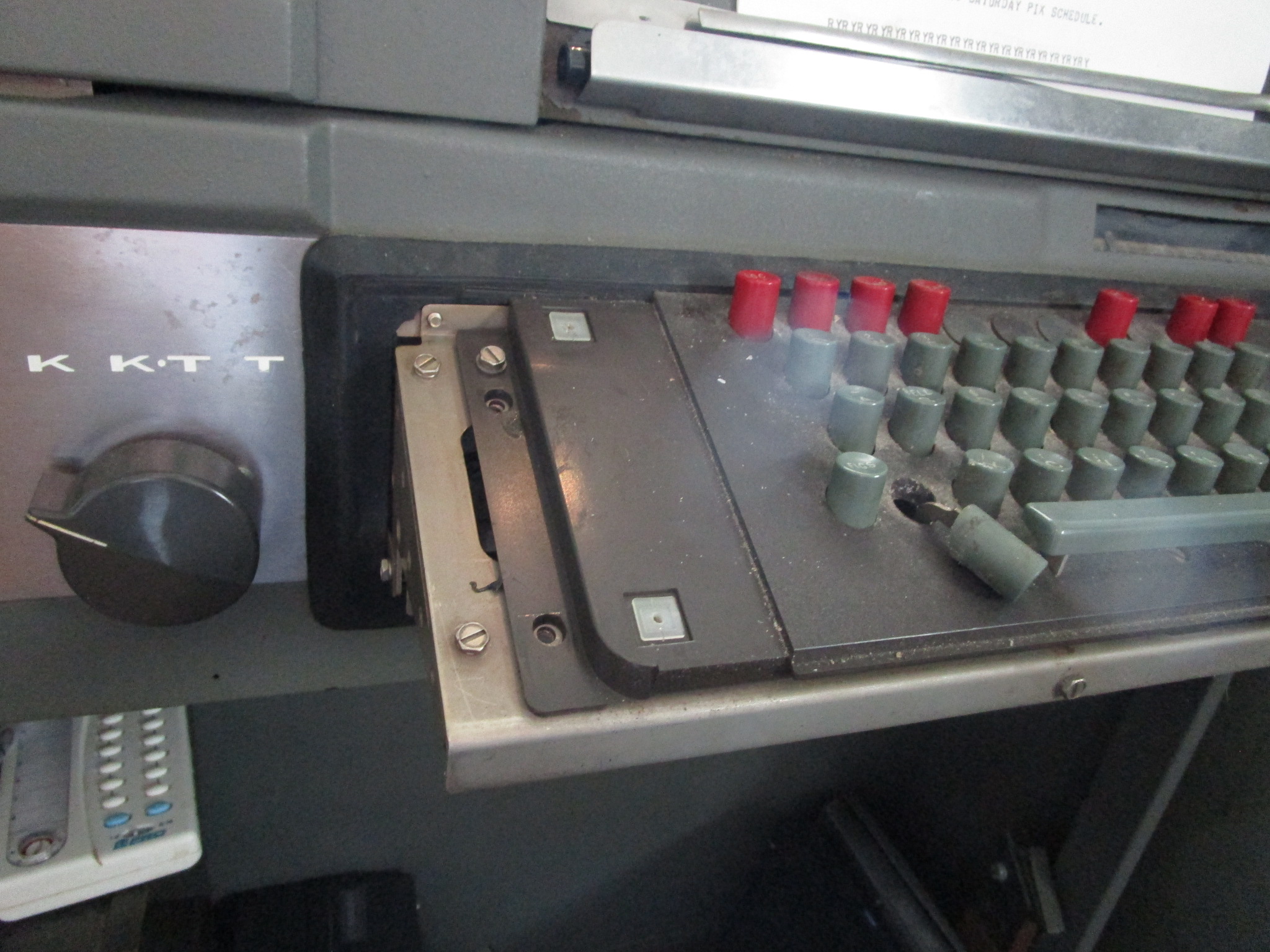

If you want to see and feel what you are doing, remove the 4 screws for the instruction plates and then remove the 6 screws holding the cover on.

See pix.

Tom


Please note: message attached

From: Nick England <navy.radio at gmail.com>
To: "John, W9DDD" <w9ddd at tapr.org>, Greenkeys <greenkeys at mailman.qth.net>
Subject: Re: [GreenKeys] Model 28 Keyboard arrangement
Date: Sat, 25 Apr 2020 13:50:49 -0400


____________________________________________________________
Sponsored by https://www.newser.com/?utm_source=part&utm_medium=uol&utm_campaign=rss_taglines_more

Kim Jong Un Is Said to Be 'Vegetative' or Dead
http://thirdpartyoffers.juno.com/TGL3131/5ea47c40402a7c3f2ea7st04duc1
Now, the Easing Begins
http://thirdpartyoffers.juno.com/TGL3131/5ea47c4026aee7c3f2ea7st04duc2
Trump Didn't Like It&mdash;But This State Gets to Reopen
http://thirdpartyoffers.juno.com/TGL3131/5ea47c404926d7c3f2ea7st04duc3
-------------- next part --------------
A non-text attachment was scrubbed...
Name: IMG_0695.JPG
Type: image/jpeg
Size: 795636 bytes
Desc: IMG_0695.JPG
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20200425/3d341f12/attachment-0002.jpe>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: IMG_0694.JPG
Type: image/jpeg
Size: 695602 bytes
Desc: IMG_0694.JPG
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20200425/3d341f12/attachment-0003.jpe>
-------------- next part --------------
Tom Tillson says leave the cover plate on. I just tried a quick experiment
removing/replacing four keys from different rows, and, by Jove, I think
he's got it. Just tilt the keyboard up on its back and you've got access.
Maybe upside down would work too.

But if you do it that way, you'll miss the challenge and the thrill of
victory of simultaneously getting all those keys into all those holes. One
will perversely drop out while you're inserting another one -  like reverse
whack-a-mole..

Cheers,
Nick England K4NYW
www.navy-radio.com


On Sat, Apr 25, 2020 at 1:33 PM Ethan Blanton <elb at kb8ojh.net> wrote:

> John, W9DDD wrote:
> > Getting the top plate back on is tricky.  I've since seen a suggestion
> that
> > you can make it easier getting all the keytops back in their respective
> > holes by turning the keyboard upside down.  I'll try that next time (if
> > there is one).
>
> I've removed and reinstalled the plate twice; it was certainly a
> frustrating process, but I found that I was able to rotate the plate
> down in one direction or the other (top-row-first or bottom-row-first)
> and insert the keys across the row one at a time; after rotating a
> tiny bit further they would be trapped enough to stay put while I did
> the next row.  It took a couple of tries, but it worked.
>
> I'd be happy to try something like upside-down next time, though, if
> it's easier.
>
> Ethan
