[GreenKeys] Rectifier voltage question...

[Marc Howard]

If I were you I’d replace that diode with a silicon diode.  Seleniums were
never very good and when they get old they can produce small amounts of
toxic gas (as well as lots of ripple).

In other collector communities (radio, jukebox) replacing them with modern
diodes is not considered sacrilege.   Often the diodes are left in place
mechanically but discretely bypassed with a new diode.

Marc Howard

On Tue, Sep 17, 2019 at 7:32 PM E. <hanyou at xsmail.com> wrote:

>
> Hi all,
>
> Question about a rectifier that I recently partially rewired (added fuses
> for circuit protection).  It’s putting out 137VDC.  On the DC side of a 19
> (for the punch / 14TD, not the line loop), will 137VDC cause problems when
> it’s supposed to be 120VDC?  My audio engineer wife says no, but just want
> to make sure ;) .
>
> I’m assuming that it’s even truer with the line loop - that it for sure
> has to be 120VDC ;o ?
>

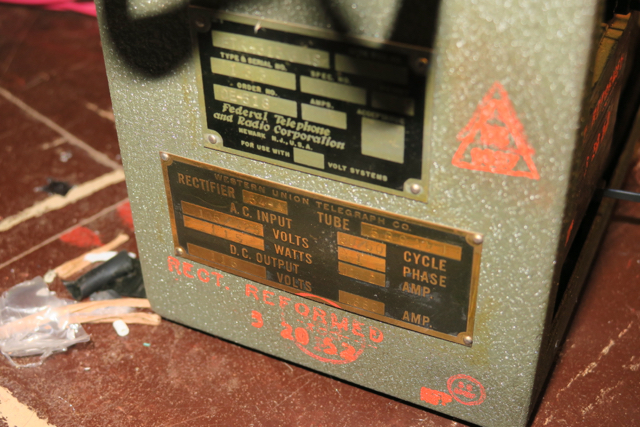

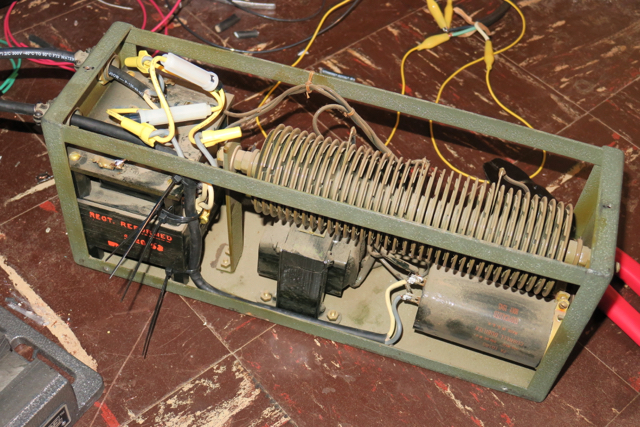

> Some photos of the beast attached - looks like something from Star Wars ;p
> .  Anywho, thanks ^^ !!!~
>
>
