[GreenKeys] Loop supplies

[John, W9DDD]

Good morning Steve,

I suppose I should remove the word draft since the boards are made and
it should be the as-built version.

You'll see the right hand side of the schematic has nothing to do with

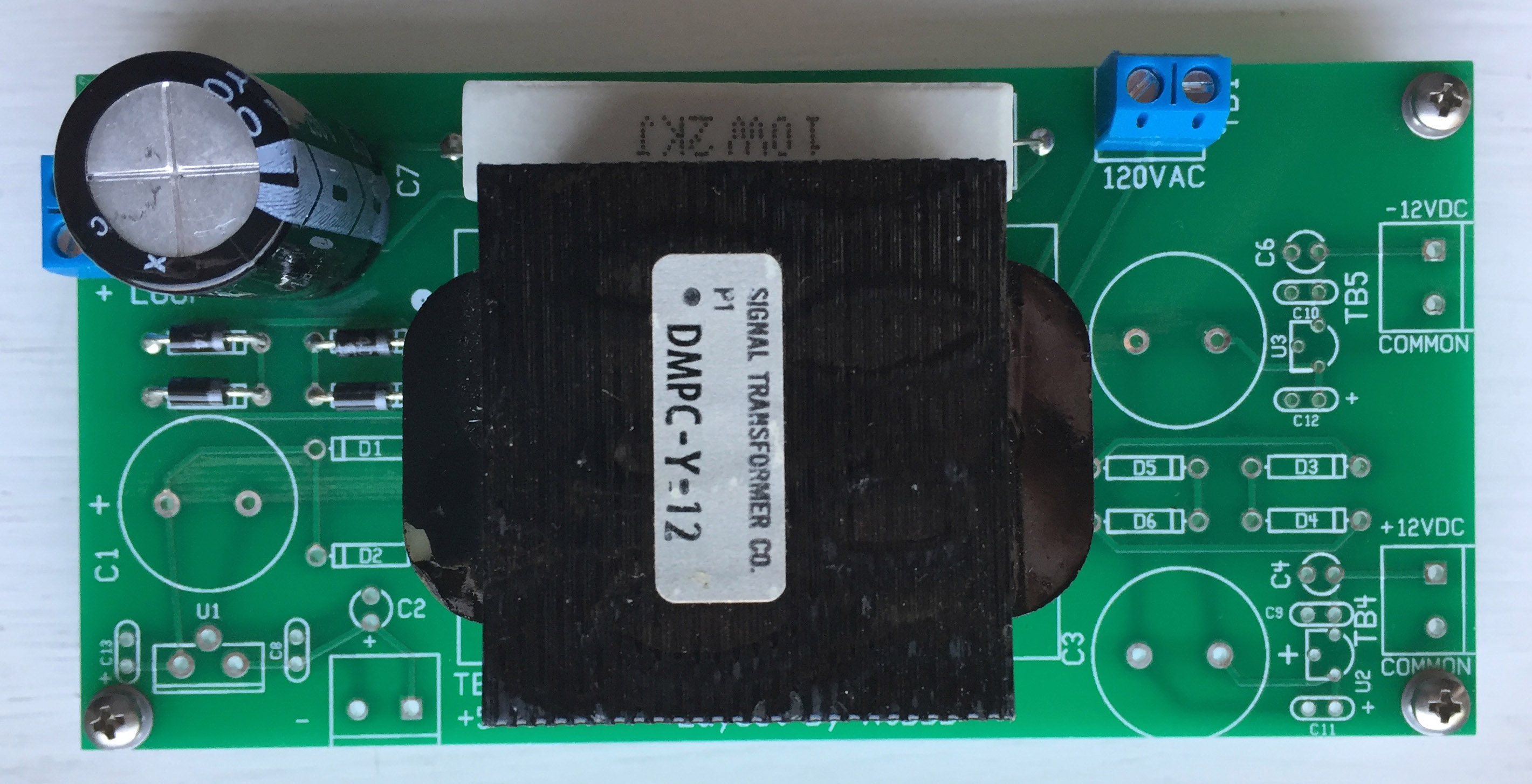

the loop.  And the picture of an assembled units shows that side
unpopulated.

As long as the windings existed, I thought I may as well lay out the
circuitry for using them if desired.  Actually one could use this and
not populate the loop side if they wanted a +5, +12, -12 supply to power
some piece of antique equipment.

Obviously one needs to add a primary side fuse and install in some sort
of enclosure.

The original intention was to be able to attach this to a blank LESU
plate, but somewhere along the line that idea got lost.  Didn't realize
it until the boards arrived.  AW shucks.

John, W9DDD
Ich habe dreimal abgeschnitten uns jetzt zu kurtz. (I cut it off 3 times
and it's still too short.)

On 9/8/2019 3:43 AM, Steve Garrison wrote:
> Yes, post!  Always good to see solutions.
>
> Steve G./N4TTY
> Sent from my iPhone
>
>> On Sep 7, 2019, at 3:33 PM, John, W9DDD <w9ddd at tapr.org> wrote:
>>
>> Thanks to a generous benefactor, I have a few loop supply kits.  The cost is really really low.
>>
>> If there is interest I'll post the schematic and picture.
>>
>>
>> --
>> John, W9DDD
>> Ich habe dreimal abgeschnitten uns jetzt zu kurtz. (I cut it off 3 times and it's still too short.)
>> ______________________________________________________________
>> GreenKeys mailing list
>> Home: http://mailman.qth.net/mailman/listinfo/greenkeys
>> Help: http://mailman.qth.net/mmfaq.htm
>> Post: mailto:GreenKeys at mailman.qth.net
>>
>> 2002-to-present greenkeys archive: http://mailman.qth.net/pipermail/greenkeys/
>> 1998-to-2001 greenkeys archive: http://mailman.qth.net/archive/greenkeys/greenkeys.html
>> Randy Guttery's 2001-to-2009 GreenKeys Search Tool: http://comcents.com/tty/greenkeyssearch.html
>>
>> This list hosted by: http://www.qsl.net
>> Please help support this email list: http://www.qsl.net/donate.html
>> Message delivered to steve.n4tty at gmail.com
-------------- next part --------------
A non-text attachment was scrubbed...
Name: TTY-PS-sch.pdf
Type: application/pdf
Size: 95276 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20190908/d2e9d203/attachment-0001.pdf>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: LOOP-PS-top.jpg
Type: image/jpeg
Size: 665565 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20190908/d2e9d203/attachment-0001.jpg>
