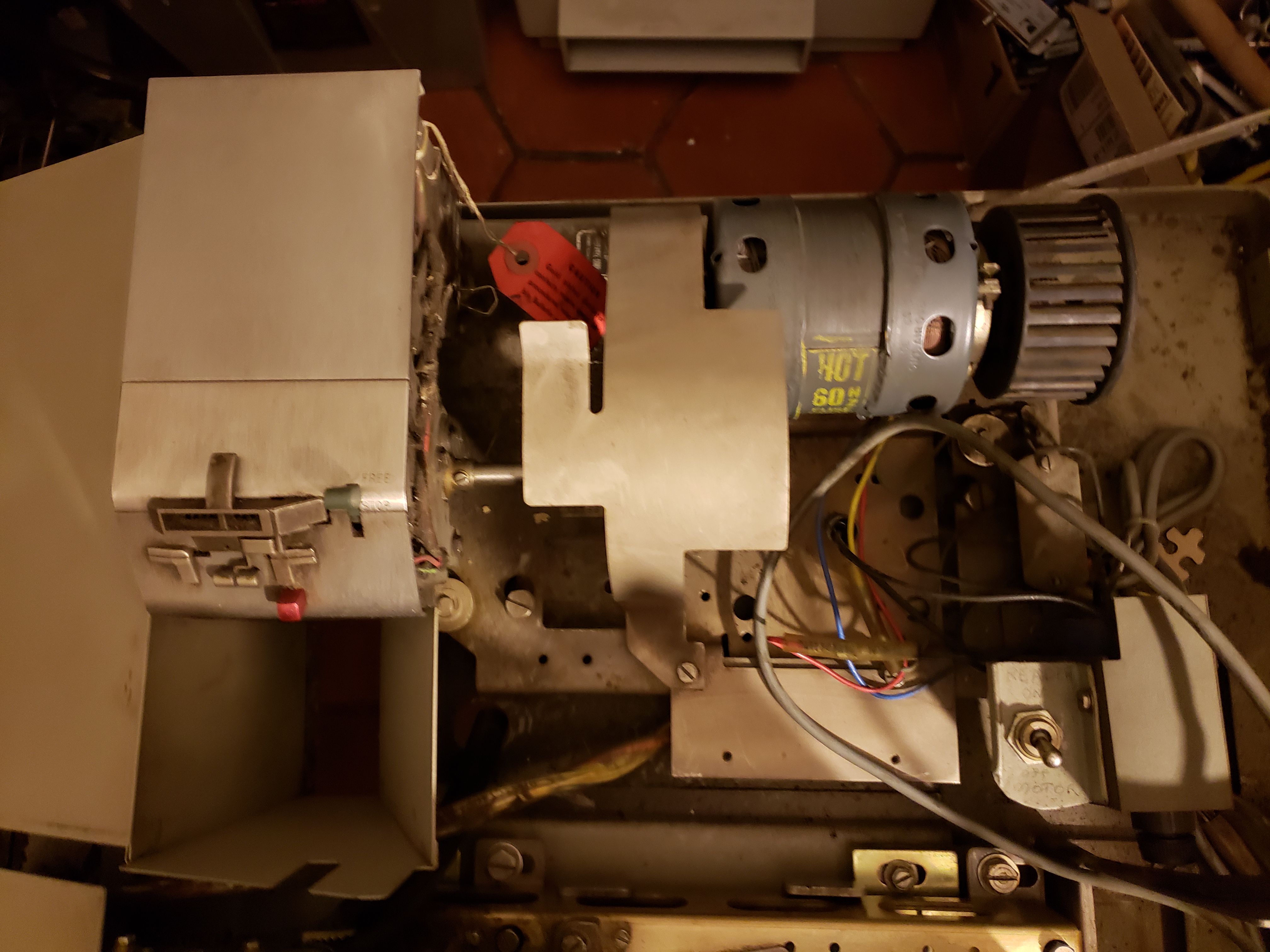

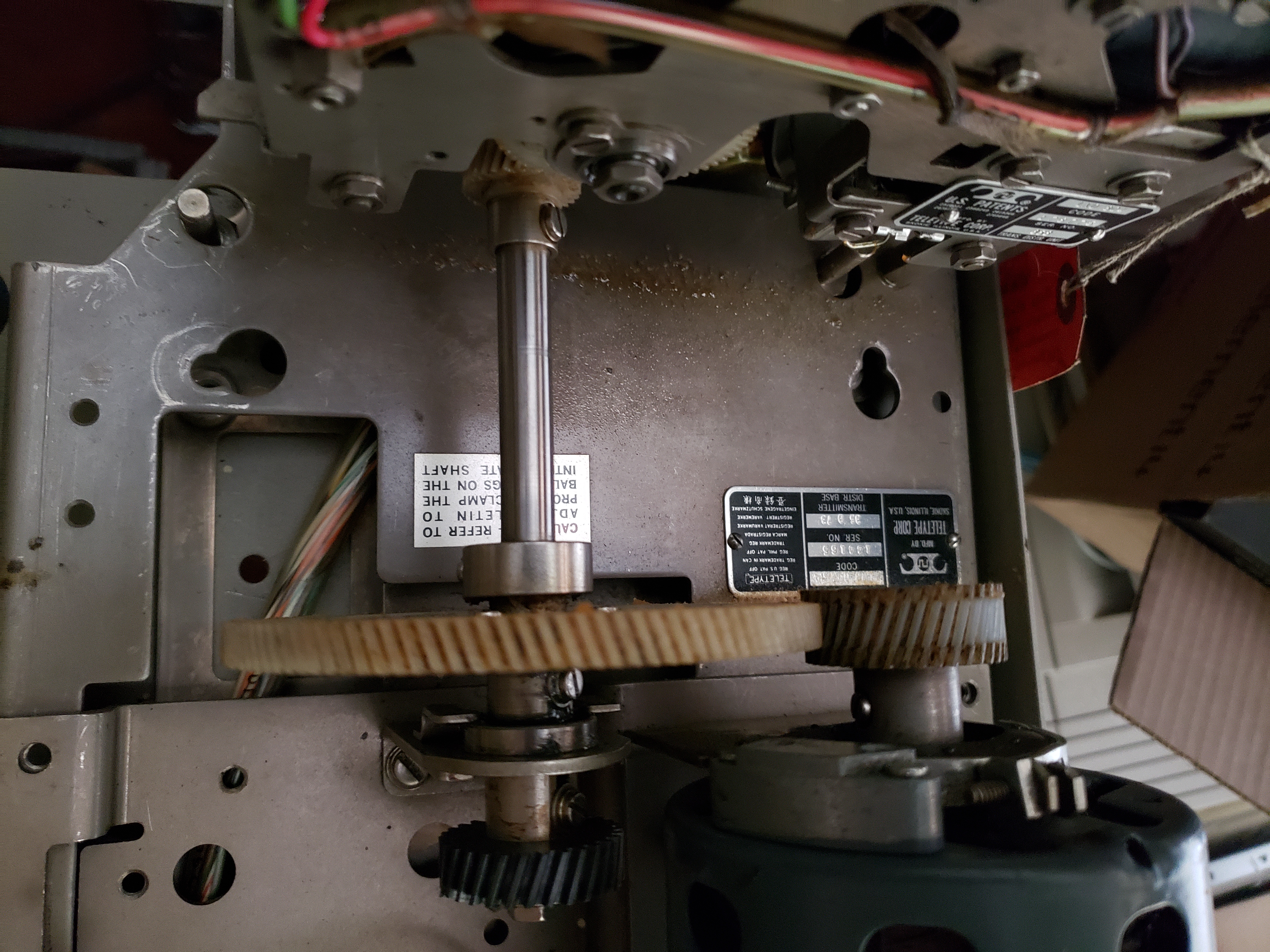

Photos attached.    Looks like you are missing a few parts.   Maybe someone
on the list will give you the shaft! ;-)

Clay

KG7LWX





From: greenkeys-bounces at mailman.qth.net
[mailto:greenkeys-bounces at mailman.qth.net] On Behalf Of Ken Wiebe
Sent: Sunday, June 23, 2019 6:56 PM
To: Thomas Tillson via GreenKeys
Subject: [GreenKeys] 35 ASR TD Drivetrain



Does anyone know how the TD is driven?  A picture would be nice if anyone
has one.



I appear to be missing a motor, pinion, gears, shaft, brackets, bearings,
etc.  All I have is the TD and the base-related parts.



On the base there is a cradle where the motor apparently goes.  But the axis
of the motor shaft does not line up with the TD gear, so there must be some
transfer shaft and more gears.  Either that, or the motor cradle is in the
wrong place (?).



I did find some exploded views but there are several variants and I'm not
sure which one (if any) applies in my case.



I attd a photo of what I described above.



The TD is LXD812, base is LCXB806.



Thanks,



Ken
