[GreenKeys] 35 ASR TD Drivetrain

[Ken Wiebe]

Does anyone know how the TD is driven? A picture would be nice if anyone has one.

I appear to be missing a motor, pinion, gears, shaft, brackets, bearings, etc. All I have is the TD and the base-related parts.

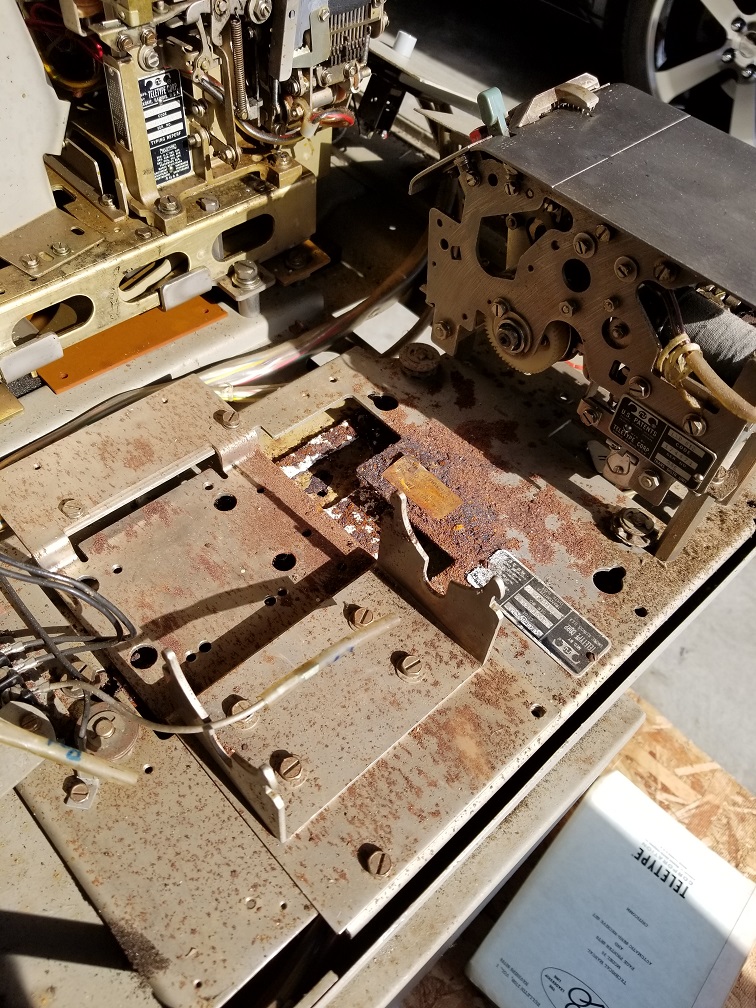

On the base there is a cradle where the motor apparently goes. But the axis of the motor shaft does not line up with the TD gear, so there must be some transfer shaft and more gears. Either that, or the motor cradle is in the wrong place (?).

I did find some exploded views but there are several variants and I'm not sure which one (if any) applies in my case.

I attd a photo of what I described above.

The TD is LXD812, base is LCXB806.

Thanks,

Ken
