[GreenKeys] this looks neat. Is it usable in anyway?
Andreas Mueller
dd1lm at t-online.de
Wed Jun 12 16:26:57 EDT 2019
Hi Peter,
assuming you have a DB25-connector the pinout is similar to the RS-232
pinout:
1 - protective gnd
2- TxD
3 - RxD
4 - RTS
5 - CTS
7 - signal gnd
there are some signals more, but are not used in any case (paper low,
ARQ, ...)

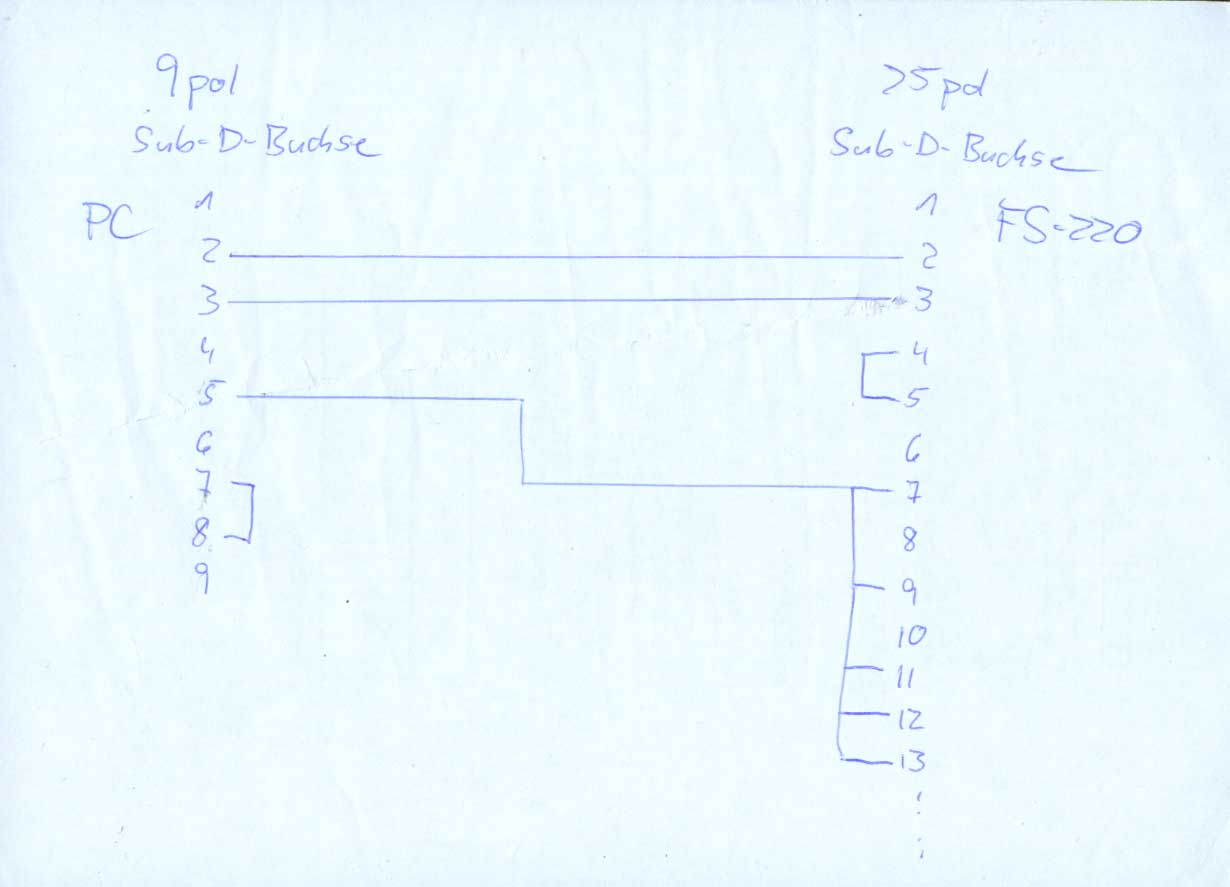

If you make a cable with the drawing in the attachment (both connectors
are female), it should talk to a pc. Don't forget to switch in LIN-mode...
Regards
Andreas, DD1LM
Am 12.06.2019 um 20:47 schrieb Peter Gottlieb:
> I found the fault and repaired it so now the unit is working.
>
> Does anyone know the V.10 connector pinout?
>
> I looked at the pins with a scope and while a couple have -6 or +6
> volts none have any transmit data when I press the keys.
>
>
> Peter
>
> On May 24, 2019, at 4:08 PM, Andreas Mueller <dd1lm at t-online.de
> <mailto:dd1lm at t-online.de>> wrote:
>
>> Hi Peter,
>>
>> which Interface Card do you have - line current or V.10? As you are mentioning a DB25 connector, I assume you have the V.10 Interface (which is basically RS-232).
>> The STÖ-LED is a fault indication (STÖ means Störung - fault).
>> There is no on/off-switch. When the unit operable (without fault), it would work in local mode after pressing the key LOC (light in the key is lit).If you press LIN, you should be online and talk to an HF- modem (for example). Receiving should be possible in any mode if there is data input on the RxD pin.
>> Do you have a 24V-power supply or a mains power supply?
>>
>> Regards,
>> Andreas, DD1LM
>>
>>
>> Am 21.05.2019 um 08:41 schrieb Henning Treumann via GreenKeys:
>>> Peter,
>>>
>>> I recommend to join our www.telexforum.de <http://www.telexforum.de>
>>> . It's kinda European counterpart of Greenkeys in
>>> form of a web based forum.
>>> Although main language is German we also have an international
>>> section for English language postings.
>>> Don't hesitate to ask your question there.
>>> We have quite a few members there who are using FS200s and are
>>> familar with their
>>> problems and know how to fix them.
>>>
>>> 73
>>> Henning DF3OE
>>> i-Telex: 925302
>>>
>>> www.i-telex.net <http://www.i-telex.net>
>>> www.telexforum.de <http://www.telexforum.de>
>>>
>>>
>>>
>>> Am Di., 21. Mai 2019 um 05:17 Uhr schrieb Peter Gottlieb
>>> <kb2vtl at gmail.com <mailto:kb2vtl at gmail.com>>:
>>>
>>> How does one turn this unit on? I followed the wires, I presume
>>> red is positive
>>> and blue negative, applied 24 volts, the lights come on for a
>>> moment then
>>> everything off except for a red STO (the O has an umlaut) LED on
>>> the front.
>>> What does this mean?
>>>
>>> Is there a pin on the DB25 to turn the unit on? I can't find
>>> any switch.
>>>
>>> Peter
>>>
>>>
>>> On 4/13/2019 12:08 PM, Henning Treumann via GreenKeys wrote:
>>> > Weight is about 25 kg ~ 50 lbs I would estimate.
>>> >
>>> > Henning
>>> >
>>> >
>>> > Am Sa., 13. Apr. 2019 um 17:08 Uhr schrieb Peter Gottlieb
>>> <hpnpilot at gmail.com <mailto:hpnpilot at gmail.com>
>>> > <mailto:hpnpilot at gmail.com <mailto:hpnpilot at gmail.com>>>:
>>> >
>>> > Ok. I have no use for ASCII and assumed from the photos
>>> showing 5 level
>>> > tape that’s all the machine did.
>>> >
>>> > I have one on the way, so will play presuming it makes it,
>>> and makes it in
>>> > usable condition.
>>> >
>>> > How heavy are these units?
>>> >
>>> >
>>> > Peter
>>> > KB2VTL
>>> >
>>> > On Apr 13, 2019, at 7:01 AM, Henning Treumann via GreenKeys
>>> > <greenkeys at mailman.qth.net
>>> <mailto:greenkeys at mailman.qth.net>
>>> <mailto:greenkeys at mailman.qth.net
>>> <mailto:greenkeys at mailman.qth.net>>> wrote:
>>> >
>>> >> It is a 5 level ONLY machine. No ASCII at all.
>>> >>
>>> >> But all machines are equipped with tape punch and readet.
>>> >>
>>> >> Henning DF3OE
>>> >> i-Telex 925302
>>> >>
>>> >> Andreas Müller <dd1lm at t-online.de
>>> <mailto:dd1lm at t-online.de> <mailto:dd1lm at t-online.de
>>> <mailto:dd1lm at t-online.de>>> schrieb am
>>> >> Sa., 13. Apr. 2019 12:00:
>>> >>
>>> >> Hi,
>>> >>
>>> >> the FS220Z does work 5 bit Baudot code. I do not
>>> remember right now
>>> >> if it can
>>> >> be switched to 7 or 8 bit ASCII as well.
>>> >> The interface board can be changed between RS-232
>>> (V.10) and line
>>> >> current.
>>> >> There are different types of power supply: most of
>>> them work on 220V
>>> >> AC, but
>>> >> there is a 24V DC power supply also. But I have never
>>> seen one with
>>> >> my own
>>> >> eyes...
>>> >>
>>> >> Regards,
>>> >> Andreas, DD1LM
>>> >>
>>> >>
>>> >> Am Donnerstag, 11. April 2019, 04:50:47 schrieb Peter
>>> Gottlieb:
>>> >> > RS232 is a signal level spec, 5 level is a
>>> character encoding.
>>> >> >
>>> >> > Do you mean the FS 200Z is an 8 level ASCII RS-232
>>> device? Or is
>>> >> it just 5
>>> >> > level Baudot with a RS-232 signal level interface?
>>> >> >
>>> >> > Peter
>>> >> > KB2VTL
>>> >> >
>>> >> > On 4/10/2019 4:00 PM, Chuck wrote:
>>> >> > > This unit is a FS 200Z which has an RS-232
>>> output/input. I have been
>>> >> > > looking at this unit for use here in the States
>>> and know we have
>>> >> beat it
>>> >> > > to death on how to go from RS-232 in/out of the
>>> Teleprinter to either
>>> >> > > USB or 120V/60mA loop. But I cannot remember
>>> where to find the
>>> >> > > info. You would have to get back to 5-level
>>> before you can do a
>>> >> current
>>> >> > > loop set up, question is how to do that?? Any
>>> ideas where I
>>> >> should look
>>> >> > > ??
>>> >> > > Chuck
>>> >> > > N7UVZ
>>> >> > >
>>> >> > > ----- Original Message -----
>>> >> > > *From:* W2HX <mailto:w2hx at w2hx.com
>>> <mailto:w2hx at w2hx.com> <mailto:w2hx at w2hx.com
>>> <mailto:w2hx at w2hx.com>>>
>>> >> > > *To:* greenkeys
>>> <mailto:greenkeys at mailman.qth.net <mailto:greenkeys at mailman.qth.net>
>>> >> <mailto:greenkeys at mailman.qth.net
>>> <mailto:greenkeys at mailman.qth.net>>>
>>> >> > > *Sent:* Saturday, April 06, 2019 4:36 PM
>>> >> > > *Subject:* [GreenKeys] this looks neat. Is it
>>> usable in anyway?
>>> >> > >
>>> >> > > Price isn't bad either!
>>> >> > >
>>> >> > > https://www.ebay.com/itm/283209301740
>>> >> > >
>>> >> > >
>>> >> > > Anyone familiar with this? especially our
>>> european friends.
>>> >> > >
>>> >> > >
