[GreenKeys] 28KSR - AN/UCG-47 wiring

[John Lawson]

Greetings GreenKeys!


I'm starting work on the Mod 28 - it's an AN/UGC-47  Navy unit and was
overhauled in '88, then surplussed, went to a friend, came back to me,
and now I'll get the old girl printing once again.


So I have a Newby Question:  Where are the outside-world connections in
this unit?  I've plowed (am plowing) thru the various manuals on-line,
and I know the terminal blocks are in the upper rear of the cabinet
under the cover in the 'standard' mod 28 - but in mine of course there

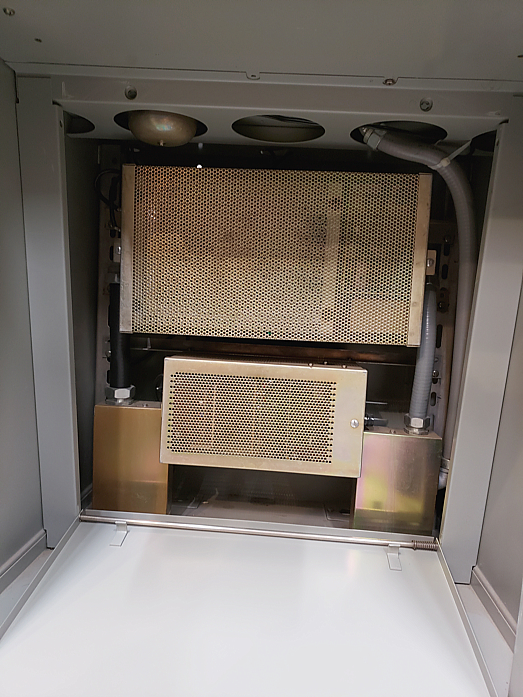

is no LESU up there, and a lot of Stuff in the pedestal including what
looks like two junction boxes near the base.


So far everything seems free and clear when testing the machine by hand,
the felts are still oily and there is no binding or drag.


I've enclosed a couple of photos for better reference....


Thanks in advance for any help!


Cheers

John KB6SCO

Carson City NV

-------------- next part --------------
A non-text attachment was scrubbed...
Name: UGC47 Pedestal.jpg
Type: image/jpeg
Size: 463839 bytes
Desc: UGC47 Pedestal.jpg
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20190803/2a2c8d72/attachment-0003.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...

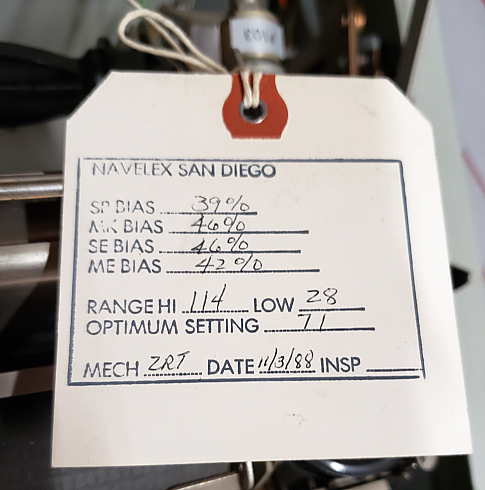

Name: UGC47 Tag.jpg
Type: image/jpeg
Size: 265131 bytes
Desc: UGC47 Tag.jpg
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20190803/2a2c8d72/attachment-0004.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...

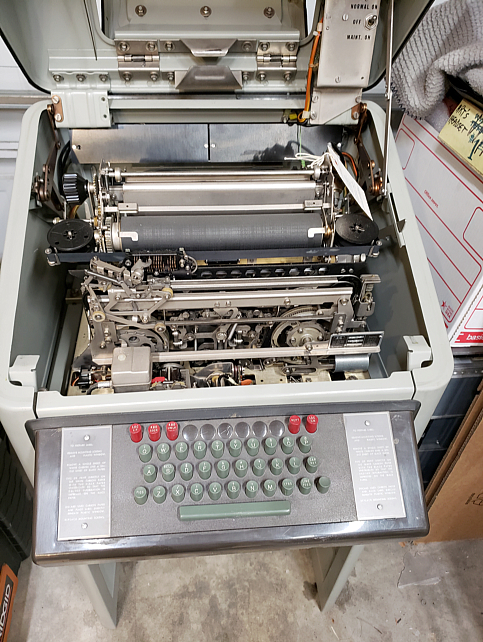

Name: AN UGC-47 open.jpg
