Hi Steve,

Yes....all ready to go with the config file loaded into Simplicity
Studio to map 600-301 baud to 45, and request 400mA from USB port.

I can't wait to get these going!!

Thanks,

Bruce


On 14/03/2018 3:48 AM, Steve Garrison wrote:
>
> Bruce have you looked into the CP2102 configuration utility from
> Silicon Labs, Simplicity Studio?
>
> And the CP2102 comes with a right angle header strip already installed
> that will have to be removed before mating with the main board.
>
> Steve G./N4TTY
>
> *From:*greenkeys-bounces at mailman.qth.net
> <greenkeys-bounces at mailman.qth.net> *On Behalf Of *Bruce Phillips
> *Sent:* Tuesday, March 13, 2018 2:10 AM
> *To:* GreenKeys at mailman.qth.net
> *Subject:* [GreenKeys] John Nagle's USB <-> 60 mA loop board - Update
>
> Hi All,
>
> The first of John Nagle's USB - 60mA Loop Driver is almost complete. I
> am just waiting for switches and the CP2102 breakout boards to arrive.

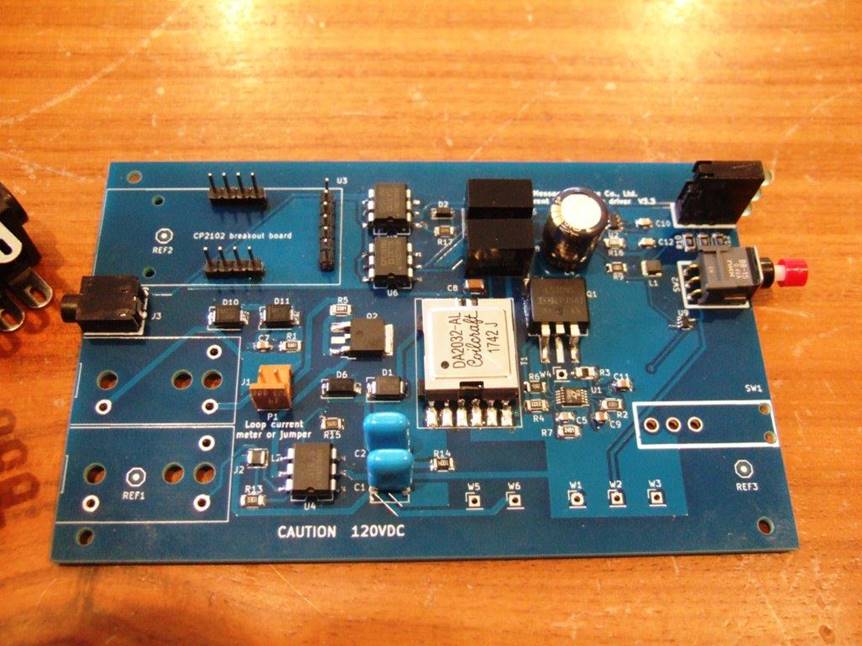

> Here are some photo of the build so far:
>
>
>
> Once I have this completed and tested I will finish off the design for
> the case, and start screen printing the panels.
>
> Regards,
> Bruce
>



---
