Bruce have you looked into the CP2102 configuration utility from Silicon Labs, Simplicity Studio?



And the CP2102 comes with a right angle header strip already installed that will have to be removed before mating with the main board.



Steve G./N4TTY



From: greenkeys-bounces at mailman.qth.net <greenkeys-bounces at mailman.qth.net> On Behalf Of Bruce Phillips
Sent: Tuesday, March 13, 2018 2:10 AM
To: GreenKeys at mailman.qth.net
Subject: [GreenKeys] John Nagle's USB <-> 60 mA loop board - Update



Hi All,

The first of John Nagle's USB - 60mA Loop Driver is almost complete. I am just waiting for switches and the CP2102 breakout boards to arrive.

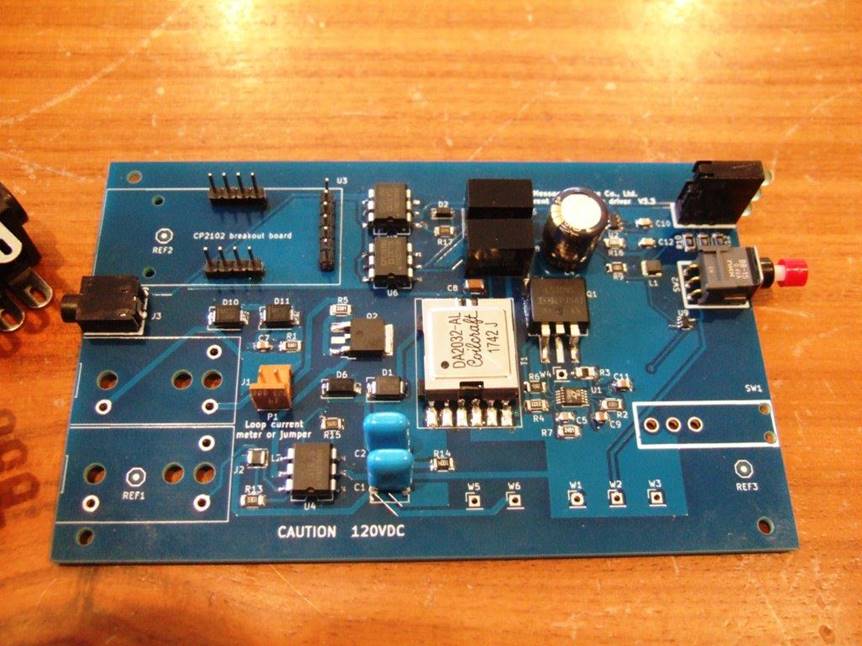

Here are some photo of the build so far:



Once I have this completed and tested I will finish off the design for the case, and start screen printing the panels.

Regards,
Bruce
