[GreenKeys] Perforator question...

[Eric & Jia Bigham]

Hi,

Ok, goofy question.  What power hookup requirements does a perforator need on a Model 19?  Right now, on the DC side - I have the positive lead hooked up to terminal 42.  41 is strapped to 34, then 32 out to the negative side of the AC/DC transformer.  The perforator worked last year - the first thing I had fixed… now it’s being a dud.  Last year, seems like I remember having the DC side hooked up to terminals 24 and 25, but can’t remember.  I checked out the circuits on the keyboard (except for the capacitors - I checked it out the same last year) and everything checks out, except the counter magnets measure a bit over 300 ohms each instead of 500 ohms each.  Could this be the problem (also, do I have the correct terminals hoked up for DC)?  Don’t know what’s changed from last year until now, except for very minor things (mostly).  A bit frustrating, now that everything else is working.  I’ll check the wiring on the main unit next, depending…..

Thanks!

Sincerely,
Eric
-.- ----- .--- .. .-



-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20180216/7d34754b/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...

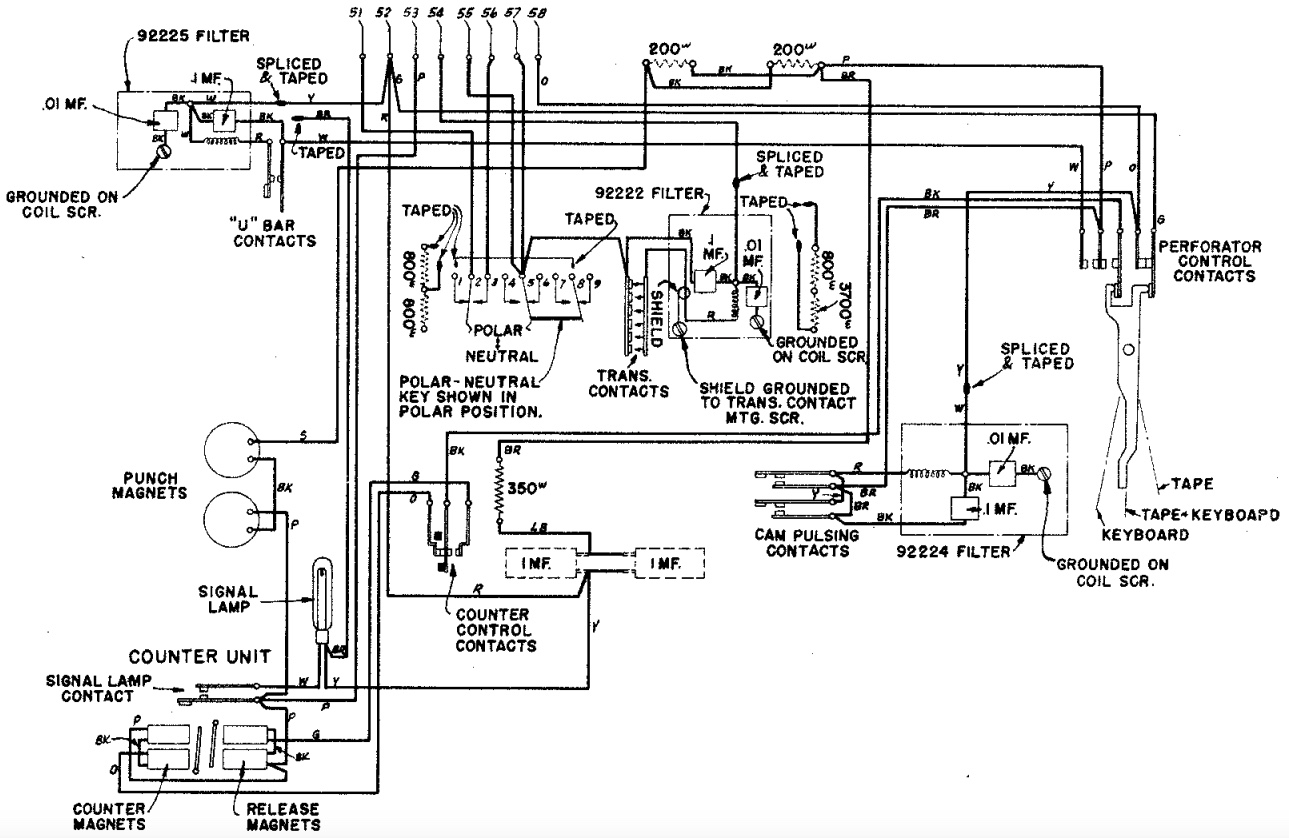

Name: diagram.jpeg
Type: image/jpeg
Size: 294308 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20180216/7d34754b/attachment-0003.jpeg>
-------------- next part --------------
A non-text attachment was scrubbed...

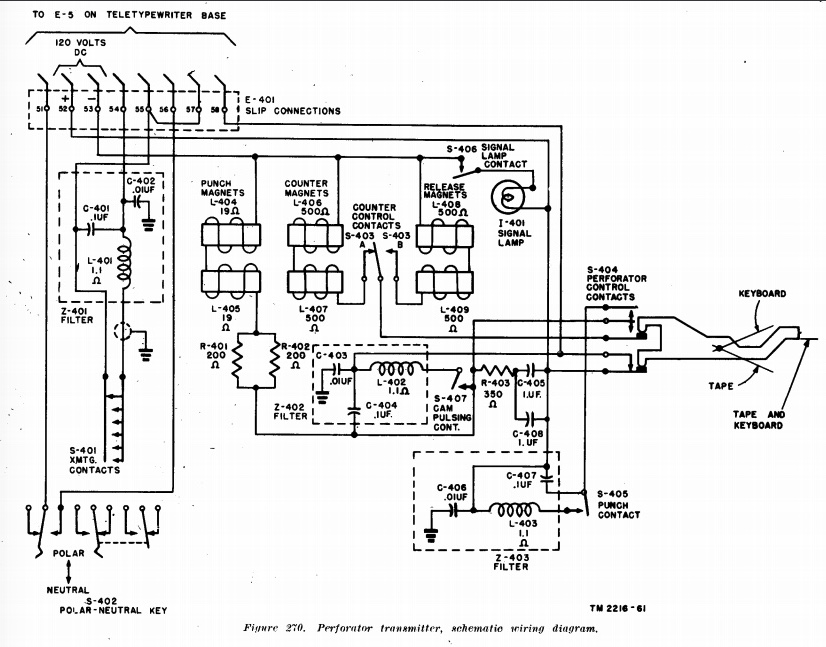

Name: diagram2.jpeg
Type: image/jpeg
Size: 165155 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20180216/7d34754b/attachment-0004.jpeg>
-------------- next part --------------
A non-text attachment was scrubbed...

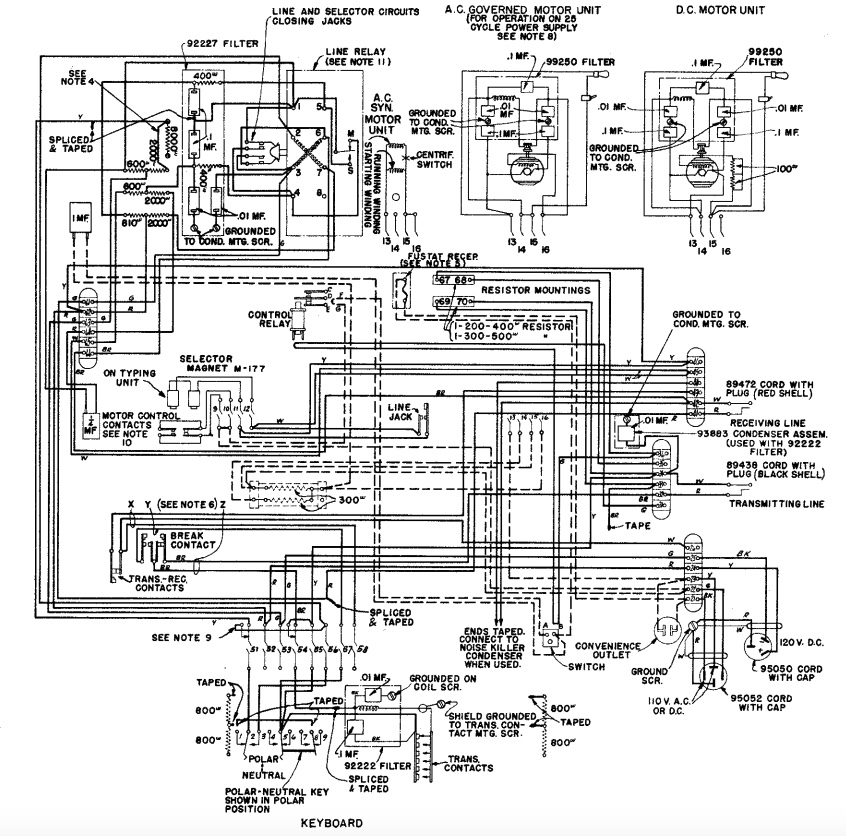

Name: diagram3.jpeg
