[GreenKeys] mystery equipment - AN/TGC-1

[Duncan Brown]

I tried embedding a picture, but it got stripped out.  Here it is again
as an attachment

Duncan

On 07-Sep-17 20:47, Duncan Brown wrote:
> Nick,
>

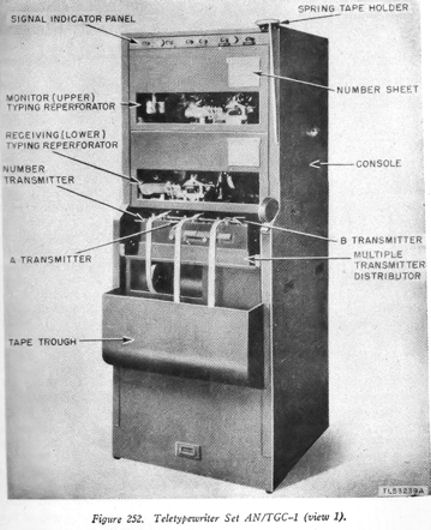

> Looks like an AN/TGC-1:
>
>
>  ( http://www.navy-radio.com/tty-relay-equip.htm), which normally had
> two M14 reperfs & tape winders mounted on two shelves above the tape
> reader. But in this case, there is an electronics chassis mounted in
> place of the top M14. I don't know what the extra chassis would have
> been for - probably some special Navy mod!
>
> Duncan
> K2OEQ
>
> On 07-Sep-17 17:08, Nick England wrote:
>> I have two 1956 photos of NAVCOMMSTA San Diego that show a triple TD
>> and some other equipment as part of a Fleet Broadcast Operating Console.
>>
>> There something on the middle shelf of the rack above the TDs, but I
>> can't figure out what. One view clearly shows a tape reel, presumably
>> for winding tape after it runs through the TD, but the object on the
>> right side of the shelf eludes me. Any guesses?
>>
>> The photos (actually, photos of photos) are here
>> http://www.navy-radio.com/commsta/sd/IMG_0049.JPG
>> http://www.navy-radio.com/commsta/sd/IMG_0039.JPG
>>
>> More photos from the NAVCOMMSTA historical exhibit are here -
>> http://www.navy-radio.com/commsta/san-diego.htm
>>
>> Cheers,
>> Nick England K4NYW
>> www.navy-radio.com <http://www.navy-radio.com>
>>
>
>
> ---
> This email has been checked for viruses by Avast antivirus software.
> https://www.avast.com/antivirus
>
> ______________________________________________________________
> GreenKeys mailing list
> Home: http://mailman.qth.net/mailman/listinfo/greenkeys
> Help: http://mailman.qth.net/mmfaq.htm
> Post: mailto:GreenKeys at mailman.qth.net
>
> 2002-to-present greenkeys archive:
> http://mailman.qth.net/pipermail/greenkeys/
> 1998-to-2001 greenkeys archive:
> http://mailman.qth.net/archive/greenkeys/greenkeys.html
> Randy Guttery's 2001-to-2009 GreenKeys Search Tool:
> http://comcents.com/tty/greenkeyssearch.html
>
> This list hosted by: http://www.qsl.net
> Please help support this email list: http://www.qsl.net/donate.html

-------------- next part --------------
A non-text attachment was scrubbed...
Name: AN_TGC-1.jpg
Type: image/jpeg
Size: 41593 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20170907/ff8c9cd6/attachment.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...

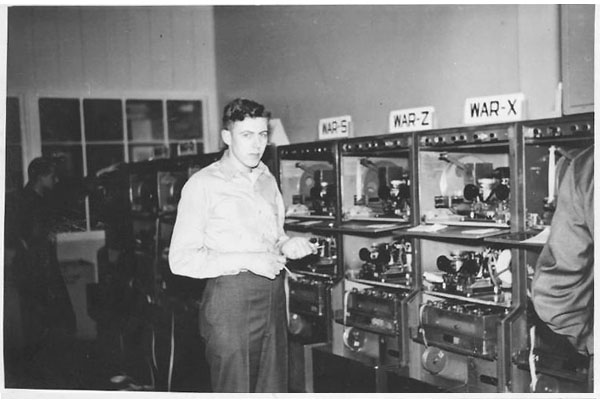

Name: 7774th Sig Bn - AN-TGC-1 tape relay facility RUFP.jpg
Type: image/jpeg
Size: 53071 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20170907/ff8c9cd6/attachment-0001.jpg>
