[GreenKeys] Armature lock LEVER IN THE OVAL HOLE SWITCHES AND MORE!!

[COURYHOUSE at aol.com]

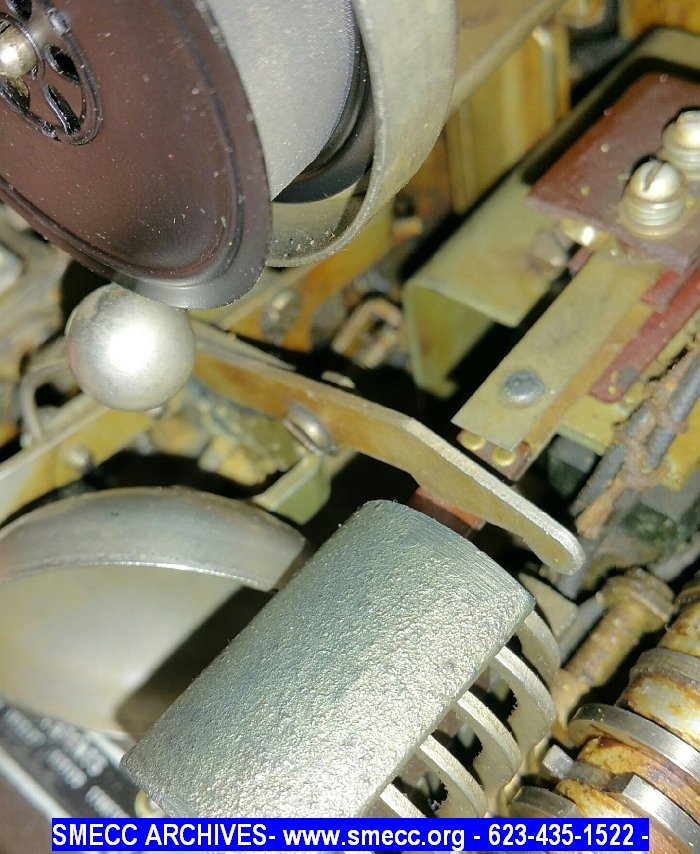

ok in the embedded   photo inline  above there   is  switch that  opens and
closes too!
the lever aside   from  clamping bell clapper also continues  backwards
towards rear of  the
printer mech also...   thing  looks pretty   clean  I have not even dusted
it  yet  or anything!

This is so different  from what I have seen  before I am  almost  ready
to consult the ancient Alien Theorists   <<grin!!>


Ed#



In a message dated 11/27/2016 3:53:35 P.M. US Mountain Standard Time,
greenkeys at mailman.qth.net writes:

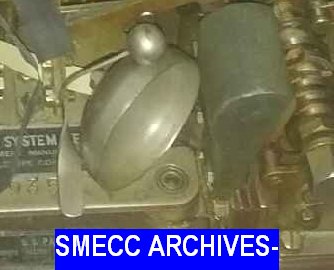

TOTAL WEIRDNESS ON THE LEVER IN THE OVAL HOLE!
It also seems to lock and unlock the  clapper ball thing  to  the  surface
of the front mounted bell on my bell 14

(((side issue  weird  silver maybe solid state relay  replacement   dos not
 unplug.)))))


In a message dated 11/25/2016 4:35:17 P.M. US Mountain Standard Time,
nagle at animats.com writes:

On  11/25/2016 09:54 AM, greenkeys-request at mailman.qth.net wrote:
>  Message: 7 Date: Thu, 24 Nov 2016 23:11:58 -0500 From: Ed Sharpe
>  <couryhouse at aol.com> Subject: Re: [GreenKeys] Western Union 2B  Parts
>  Needed
>
> weird thing. the lever is  referred.. to as an armature lock in John
> Nagle's...parts  book...  is it for locking letters only or  figs
>  only.

The "armature lock" mentioned in the parts book  is part of the
selector.   See page 4 of Bulletin 1028, right  column.

http://www.aetherltd.com/public/model14manuals/1028B-Iss2-Feb36.pdf

Also  see, on the next page, that there are two different cam sleeve
options,  one with an extra cam track for the armature lock.

The armature lock  is a cam-driven mechanism which locks the
armature in place after it has  received one bit of MARK or SPACE.
If you've worked on a selector, you  know that for parts of
the cycle, the armature won't move. That's the  armature lock.
I didn't know there were machines without an armature  lock,
but apparently there were early Model 14 machines without  it.
All Model 15 machines, as far as I know, have it.

That has nothing to do with LTRS/FIGS.  Bulletin  1028
from 1936 doesn't seem to show the front-mounted bell  option,
whatever that bell does.  There are normally two bells
on  a Model 14 - one for BELL, and one for out of tape.
The second one is  mounted on the base near the right rear.

Many of  the manual files at

http://www.aetherltd.com/manuals.html

are  from Jim Haynes; soma are from Bitsavers.  Recently, I resized  some
of the Model 14 files that were displaying as tiny pages. All the  .PDF
files should now be properly sized and printable on letter sized  paper.

John  Nagle
