TOTAL WEIRDNESS ON THE LEVER IN THE OVAL HOLE!

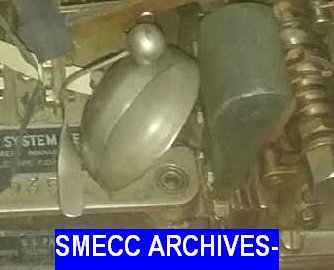

It also seems to lock and unlock the  clapper ball thing  to  the  surface
of the front mounted bell on my bell 14

(((side issue  weird  silver maybe solid state relay  replacement   dos not
 unplug.)))))


In a message dated 11/25/2016 4:35:17 P.M. US Mountain Standard Time,
nagle at animats.com writes:

On  11/25/2016 09:54 AM, greenkeys-request at mailman.qth.net wrote:
> Message:  7 Date: Thu, 24 Nov 2016 23:11:58 -0500 From: Ed Sharpe
>  <couryhouse at aol.com> Subject: Re: [GreenKeys] Western Union 2B  Parts
>  Needed
>
> weird thing. the lever is  referred.. to as an armature lock in John
> Nagle's...parts  book...  is it for locking letters only or  figs
>  only.

The "armature lock" mentioned in the parts book is  part of the
selector.   See page 4 of Bulletin 1028, right  column.

http://www.aetherltd.com/public/model14manuals/1028B-Iss2-Feb36.pdf

Also  see, on the next page, that there are two different cam sleeve
options, one  with an extra cam track for the armature lock.

The armature lock is a  cam-driven mechanism which locks the
armature in place after it has  received one bit of MARK or SPACE.
If you've worked on a selector, you know  that for parts of
the cycle, the armature won't move. That's the armature  lock.
I didn't know there were machines without an armature lock,
but  apparently there were early Model 14 machines without it.
All Model 15  machines, as far as I know, have it.

That has  nothing to do with LTRS/FIGS.  Bulletin 1028
from 1936 doesn't seem to  show the front-mounted bell option,
whatever that bell does.  There  are normally two bells
on a Model 14 - one for BELL, and one for out of  tape.
The second one is mounted on the base near the right  rear.

Many of the manual files  at

http://www.aetherltd.com/manuals.html

are from Jim Haynes;  soma are from Bitsavers.  Recently, I resized some
of the Model 14  files that were displaying as tiny pages. All the .PDF
files should now be  properly sized and printable on letter sized paper.

John  Nagle
