[GreenKeys] Mystery UCC...

[Julien Scrofani]

Hi all,

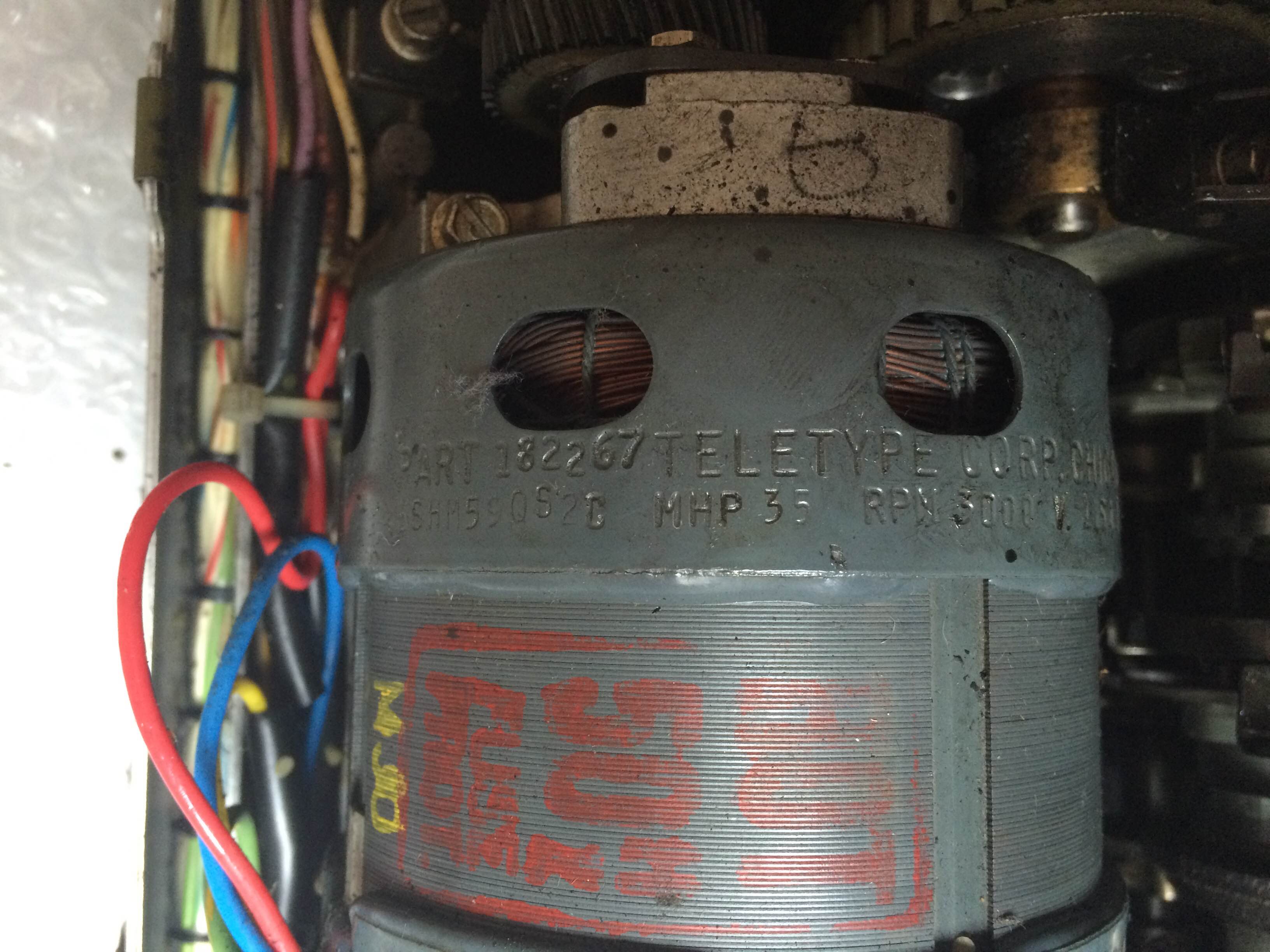

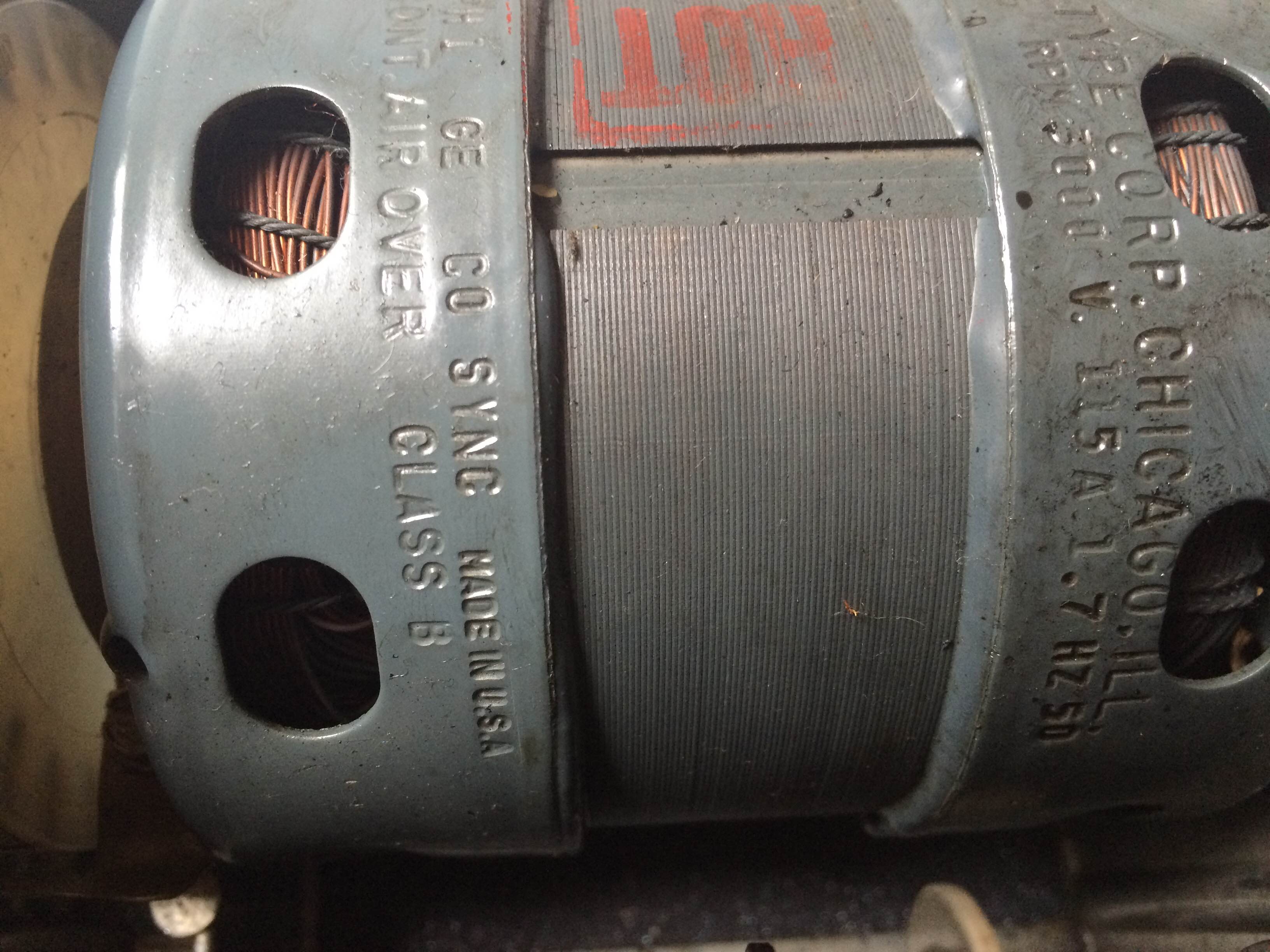

Indeed, my motor is a 115v, 50hz (182267) (see pics)
On the fan, I found this : GA-305-100-1.

Ken, you are talking about the I.D. Tag on the UCC, I don't know where to
look. Do i have to disassemble the UCC to find it ?

Julien



Le samedi 11 juin 2016, Henning Treumann <df3oe.henning at googlemail.com> a
écrit :

> Voltage / mains standard in France is:
>
> 230 volts 50 Hertz (same as Germany)
>
> But here in Germany I have never seen a model 33 with a 220/230 V motor.
> All machines had a transformer (mostly installed in the base) to run the
> 115 v
> motor from European 220/230V.
>
> Henning
>
> www.teleprinter.net
> i-Telex: 55571 and 92612
>
>
>
>
> 2016-06-10 23:41 GMT+02:00 <teletypeparts at comcast.net
> <javascript:_e(%7B%7D,'cvml','teletypeparts at comcast.net');>>:
>
>> Ken and Julien,
>>

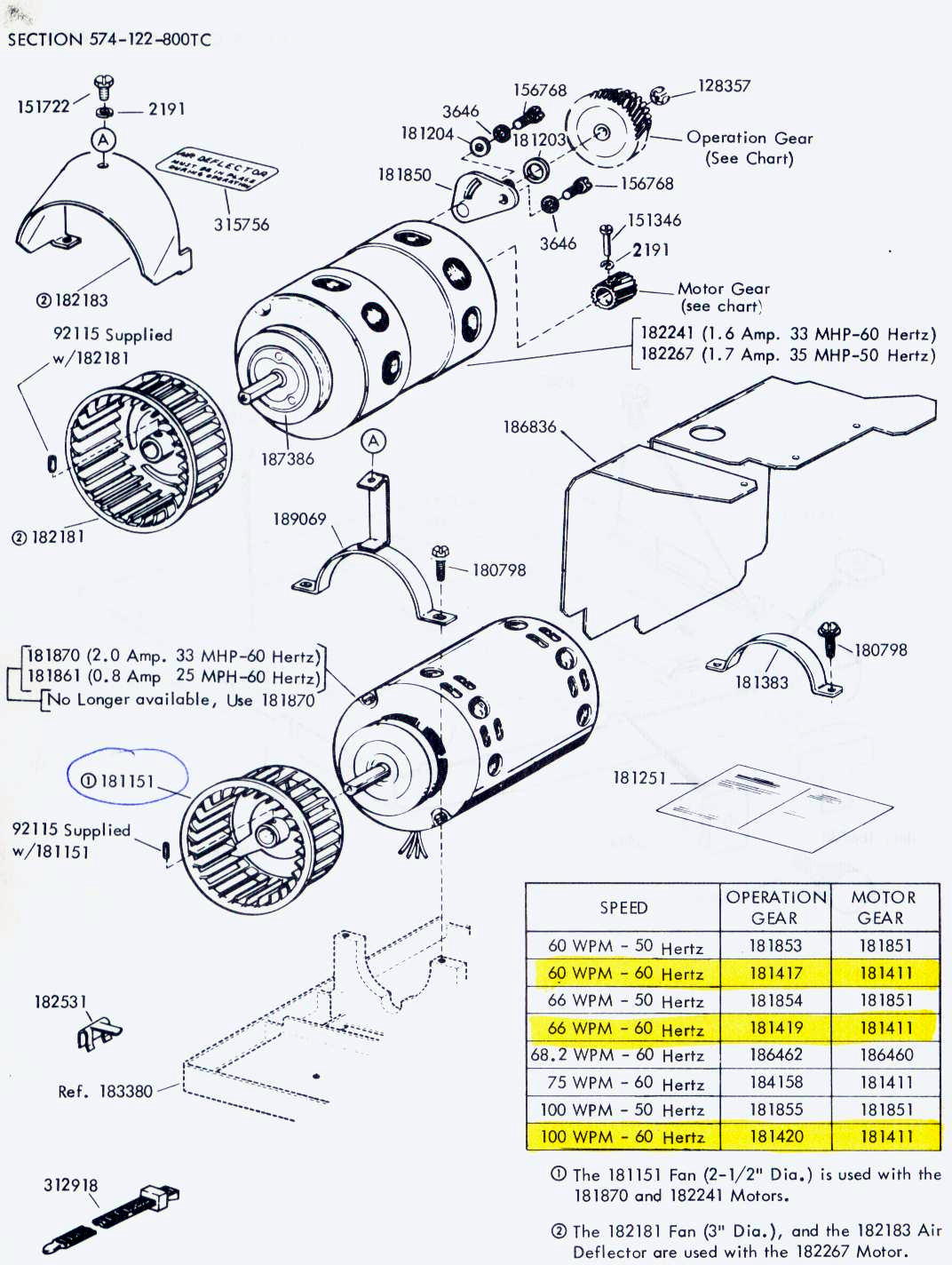

>> This chart will help identify what motor you have by identifying the
>> motor speed gear.  It will have the part number on the outside of the
>> gear.  You might also be able to see the actual motor number on your 33 too.
>>
>> I have highlighted the US numbers in the chart.
>>
>> What is the standard voltage and frequency in France?
>>
>> 120VAC and 60HZ is the US standard.
>>
>> Best regards,
>>
>> Wayne
>>
>>
>> ______________________________________________________________
>> GreenKeys mailing list
>> Home: http://mailman.qth.net/mailman/listinfo/greenkeys
>> Help: http://mailman.qth.net/mmfaq.htm
>> Post: mailto:GreenKeys at mailman.qth.net
>> <javascript:_e(%7B%7D,'cvml','GreenKeys at mailman.qth.net');>
>>
>> 2002-to-present greenkeys archive:
>> http://mailman.qth.net/pipermail/greenkeys/
>> 1998-to-2001 <http://mailman.qth.net/pipermail/greenkeys/1998-to-2001>
>> greenkeys archive:
>> http://mailman.qth.net/archive/greenkeys/greenkeys.html
>> Randy Guttery's 2001-to-2009 GreenKeys Search Tool:
>> http://comcents.com/tty/greenkeyssearch.html
>>
>> This list hosted by: http://www.qsl.net
>> Please help support this email list: http://www.qsl.net/donate.html
>> Message delivered to df3oe.henning at googlemail.com
>> <javascript:_e(%7B%7D,'cvml','df3oe.henning at googlemail.com');>
>>
>
>
